Nissan Rogue Service Manual: Wiring diagram

CHASSIS CONTROL

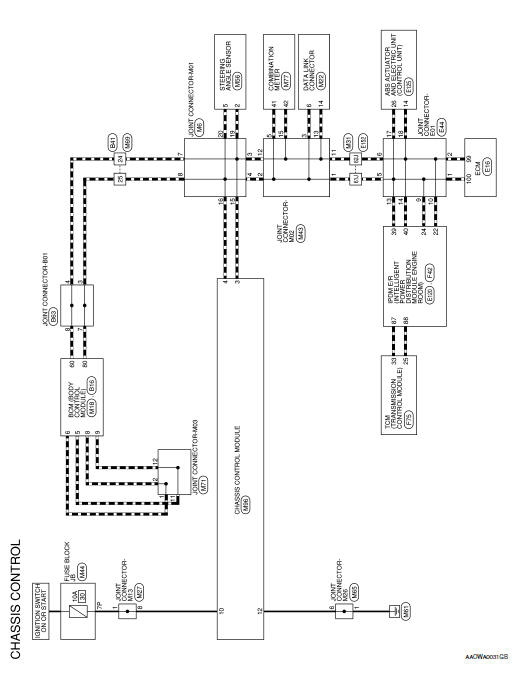

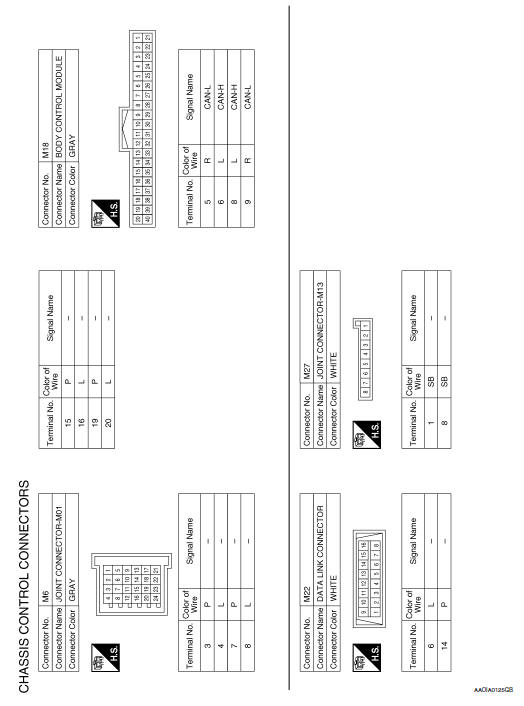

Wiring Diagram

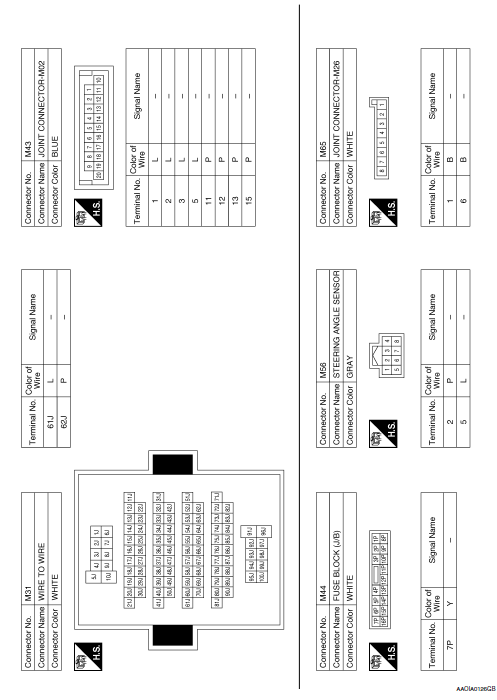

Wiring Diagram

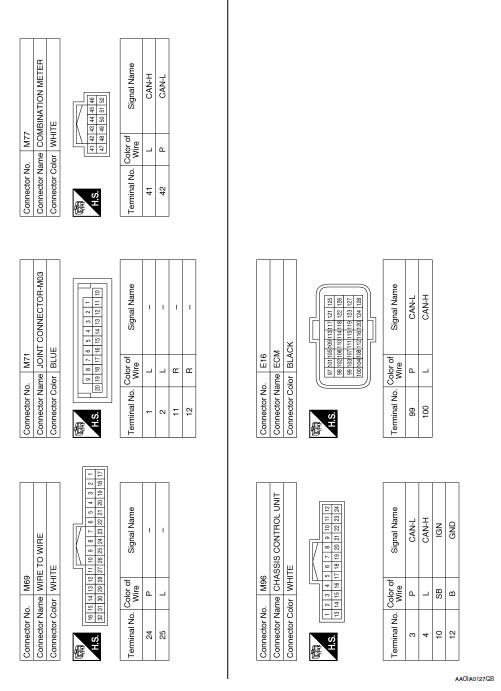

Wiring Diagram

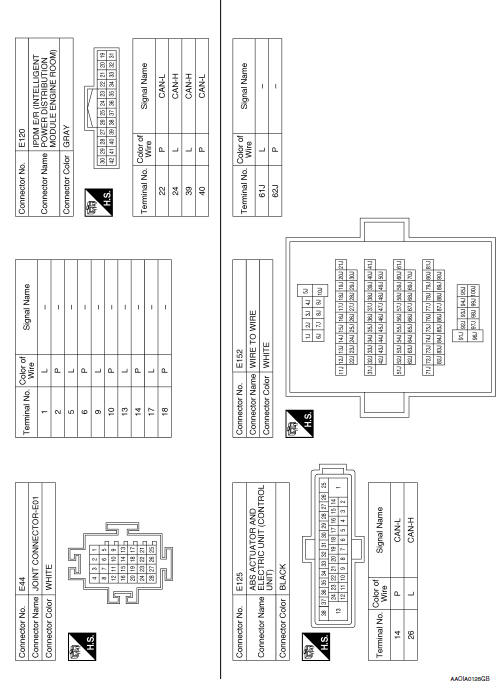

Wiring Diagram

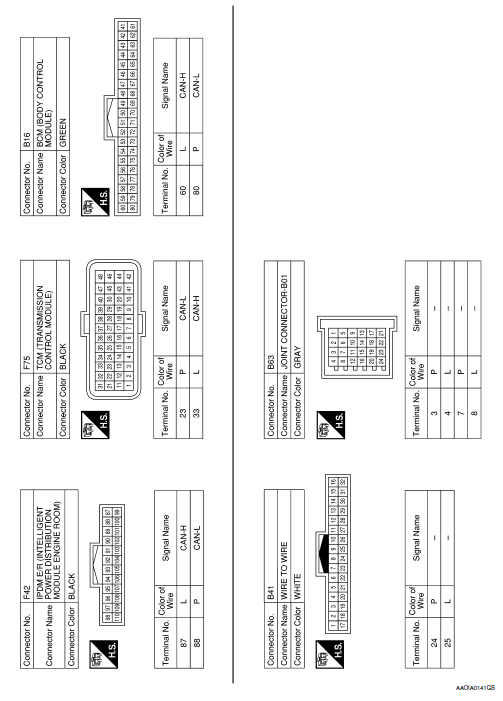

Wiring Diagram

Wiring Diagram

Wiring Diagram

ECU diagnosis information
CHASSIS CONTROL MODULE Reference Value CONSULT DATA MONITOR STANDARD VALUE NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable ...

Basic inspection
DIAGNOSIS AND REPAIR WORK FLOW Work Flow DETAILED FLOW 1.INTERVIEW FROM THE CUSTOMER Clarify customer complaints before inspection. First of all, perform an interview utilizing DAS-202, "Di ...
