Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Ventilators

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide / Monitor, heater, air conditioner, audio and phone systems / Ventilators

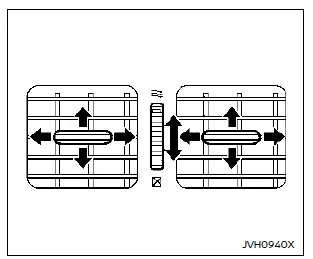

Center ventilators

Nissan Rogue. Ventilators
Right side

Open or close the ventilators by sliding the control to either direction (if so equipped).

Adjust the airflow direction by moving the center knob up, down, left, or right until the desired airflow is achieved.

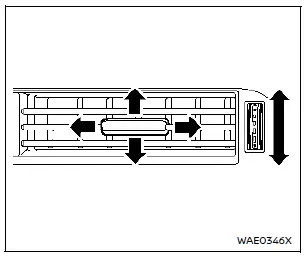

Side ventilators

Nissan Rogue. Ventilators
Right side

Open or close the side ventilators by sliding the control left or right.

Adjust airflow direction by moving the center knob (up/down, left/right) to your preferred position.

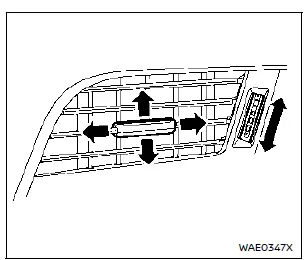

Rear ventilators

Nissan Rogue. Ventilators

Open or close the rear ventilators by moving the side control to either direction.

— Indicates that the ventilators are open. Slide the control toward this symbol to open them.

— Indicates that the ventilators are closed. Slide the control toward this symbol to close them.

Adjust the airflow direction by moving the center knob to direct air up, down, left, or right.
