Model Variation

MODEL VARIATION

Destination Body Engine Axle Handle Transmission Grade Model
USA 4–Door Wagon KR15DDT FWD LHD M-CVT S TDNALBW‐UUA
SV TDNALDW‐UUA
SL TDNALEW‐UUA
PLATINUM TDNALGW‐UUA
AWD S TDNNLBW‐UUA
SV TDNNLDW‐UUA
SV Rock Creek®
SL TDNNLEW‐UUA
PLATINUM TDNNLGW‐UUA
Canada FWD S TDNALBW‐UNA
AWD S TDNNLBW‐UNA
SV TDNNLDW‐UNA
SL TDNNLEW‐UNA
PLATINUM TDNNLGW‐UNA

Prefix and suffix designations:

Position Character Qualifier Definition
1 T Body type T: 4-door wagon
2 DN Engine DN: KR15DDT
3
4 A Axle

A: FWD

N: AWD
5 L Drive L: LH
6 B Grade B: S grade
D: SV grade
E: SL grade
G: PLATINUM grade
7 W Transmission W: MCVT

8 T33 Model T33: Rogue
9
10
11 U Intake U: Turbo
12 N Zone N: Canada
U: 50-State
13 A Equipment A: Standard Equipment
14 XXXXX Option Codes Option Codes
15
16
17
18

Information About Identification or Model Code

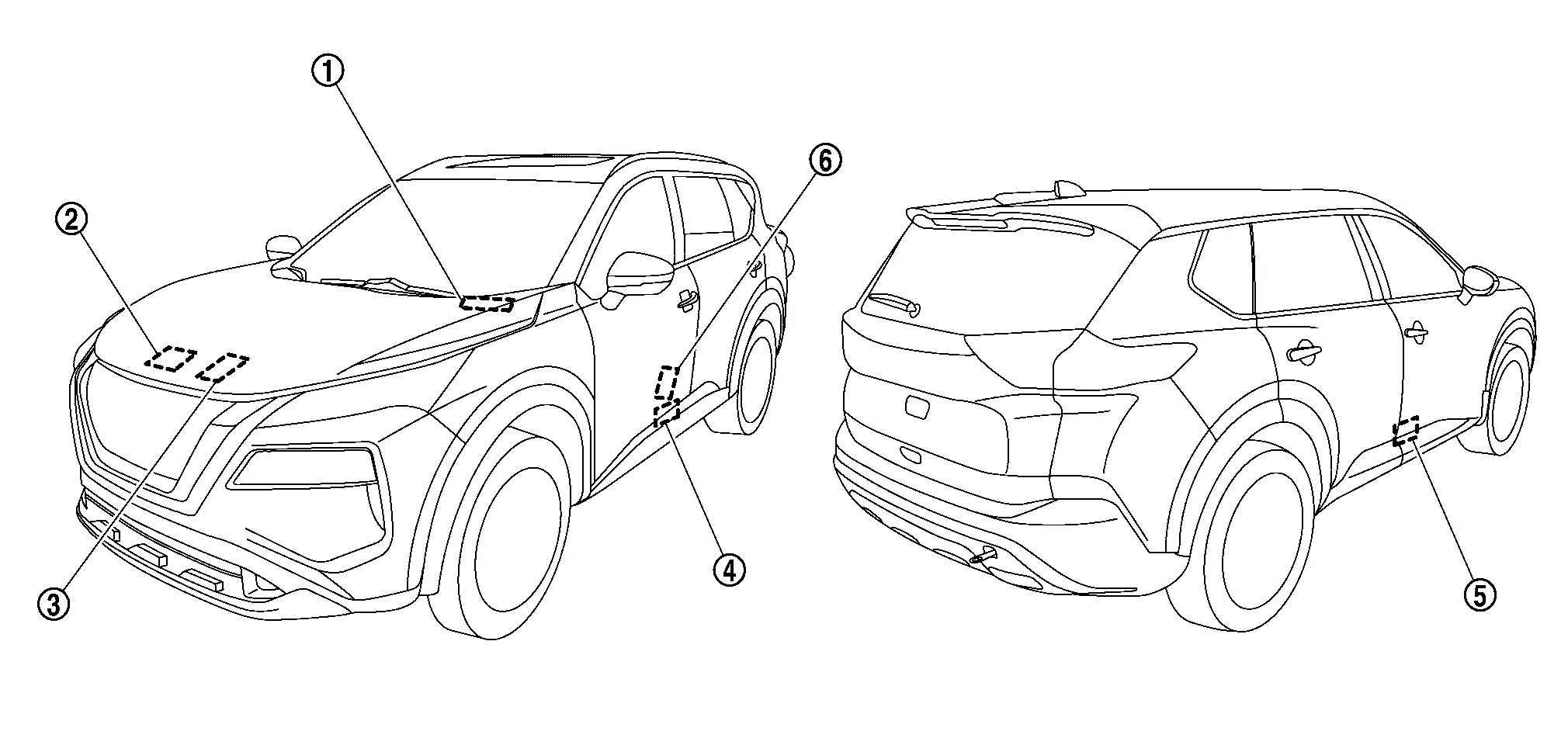

IDENTIFICATION NUMBER

1. Nissan Ariya Vehicle identification number (VIN) plate 2. Air conditioner specification label 3. Emission control information label
4.

  • FMVSS certification label

    (For USA )

  • CMVSS certification label

    (For Canada)

 5.

Nissan Ariya Vehicle identification number

(Chassis number) 		6. Tire and loading information label

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

Position Character Qualifier Definition
1 5N1 Manufacturer 5N1: Nissan MPV [NNA, Inc.]
2
3 JN8:Japan produced multi-purpose Nissan Ariya vehicle
4 B Engine type B: KR15DDT
5 T3 Model code T3: T33 (Rogue)
6
7 A Body type A: 4 Dr. Wagon + Grade S
B: 4 Dr. Wagon + Grade SV
C: 4 Dr. Wagon + Grade SL
D: 4 Dr. Wagon + Grade PLATINUM
8 A Restraint system A: (5 seating capacity) FWD 4-WHL ABS, Class C (Driver and Passenger): 3-Point Manual Belts, Frontal Air Bags, Side Air Bags, Curtain Side Air Bags and Knee Air Bags; (2nd Row Outboard): 3-Point Manual Belts, Side Air Bags and Curtain Side Air Bags; (2nd Row Center): 3-Point Manual Belt.
B: (5 seating capacity) AWD 4-WHL ABS, Class C (Driver and Passenger): 3-Point Manual Belts, Frontal Air Bags, Side Air Bags, Curtain Side Air Bags and Knee Air Bags; (2nd Row Outboard): 3-Point Manual Belts, Side Air Bags and Curtain Side Air Bags; (2nd Row Center): 3-Point Manual Belt.
C: (5 seating capacity) FWD 4-WHL ABS, Class C (Driver and Passenger): 3-Point Manual Belts, Frontal Air Bags, Side Air Bags, Curtain Side Air Bags, Knee Air Bags and Far Side Air Bag; (2nd Row Outboard): 3-Point Manual Belts, Side Air Bags and Curtain Side Air Bags; (2nd Row Center): 3-Point Manual Belt.
D: (5 seating capacity) AWD 4-WHL ABS, Class C (Driver and Passenger): 3-Point Manual Belts, Frontal Air Bags, Side Air Bags, Curtain Side Air Bags, Knee Air Bags and Far Side Air Bag; (2nd Row Outboard): 3-Point Manual Belts, Side Air Bags and Curtain Side Air Bags; (2nd Row Center): 3-Point Manual Belt.
9 * Check digit (0 to 9 or X) The code for the check digit is determined by a mathematical computation.
10 S Model year S: 2025
11 C Manufacturing plant C: USA production (Smyrna, Tennessee)
W: Japan production (Kyushu)
12 XXXXXX Nissan Ariya Vehicle serial number Chassis number
13
14
15
16
17

CERTIFICATION LABEL

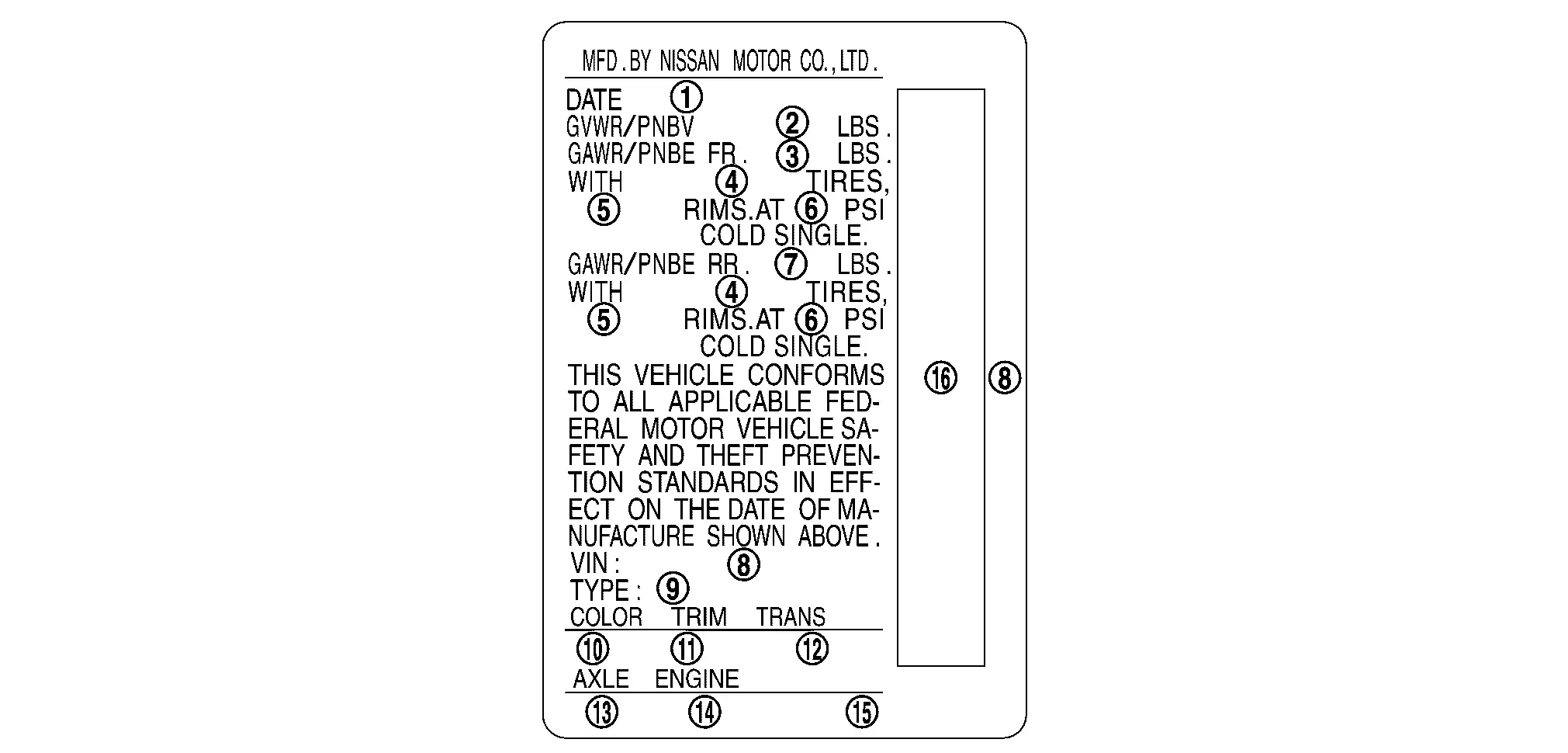

For USA

1. MFR Month / Year 2. Gross Nissan Ariya vehicle weight rating 3. Gross axle weight rating (Front)
4. Tire size 5. Wheel size 6. Tire inflation pressure
7. Gross axle weight rating (Rear) 8. Nissan Ariya Vehicle identification number 9. Verification model code
10. Body color number 11. Trim color number 12. Transmission type
13. Axle type 14. Engine type 15. Engine displacement
16. VIN bar code — — — —

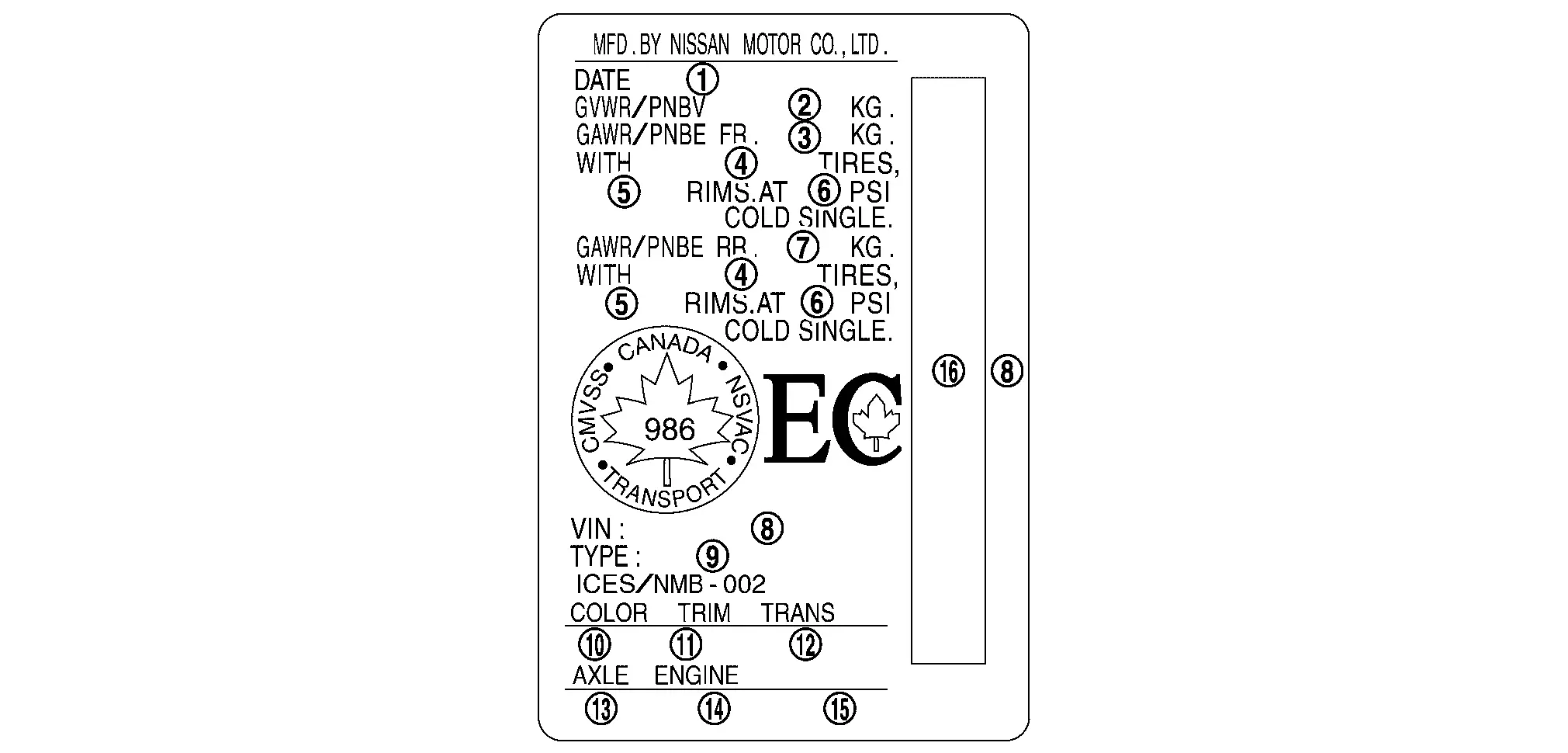

For Canada

1. MFR Month / Year 2. Gross Nissan Ariya vehicle weight rating 3. Gross axle weight rating (Front)
4. Tire size 5. Wheel size 6. Tire inflation pressure
7. Gross axle weight rating (Rear) 8. Nissan Ariya Vehicle identification number 9. Verification model code
10. Body color number 11. Trim color number 12. Transmission type
13. Axle type 14. Engine type 15. Engine displacement
16. VIN bar code — — — —

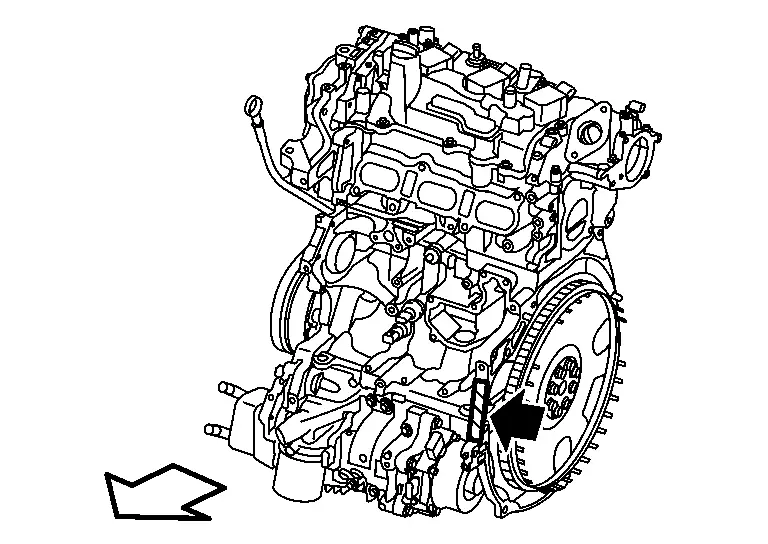

ENGINE SERIAL NUMBER (CYLINDER BLOCK)

KR15DDT

: Nissan Ariya Vehicle front
:Engine serial number

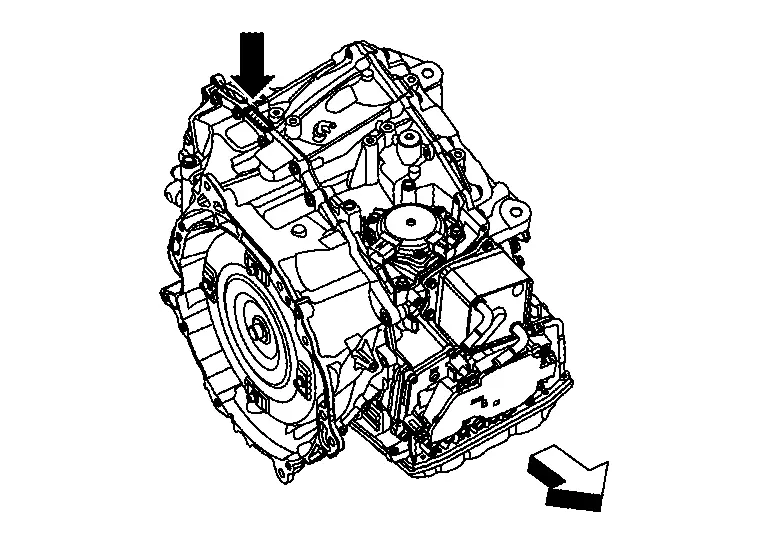

CVT NUMBER

GE0F14A

: Nissan Ariya Vehicle front

Dimensions

Unit: in (mm)

Overall length Model without license plate 184.3 (4,680)
Model with license plate 184.4 (4,685)
Model with license plate (Rock Creek®) 184.6 (4,690)
Overall width 72.4 (1,840)
Overall height 67.9 (1,725)
Front tread 62.4 (1,585)
Rear tread 62.6 (1,590)
Wheelbase 106.5 (2,705)

Wheels Tires

Unit: in (mm)

Road wheel/offset Tire size
Conventional 17 × 7.5J Aluminum Alloy/1.57 (40) 235/65R17
18 × 7.5J Aluminum Alloy/1.57 (40) 235/60R18
19 × 7.5J Aluminum Alloy/1.57 (40) 235/55R19
Spare 17 x 4T Steel/1.18 (30) T155/80D17
T165/90D17
18 x 4T Steel/1.18 (30) T155/90D18

CONSULT CHECKING SYSTEM

CONSULT CHECKING SYSTEM - WITH TYPE A METER

Refer to Wiring Diagram.

CONSULT CHECKING SYSTEM - WITH TYPE B METER

Refer to Wiring Diagram.
