Nissan Rogue (T33) 2021-Present Service Manual: Type B :: Symptom Diagnosis

Nissan Rogue (T33) 2021-Present Service Manual / Driver Information & Multimedia :: Meter, Warning Lamp & Indicator / Type B :: Symptom Diagnosis

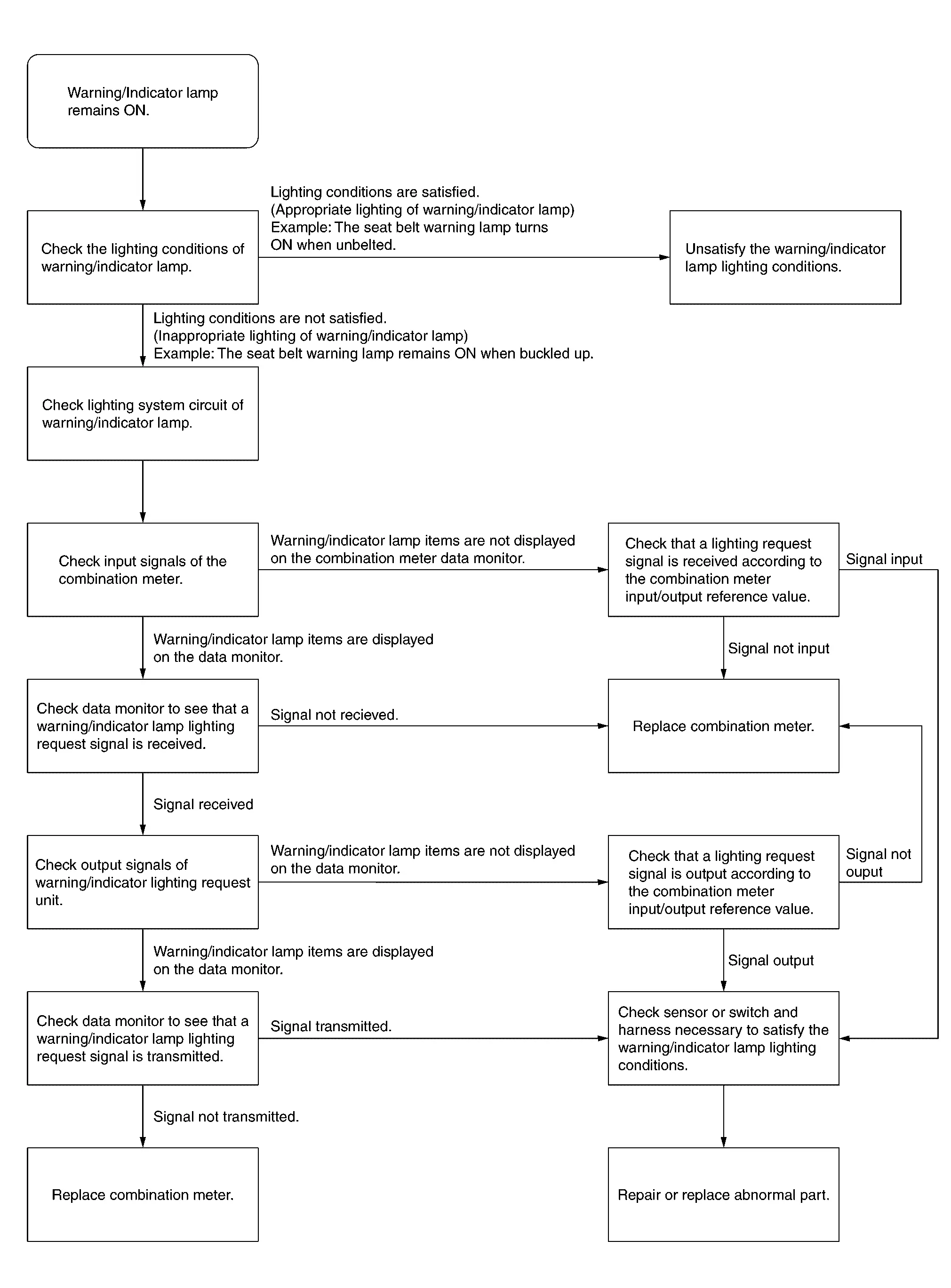

Warning/indicator Lamp Remains on

Work Flow

The Fuel Gauge Indicator Does Not Operate

Description

Fuel gauge will not indicate from a certain position.

Diagnosis Procedure

CONDUCTING THE COMBINATION METER SELF-DIAGNOSIS MODE

Perform the self-diagnosis mode of combination meter, and then check that the fuel gauge operates normally. Refer to On Board Diagnosis Function.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Replace the combination meter. Refer to Removal and Installation.

CHECK FLOAT INTERFERENCE

Check that the float arm interferes with or binds to other components in the fuel tank.

Is the inspection result normal?

YES>>

GO TO 3.

NO>>

Repair or replace malfunctioning part.

CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT

Check the fuel level sensor signal circuit. Refer to Component Function Check.

Is the inspection result normal?

YES>>

Refer to Intermittent Incident.

NO>>

Repair or replace malfunctioning parts.

The Steering Switches Are Inoperative

Description

If any of the following malfunctions is found for the steering switch operation.

  • All switches are inoperative

  • The specified switch cannot be operated

Diagnosis Procedure

CHECK STEERING SWITCH SIGNAL A CIRCUIT

Check the steering switch signal A circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace malfunctioning parts.

CHECK STEERING SWITCH SIGNAL B CIRCUIT

Check the steering switch signal B circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace combination meter. Refer to Removal and Installation.

NO>>

Repair or replace malfunctioning parts.

The Illumination Control Switch Is Inoperative

Description

If any of the following malfunctions is found for the illumination control switch operation.

  • All switches are inoperative

  • The specified switch cannot be operated

Diagnosis Procedure

CHECK ILLUMINATION CONTROL SWITCH SIGNAL CIRCUIT

Check the illumination control switch signal circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair harness or connector.

CHECK ILLUMINATION CONTROL SWITCH

Perform a unit check for the illumination control switch. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace combination meter. Refer to Removal and Installation.

NG>>

Replace illumination control switch. Refer to Removal and Installation.

The Meter Speaker Does Not Sound

Description

The meter speaker does not sound.

Diagnosis Procedure

CHECK COMBINATION METER INPUT SIGNAL

CONSULT

  1. Select “Buzzer” in “Data monitor” mode of “M&A”.

  2. Check that the function operates normally according to the following conditions:

    Monitor item Condition Status
    Buzzer Under the condition of buzzer input ON
    Except above OFF

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Replace BCM. Refer to Removal and Installation.

CHECK METER SPEAKER CIRCUIT

Check meter speaker circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

Replace combination meter. Refer to Removal and Installation.

NO>>

Repair or replace malfunctioning parts.

The Ambient Temperature Display Is Incorrect

Description

  • The displayed ambient air temperature is higher than the actual temperature.

  • The displayed ambient air temperature is lower than the actual temperature.

Diagnosis Procedure

NOTE:

Check that the symptom is not applicable to the normal operating condition before starting diagnosis. Refer to Description.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Check the ambient sensor signal circuit. Refer to Diagnosis Procedure.

Is the inspection result normal?

YES>>

GO TO 2.

NO>>

Repair or replace malfunctioning parts.

CHECK AMBIENT SENSOR

Check the ambient sensor. Refer to Component Inspection.

Is the inspection result normal?

YES>>

Replace combination meter. Refer to Removal and Installation.

NO>>

Replace ambient sensor. Refer to Removal and Installation.

Normal Operating Condition

Information Display

Description

DISTANCE TO EMPTY

The calculated distance to empty may differ from the actual distance to empty if the refueling amount is approximately 4 (7/8 Imp gal) or less. This is because the refuel control (moves the fuel gauge needle quicker than normal judging that the driver is refueling the Nissan Ariya vehicle) is not performing.

AMBIENT TEMPERATURE

The displayed ambient temperature on the information display may differ from the actual temperature because it is a corrected value calculated from the ambient sensor signal by the combination meter. Refer to System Description for details on the correction process.
