Nissan Rogue (T33) 2021-Present Service Manual: Torque Converter and Converter Housing Oil Seal

Nissan Rogue (T33) 2021-Present Service Manual / Transmission & Driveline :: Transaxle & Transmission / Cvt: Ge0f14a :: Unit Disassembly and Assembly / Torque Converter and Converter Housing Oil Seal

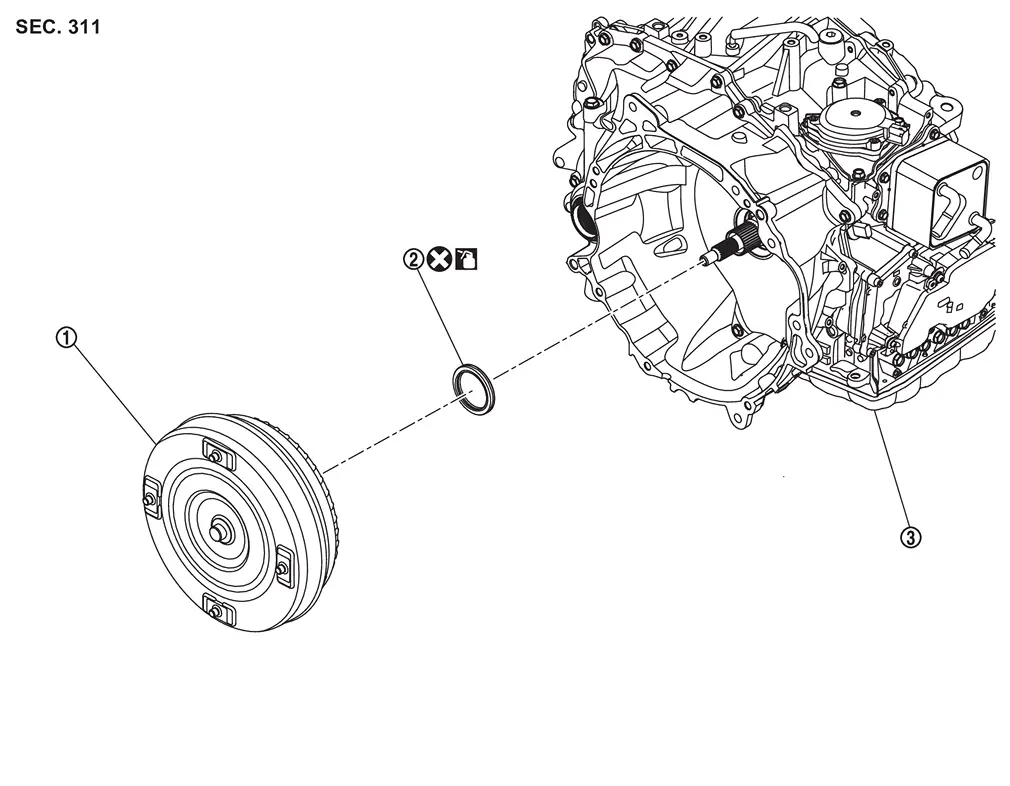

Exploded View

1. Torque converter 2. Converter housing oil seal 3. Transaxle assembly
: Always replace after every disassembly.
: Apply CVT fluid

Disassembly

Remove transaxle assembly. Refer to Removal and Installation.

Remove torque converter from transaxle assembly.

CAUTION:

Never damage the bushing on the inside of torque converter sleeve when removing torque converter.

Remove converter housing oil seal using suitable tool.

CAUTION:

Be careful not to scratch converter housing.

Assembly

Note the following and assembly in the reverse order of disassembly.

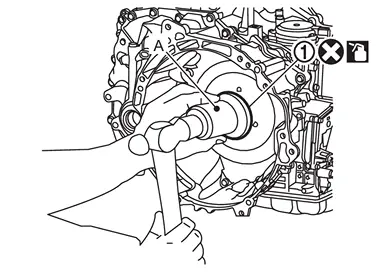

  • Install the new converter housing oil seal evenly using the torque converter seal installer (SST : NI-53062) (A)

    B : 1.0 ± 0.5 mm (0.04 ± 0.020 in)

    CAUTION:

    • Never reuse converter housing oil seal.

    • Apply CVT fluid to the oil seal lip and around the oil seal.

    • Converter housing oil seal pulling direction is used as the reference.

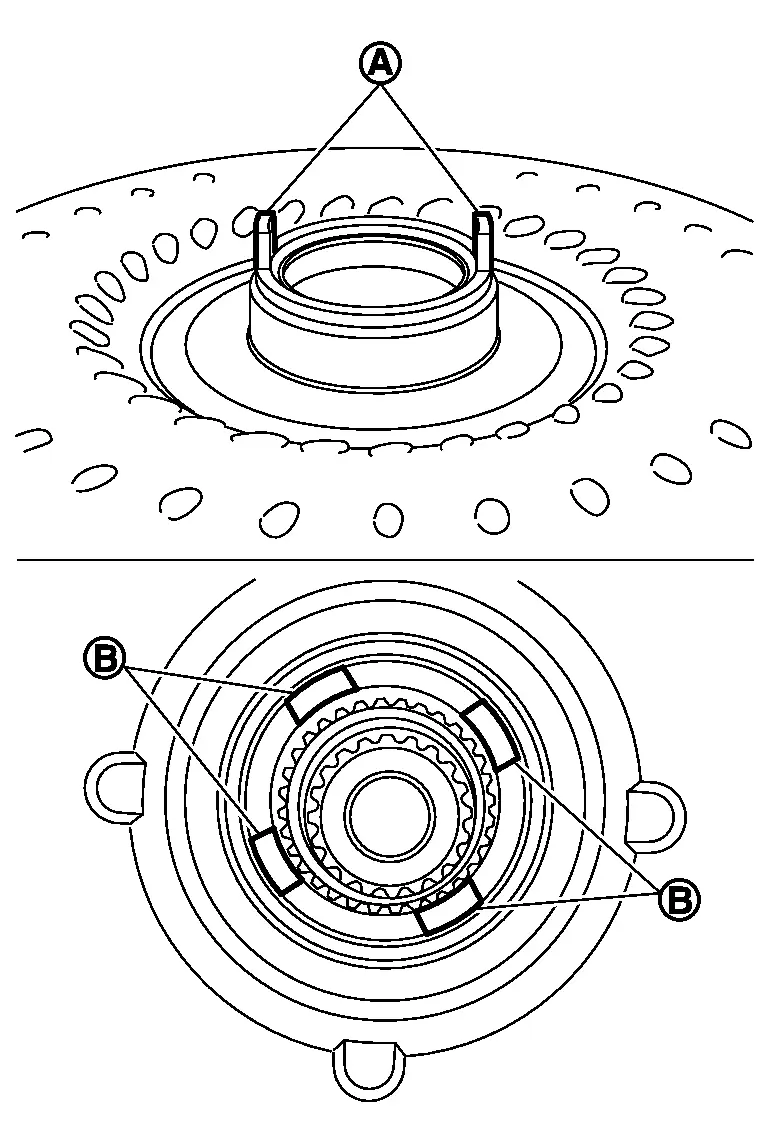

  • Attach the pawl (A) of the torque converter to the drive sprocket hole (B) on the transaxle assembly side.

    CAUTION:

    • Rotate the torque converter for installing torque converter.

    • Never damage the bushing inside the torque converter sleeve when installing the converter housing oil seal.

  • After completing installation, check for CVT fluid leaks and CVT fluid level. Refer to Inspection.

Inspection

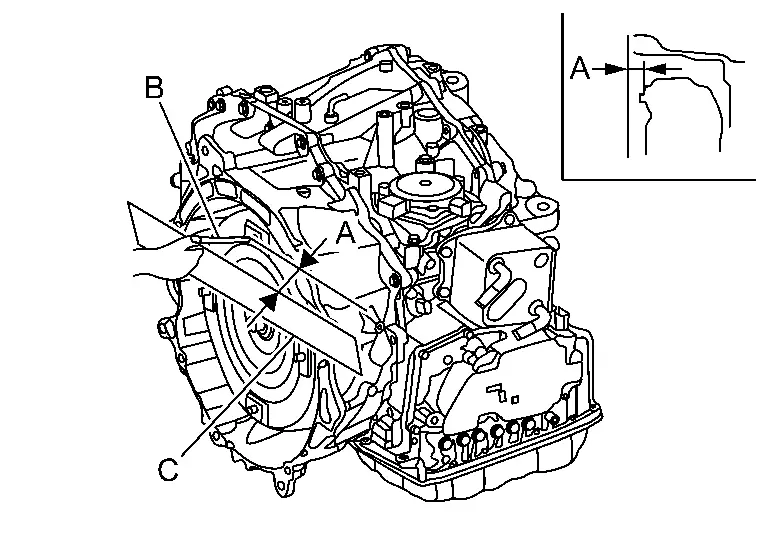

After inserting a torque converter to the CVT, check dimension (A) with in the reference value limit.

B : Scale
C : Straightedge
Dimension (A) : Refer to Torque Converter.
