Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: System maintenance
Basic information

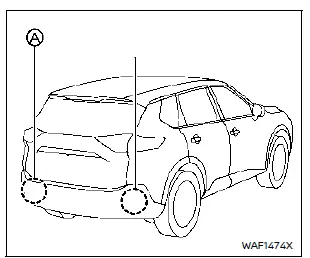

The two radar sensors A for the Blind Spot Warning system are installed near the rear bumper of the Nissan Rogue.
Keep the area around the sensors clean to ensure proper system performance.
The radar sensors may be temporarily blocked by ambient conditions such as splashing water, heavy mist, or fog.
Blockage can also occur if ice, frost, or dirt accumulates in front of the sensors.
Inspect the rear bumper area regularly and remove anything that may obstruct the radar sensors.
Do not apply stickers (including transparent films), install accessories, or add paint near the radar sensor zones.
Avoid striking or damaging the area around the sensors, as this may affect system operation.
If the bumper or sensor area is damaged due to a collision, have the system inspected by a NISSAN dealer.
Precautions when repairing the bumper
Because the radar sensors are installed inside the bumper, use caution when performing repairs in this area.
The radar unit works by sending signals outward and measuring the reflections, so materials or repairs in front of the sensor could interfere with its accuracy.
WARNING
Improper bumper repairs—such as using incompatible filler materials, applying thick paint layers, or altering the structure—can weaken the radar signal or block it entirely. This may cause the sensor to detect objects incorrectly, increasing the risk of an accident and resulting in serious injury.
If bumper repair is needed, it is recommended to have the work performed at a certified NISSAN service center.
Radio frequency statement
NOTE:
FCC Notice (USA):
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation.
CAUTION TO USERS:
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
For Canada:
This device contains licence-exempt transmitter(s)/receiver(s) complying with Innovation, Science and Economic Development Canada RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference; and (2) this device must accept any interference, including interference that may cause undesired operation.
System malfunction
If a malfunction occurs, the BSW system turns off, its indicator lights up, and “Malfunction See Owner’s Manual” appears on the display.
When BSW stops functioning, the I-BSI and RCTA systems a ...
