Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: System maintenance

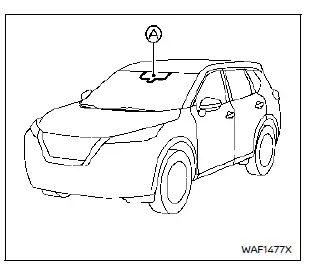

The forward camera for the Nissan Rogue I-LI system is mounted above the inside mirror. For reliable system operation:
- Keep the windshield clean and free of dirt or condensation.
- Avoid placing stickers or accessories near the camera area.
- Do not place reflective items on the dashboard, as bright reflections may interfere with camera detection.
- Avoid applying force, touching, or removing screws on the camera assembly. If damage occurs, have it inspected by a Nissan dealer.
System malfunction
If a malfunction occurs, the I-LI system turns off automatically, the orange indicator illuminates, and a chime sounds. The message “Malfunction See Owner’s Manual” appears.
Action to take:
Saf ...
Other materials:
Preparation
Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Tool number
(TechMate No.)
Tool name
Description
—
(J-49286)
Drift and Pull gauge
Measuring drift and pull
Commercial Service Tool
Tool name
...
Wheel
Inspection
WHEEL
Check tires for wear and improper inflation.
Check wheels for deformation, cracks and other damage. If deformed,
remove wheel and check wheel
runout.
Remove tire from wheel and mount wheel on a balancer machine.
Set dial indicator as shown.
&n ...
ID registration procedure
Description
This procedure must be performed after replacement of a tire pressure sensor
or BCM.
Work Procedure
TPMS ID registration can be performed using one of the following procedures:
Transmitter Activation tool [KV48105501 (J-45295-A)] with CONSULT
(preferred method)
...
