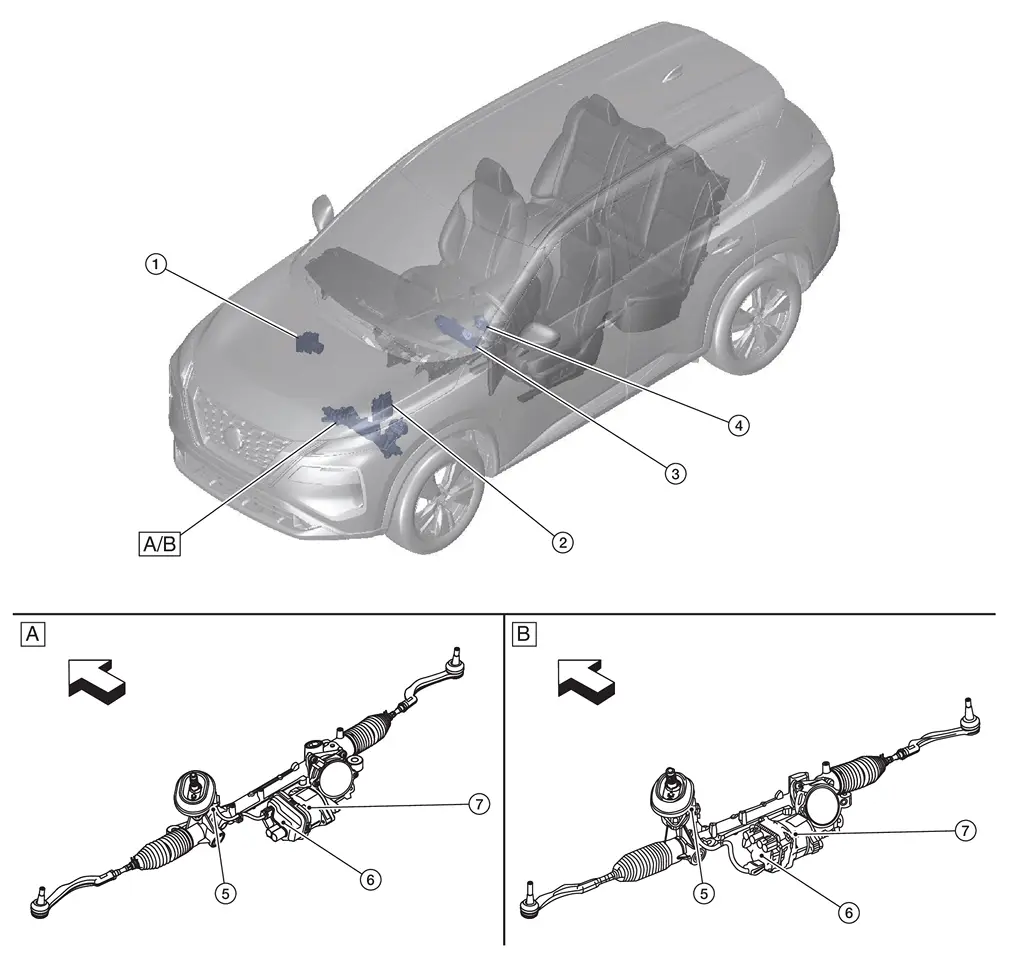

Component Parts Location

A. Steering gear assembly (Without ProPILOT Assist 2.1) B. Steering gear assembly (With ProPILOT Assist 2.1)
No.Component
1.

ABS actuator and electric unit (control unit)

Refer to Component Parts Location for detailed installation location.
2.

ECM

Refer to Component Parts Location for detailed installation location.
3.

Combination meter

Refer to Component Parts Location (Type A), Component Parts Location (Type B) for detailed installation location.
4.

Steering angle sensor

Refer to Component Parts Location for detailed installation location.
5. Power steering torque sensor
6. Power steering control module
7. EPS motor

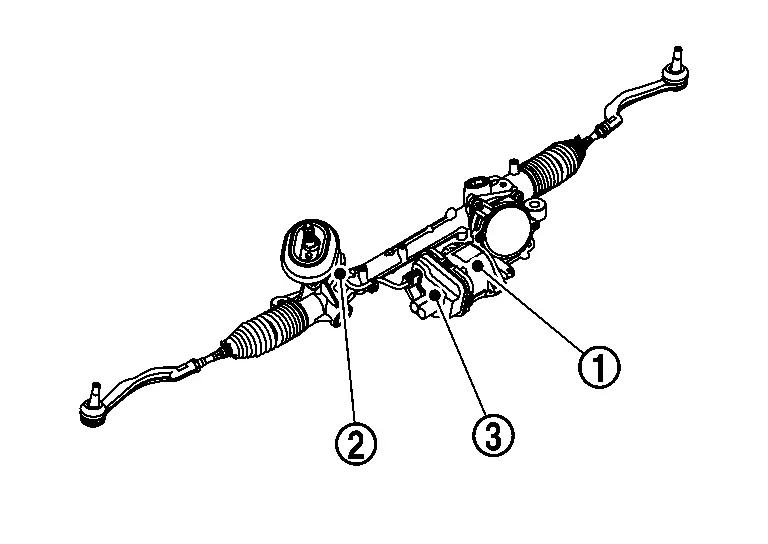

STEERING GEAR ASSEMBLY

The steering gear assembly is primarily composed of EPS motor , power steering torque sensor and power steering control module .

POWER STEERING CONTROL MODULE

  • By receiving steering angle sensor signal ,vehicle speed signal and power steering torque sensor signal, the power steering control module calculates the current of motor drive according to the driving conditions. The power steering control module controls the EPS motor.

  • Diagnoses can be performed via CONSULT.

POWER STEERING TORQUE SENSOR

Power steering torque sensor detects the steering torque, and transmit the signal to power steering control module.

EPS MOTOR

The EPS motor provides the assist torque according to the signal from power steering control module.
