Nissan Rogue (T33) 2021-Present Service Manual: Service Data and Specifications (sds)

Nissan Rogue (T33) 2021-Present Service Manual / Steering :: Steering System / Service Data and Specifications (sds)

Steering Wheel

Item Standard
Steering wheel axial end play 0 mm (0 in)
Steering wheel play on the outer circumference 0 – 35 mm (0 – 1.38 in)
Steering wheel turning force 34 N (3.5 kg-f, 7.6 lb-f) or less

Steering Angle

Item Standard
Inner wheel Minimum 35° 10′ (35.17°)
Nominal 38° 10′ (38.17°)
Maximum 39° 10′ (39.16°)
Outer wheel 31° 55′ (31.92°)

Steering Column

Item Standard
Steering column length minimum (Telescope in)* 374.8 mm (14.76 in)
Tilt operating range* ± 25 mm (0.98 in)
Telescopic operating range* ± 30 mm (1.18 in)
Rotating torque 0 – 0.4 N·m (0 – 0.04 kg-m, 0 – 4 in-lb)

*: For measuring position, Refer to Inspection.

Steering Gear and Linkage

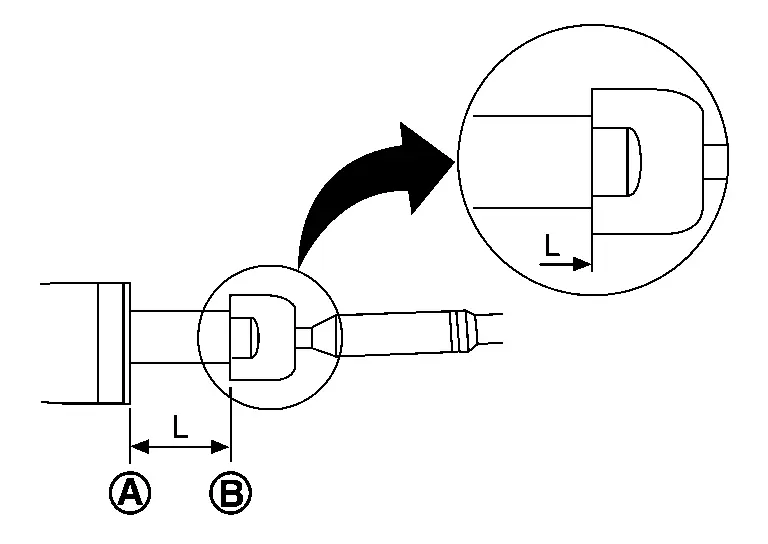

RACK STROKE
Item Standard

: Gear housing end

: Inner socket end
Rack stroke neutral position (L) 37.6 mm (1.480 in)
Rack stroke (Full stroke) 156 mm (6.14 in)
OUTER SOCKET AND INNER SOCKET
Item Standard
Outer socket ball joint Swing force* (Spring balance measurement) 4.0 – 41.0 N (0.41 – 4.18 kg-f, 0.90 – 9.21 lb-f)
Ball joint rotating torque 0.3 – 3.5 N·m (0.03 – 0.36 kg-m, 3 – 31 in-lb)
Axial end play 0.5 mm (0.020 in) or less
Inner socket ball joint Swing force* (Spring balance measurement) 3.0 – 33.0 N (0.31 – 3.36 kg-f, 0.68 – 7.41 lb-f)
Ball joint rotating torque 0.5 – 7.0 N·m (0.05 – 0.71 kg-m, 4 – 62 in-lb)
Axial end play 0.2 mm (0.008 in) or less
Inner socket length 55.7 mm (2.193 in)

*: For measuring position, Refer to Inspection.
