Nissan Rogue (T33) 2021-Present Service Manual: Secondary Speed Sensor

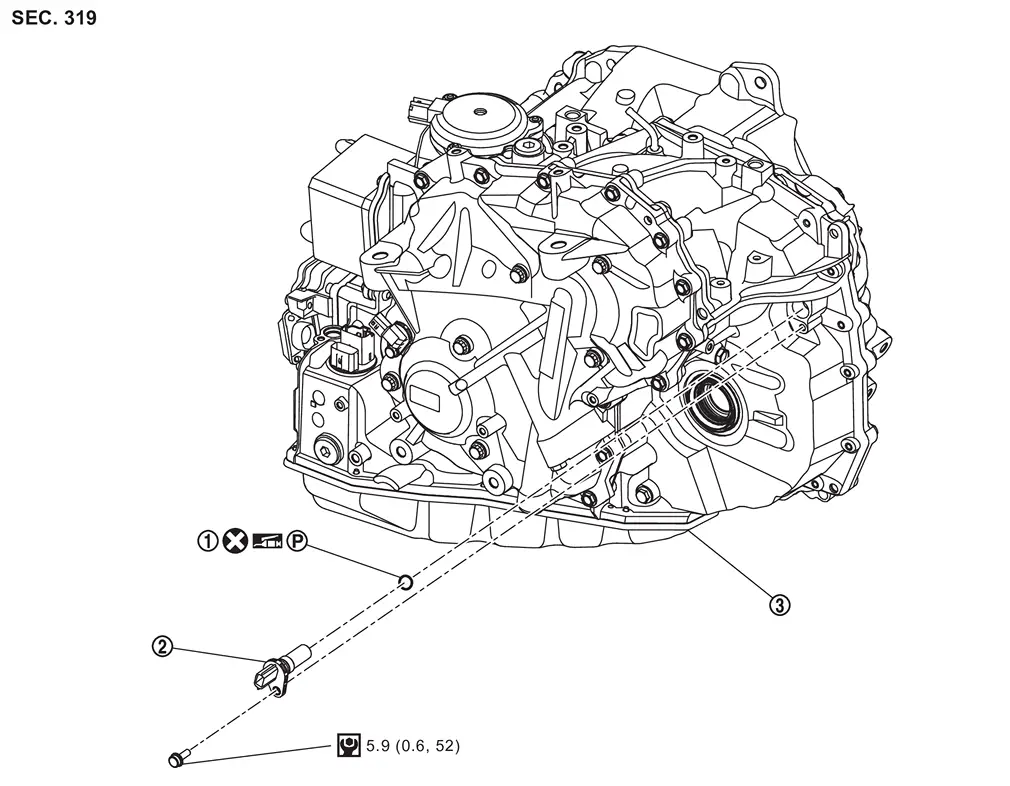

Exploded View
| 1. | O-ring | 2. | Secondary speed sensor | 3. | Transaxle assembly |
: N·m (kg-m, in-lb)
: Always replace after every disassembly.
: Apply petroleum jelly.
Removal and Installation
REMOVAL
| Never Reuse These Parts | Part Code | For additional information: |
|---|---|---|
| Seal-O-ring | 31051J | Exploded View |
Remove front tire (LH). Refer to Removal & Installation.
Remove front fender protector. Refer to Removal and Installation

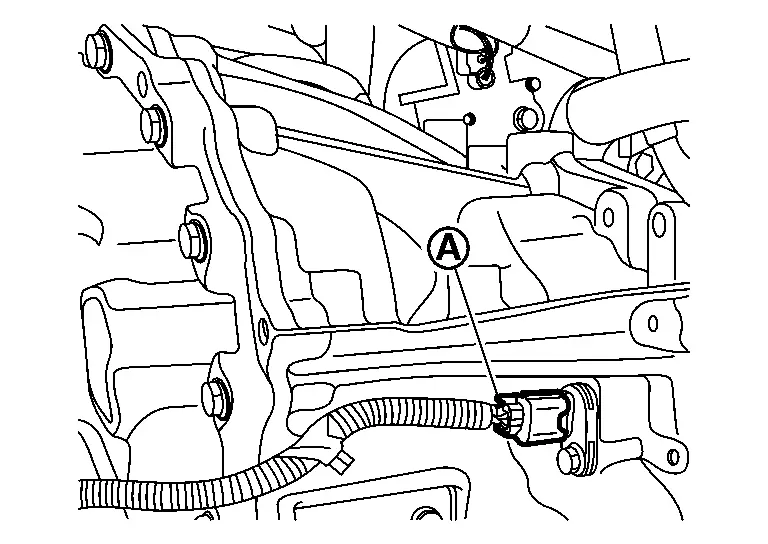

Disconnect the harness connector (A) from the secondary speed sensor.

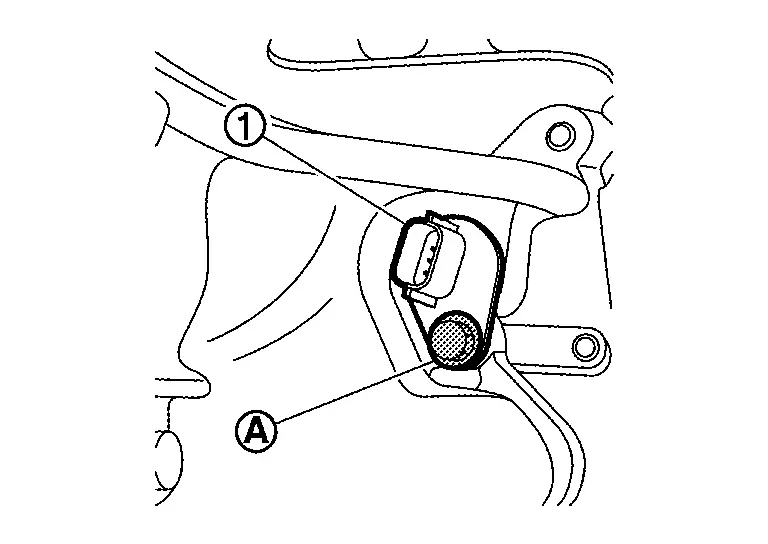

Remove secondary speed sensor mounting bolt (A) , and then remove secondary speed sensor (1).
CAUTION:
Never impact secondary speed sensor.
Remove the O-ring from the secondary speed sensor.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
-
Never reuse O-ring.
-
Apply CVT fluid to the O-ring.
Inspection and Adjustment
Check for CVT fluid leakage. Refer to Inspection.
Adjust CVT fluid level. Refer to Adjustment.
