Exploded View

Refer to Exploded View.

Removal and Installation

REMOVAL

Fully open the glass lid.

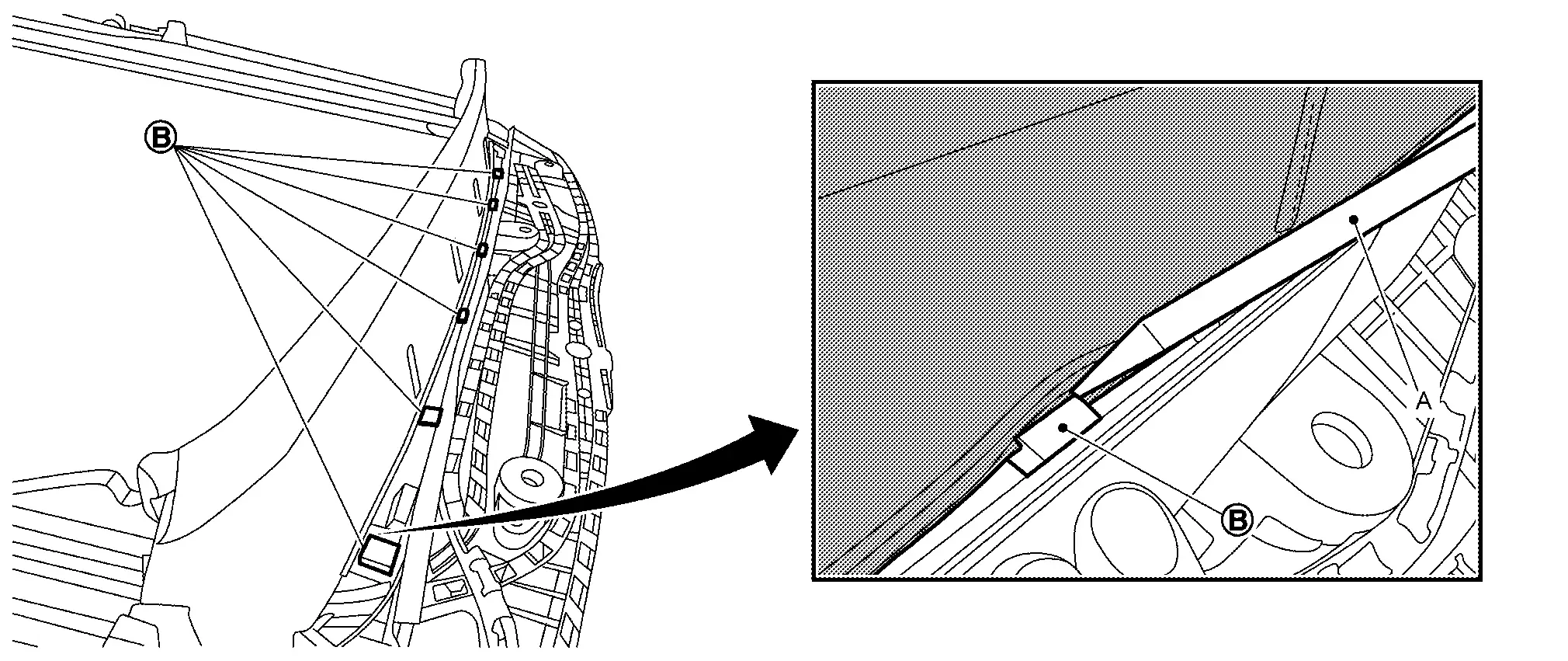

Disengage wind deflector fixing points using a remover tool (A) from moonroof unit assembly.

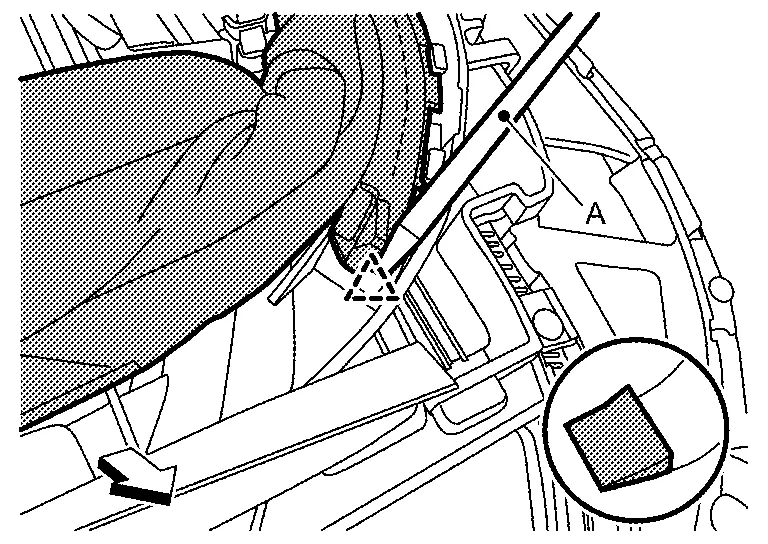

Disengage wind deflector fixing pawl using a remover tool (A), and then remove wind deflector.

	: Pawl
	: Nissan Ariya Vehicle front

INSTALLATION

Install in the reverse order of removal.
