Removal and Installation

REMOVAL

CAUTION:

When replacing the sonar control unit, perform “ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT”. Refer to Description.

Remove the luggage rear plate. Refer to Removal and Installation.

Disconnect the harness connector.

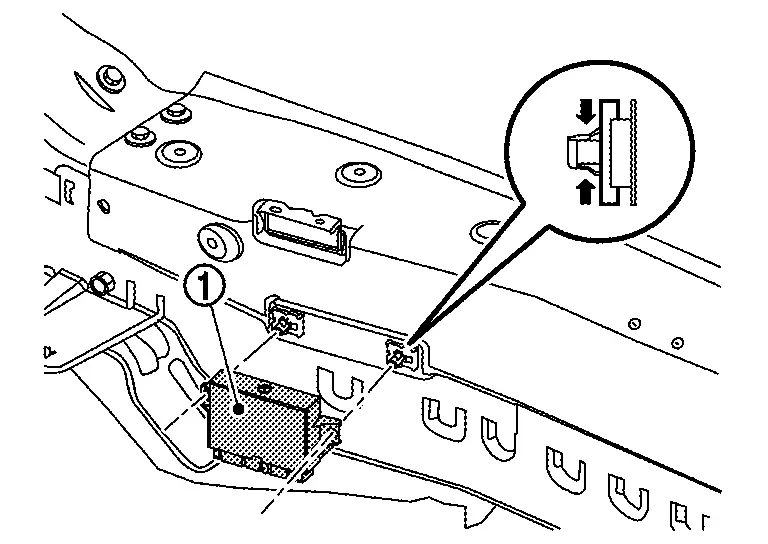

Press the mounting pawls in the direction of the arrow in the figure, and then remove the sonar control unit from the Nissan Ariya vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When replacing the sonar control unit, perform “ADDITIONAL SERVICE WHEN REPLACING SONAR CONTROL UNIT”. Refer to Description.
