Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Passenger Door Mirror Control Module

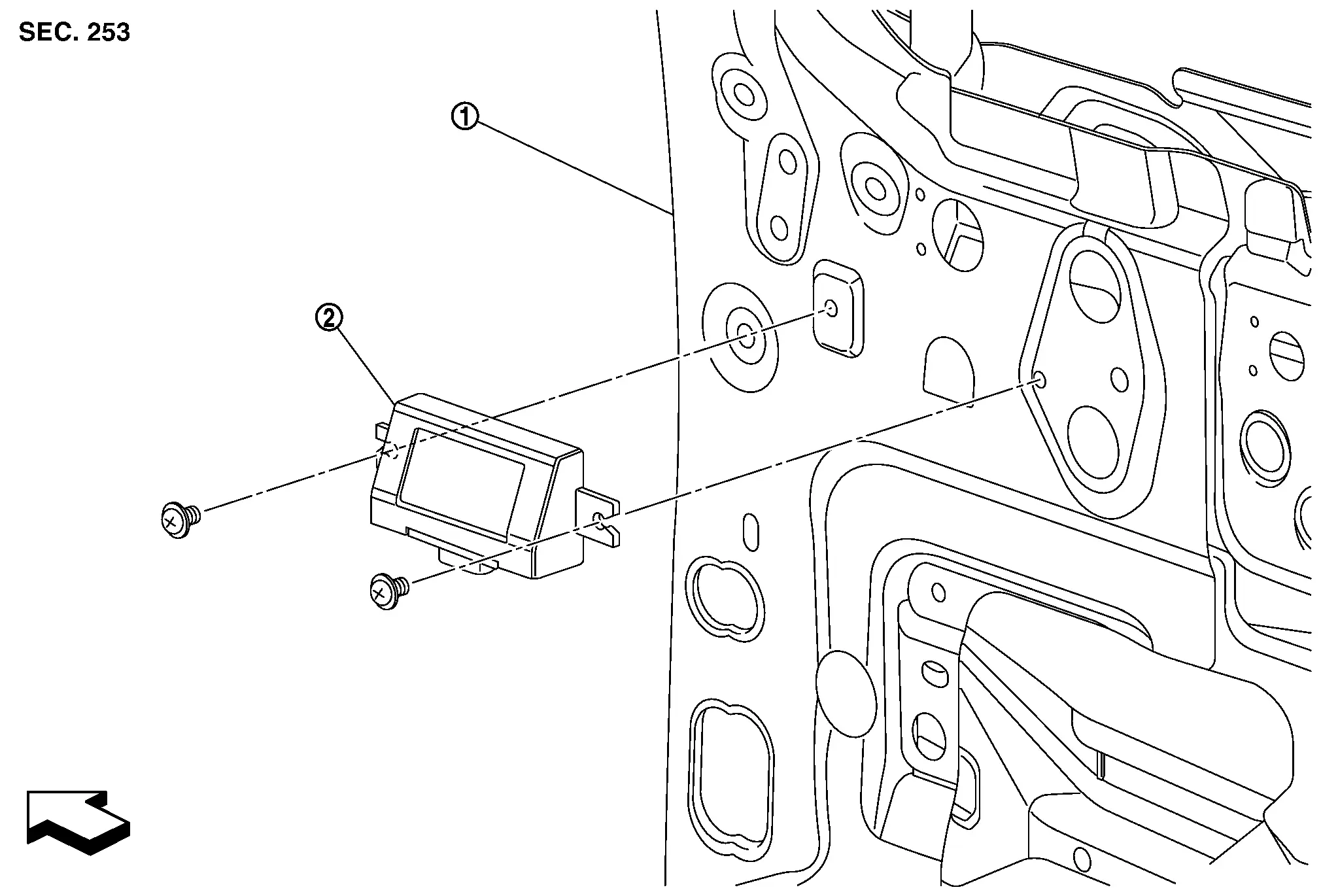

Exploded View
 |
Front door panel |  |
Passenger door mirror control module | ||
 |
: Nissan Ariya Vehicle front | ||||
Removal and Installation
REMOVAL
Remove front door finisher (passenger side). Refer to Removal and Installation.

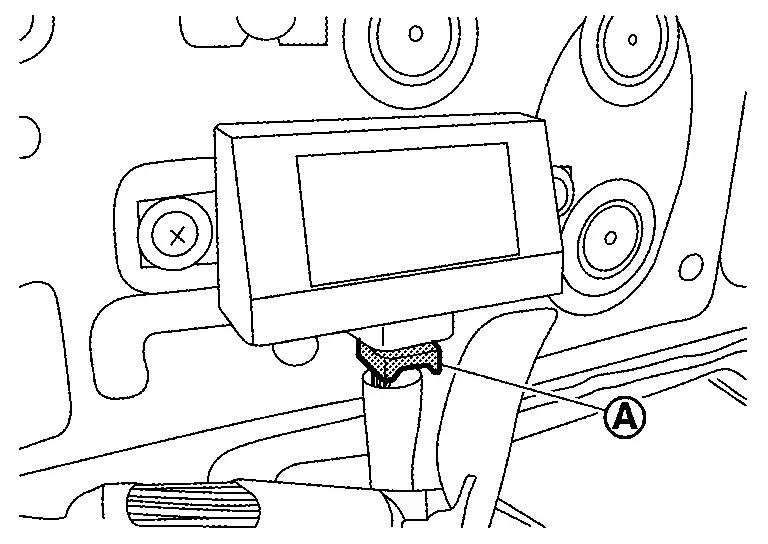

Disconnect harness connector (A).

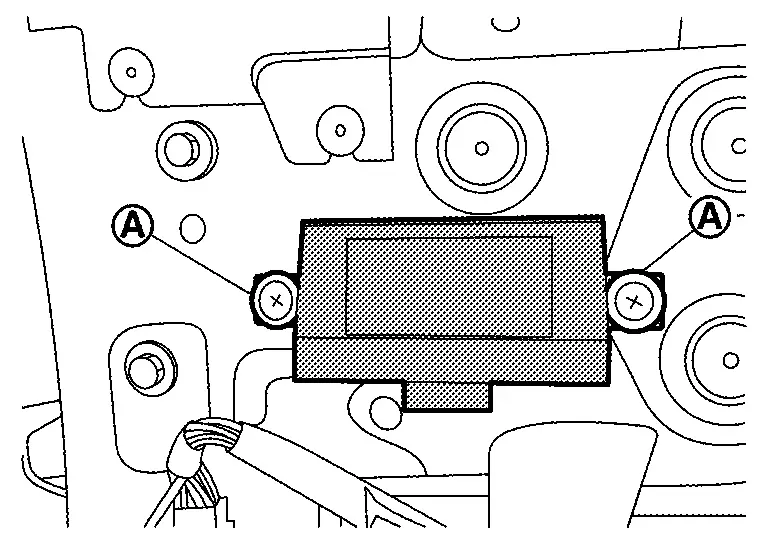

Remove passenger door mirror control module fixing screws (A), and then remove passenger door mirror control module.
INSTALLATION
Installation is in the reverse order of removal.
