Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Parking Brake Switch
Removal and Installation
REMOVAL
Remove the console finisher assembly. Refer to Removal and Installation.

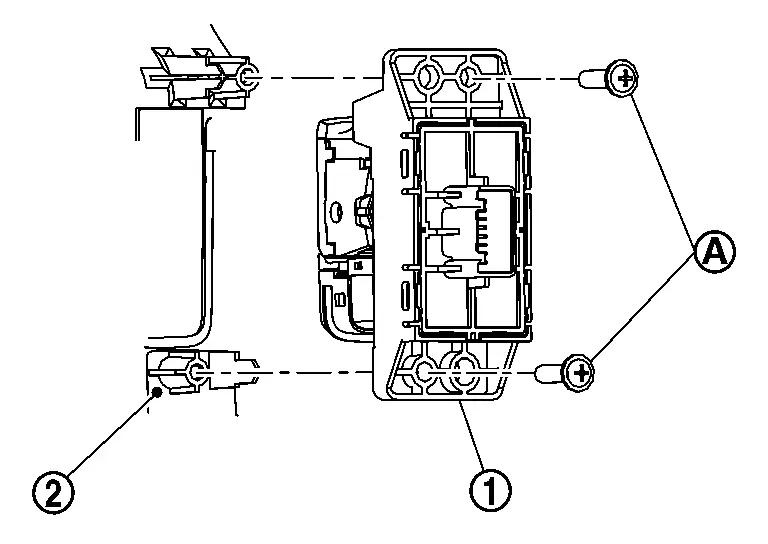

Remove parking brake mounting screws (A), and then remove parking brake switch (1).
 |
: Console finisher assembly |
NOTE:
The automatic brake hold switch and the rear parking brake switch are a single unit.
INSTALLATION
Installation is in the reverse order of removal.
