Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Floor Trim

Nissan Rogue (T33) 2021-Present Service Manual / Body Interior :: Interior / Removal and Installation :: Floor Trim

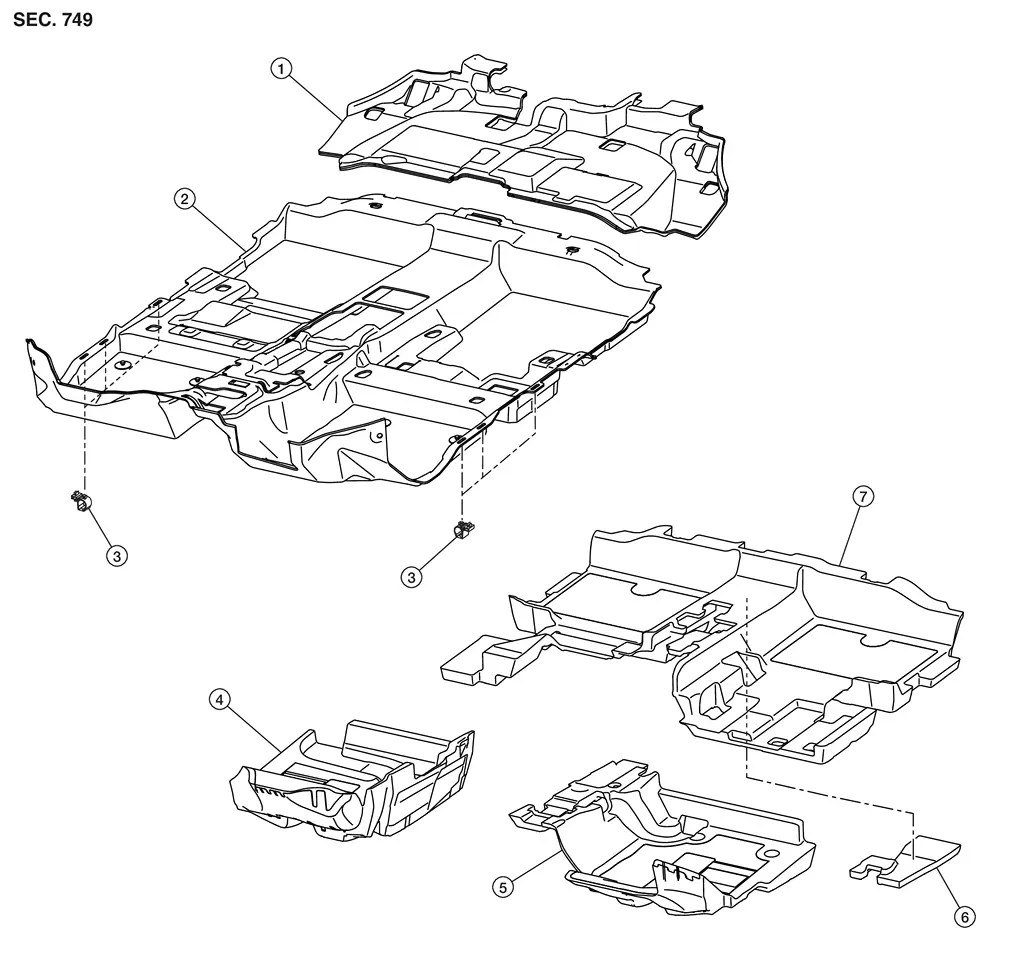

Exploded View

ProPILOT Assist 2.1 Models

1. Rear floor carpet 2. Front floor carpet 3. Harness clip
4. Front floor spacer RH 5. Front floor spacer LH 6. Rear floor spacer center
7. Rear floor spacer

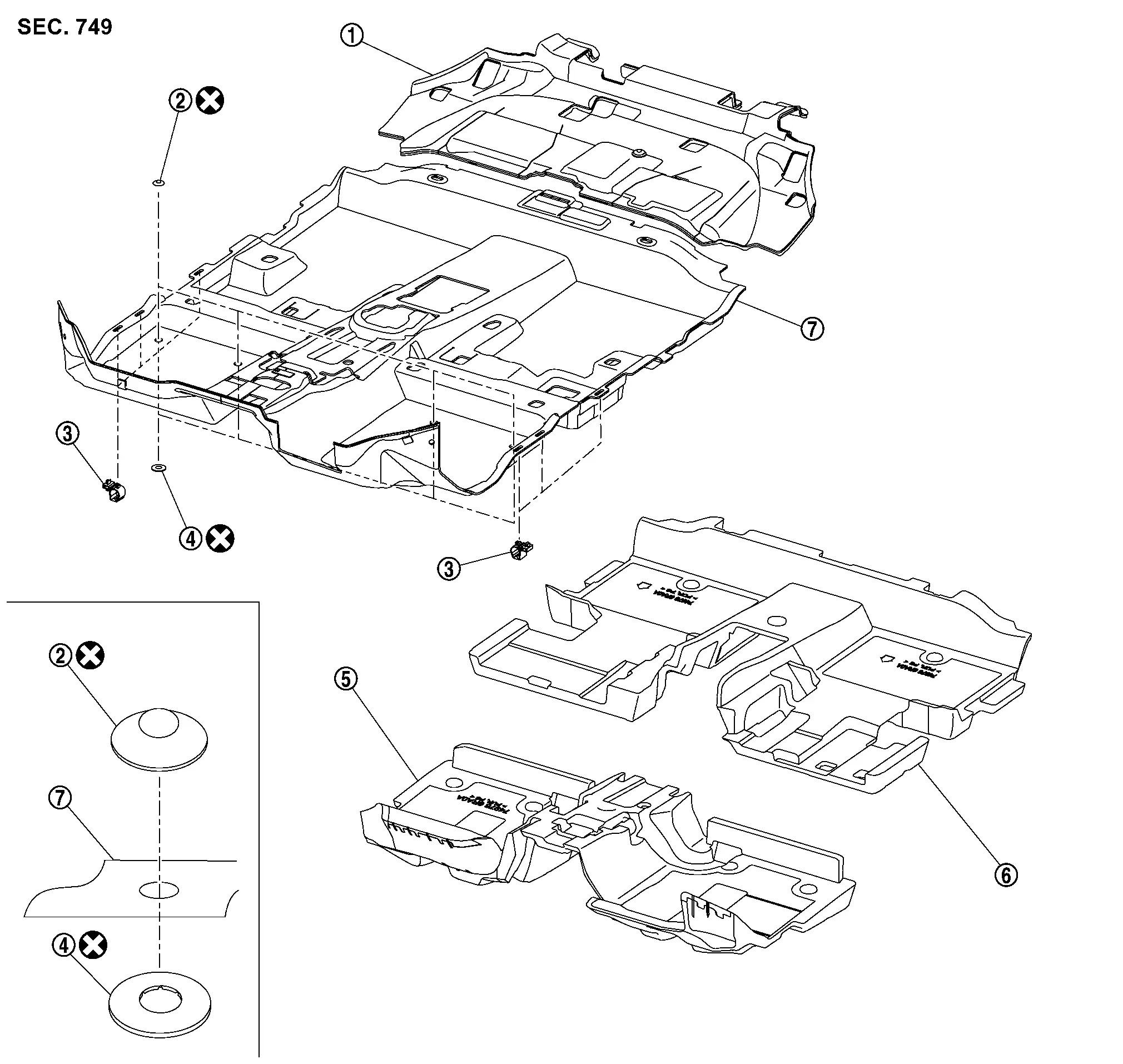

JAPAN PRODUCTION MODELS

Rear floor carpet Carpet hook Harness clip
Ring Front floor spacer Rear floor spacer
Front floor carpet
: Always replace after every disassembly.

USA PRODUCTION MODELS

Rear floor carpet Front floor carpet Harness clip
Front floor spacer Rear floor spacer

Removal and Installation

CAUTION:

Never damage the body panel.

REMOVAL

Front Floor Carpet

Remove front seat assembly (LH and RH). Refer to Removal and Installation.

Remove cross member. Refer to Removal and Installation.

Remove dash side finisher (LH and RH). Refer to Removal and Installation.

Remove center pillar lower garnish (LH and RH). Refer to Removal and Installation.

Remove center console assembly. Refer to Removal and Installation.

Remove active noise control unit (if equipped). Refer to Removal and Installation.

Remove steering member stay. Refer to Removal and Installation.

Remove drain hose. Refer to Removal and Installation.

Disconnect harness connectors and harness clips.

Remove front floor carpet.

Rear Floor Carpet

Remove rear seat assembly. Refer to Removal and Installation.

Remove luggage side lower finisher. Refer to Removal and Installation.

Remove rear floor carpet.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Replace carpet hook and ring with a new part after removal. Never reuse carpet hook and ring.
