Nissan Rogue (T33) 2021-Present Service Manual: Removal and Installation :: Drain Assembly
Exploded View
Refer to Exploded View.
Removal and Installation
REMOVAL
Remove sunshade. Refer to Removal and Installation.

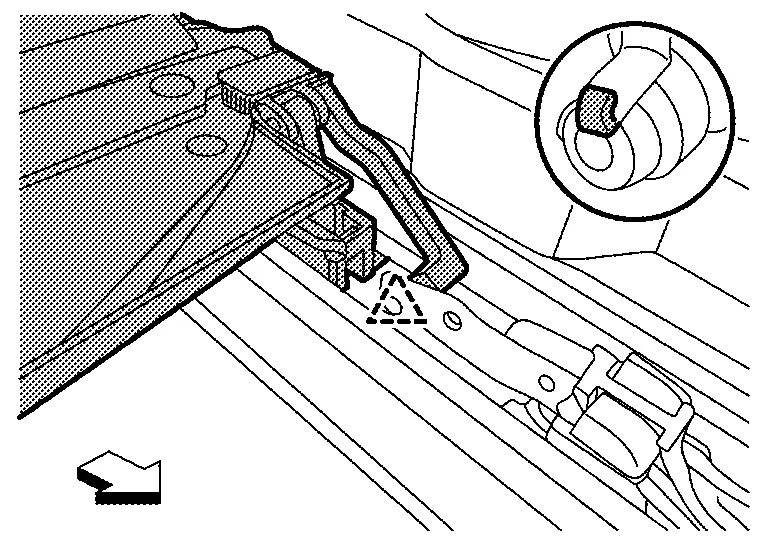

Disengage drain assembly fixing pawl, and then remove drain assembly.
 |
: Pawl |
 |
: Nissan Ariya Vehicle front |
INSTALLATION
Install in the reverse order of removal.
