Structure and Operation

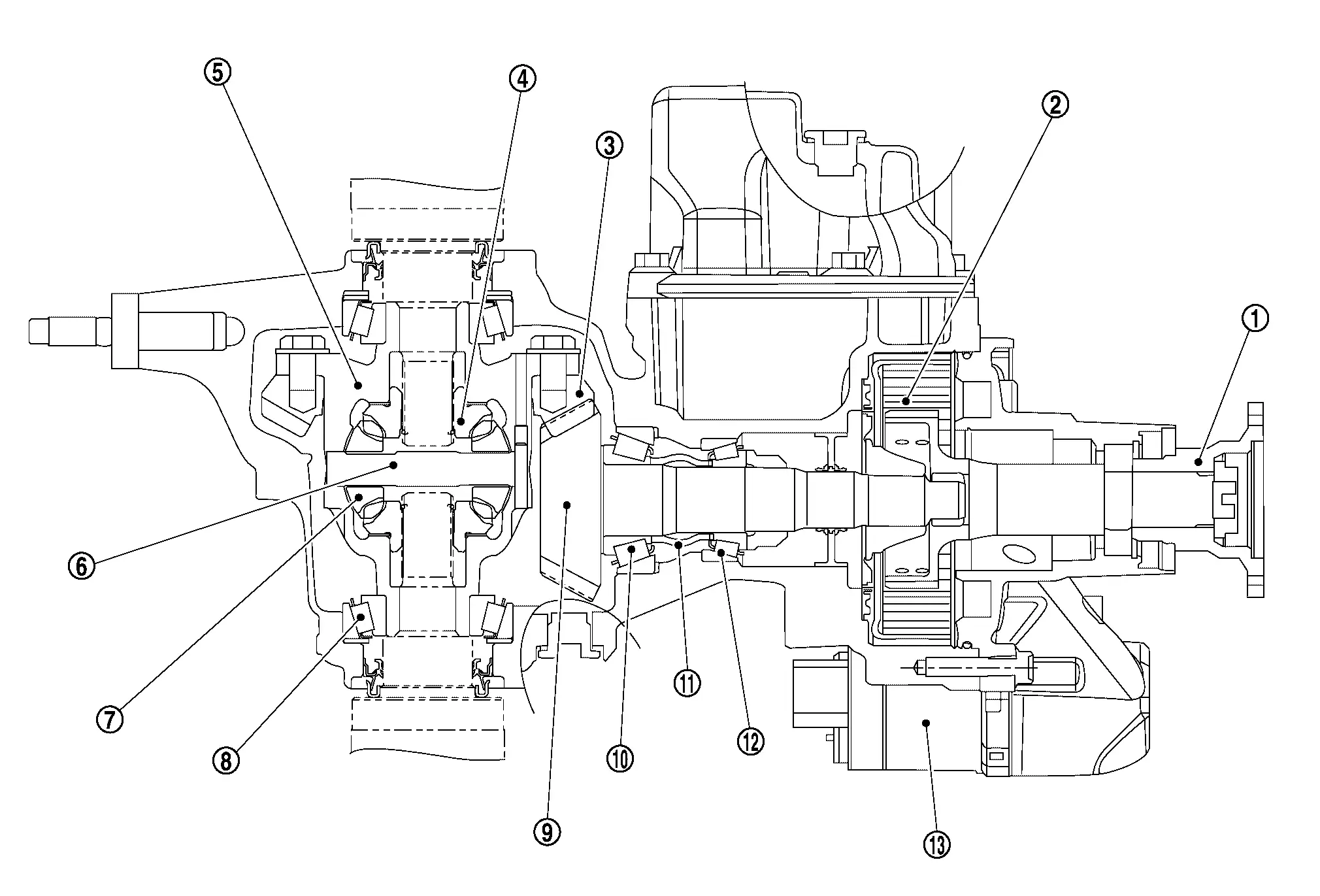

Sectional View

Companion flange Electro-hydraulic coupling assembly Drive gear
Side gear Differential case Pinion mate shaft
Pinion mate gear Side bearing Drive pinion
Pinion rear bearing Collapsible spacer Pinion front bearing
Actuator assembly

Electro-hydraulic Coupling

The electro-hydraulic coupling operates as the AWD system. For the operation, refer to Operation Description.
