Preparation

Special Service Tools

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

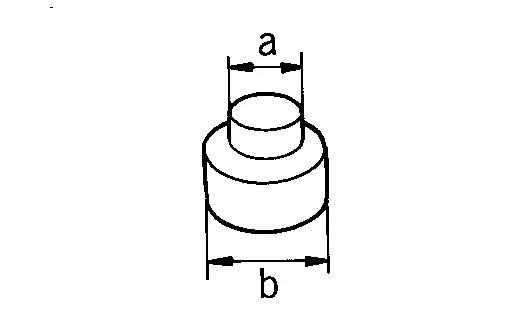

KV40100610

(NI-26089)

Drift

a: 63 mm (2.48 in) dia.

b: 54.3 mm (2.138 in) dia.

  • Removing and Installing rear cover (2 pieces are used.)

  • Removing and Installing differential assembly (2 pieces are used.)

  • Installing pinion front bearing inner race

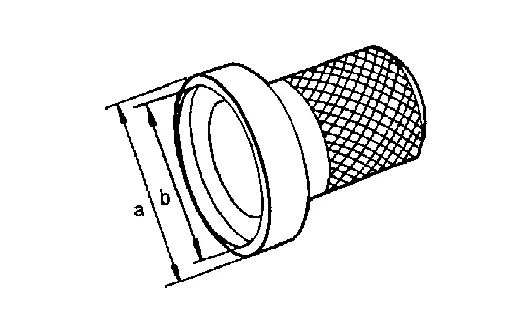

ST33052000

(  —  )

Adapter

a: 22 mm (0.87 in) dia.

b: 28 mm (1.10 in) dia.

Removing side bearing inner race

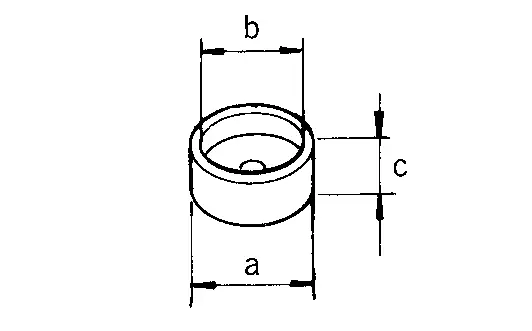

KV40105020

(  —  )

Drift

a: 39.7 mm (1.563 in) dia.

b: 35 mm (1.38 in) dia.

c: 15 mm (0.59 in)

Installing side bearing inner race

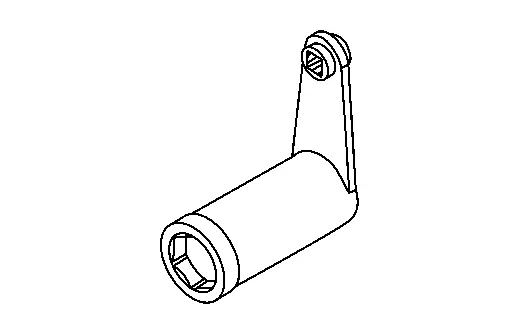

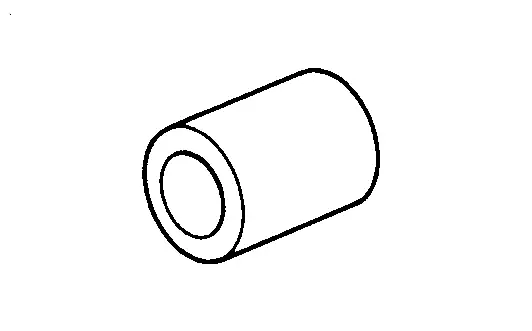

KV38109300

(NI-53035)

Drive pinion socket

  • Measuring pinion bearing preload and total preload

  • Removing and installing drive pinion lock nut

ST3127S000

(NI-25765-A)

Preload gauge

Measuring pinion bearing preload and total preload

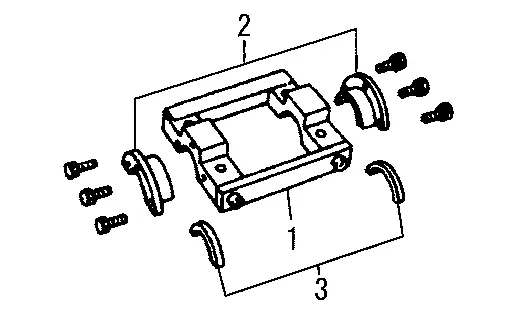

KV389L0010

(  —  )

Dummy cover set

1: Dummy cover

2: Dummy cover spacer

3: Dummy cover shim

  • Checking drive gear runout

  • Checking tooth contact

  • Checking backlash

KV38109900

(NI-53029)

Pinion nut wrench

  • Measuring drive pinion runout

  • Removing and installing drive pinion lock nut

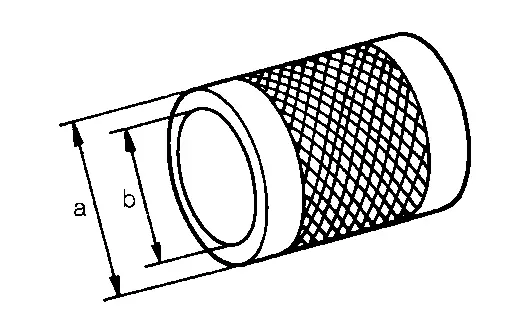

ST33200000

(NI-26082)

Drift

a: 60 mm (2.36 in) dia.

b: 44.5 mm (1.752 in) dia.

Installing pinion rear bearing outer race

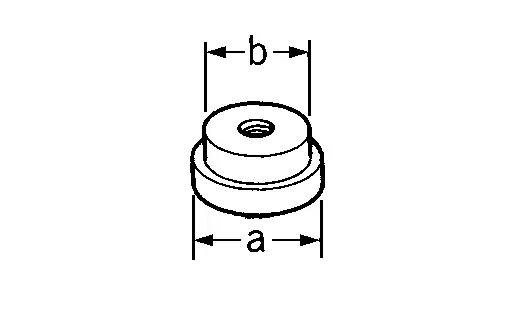

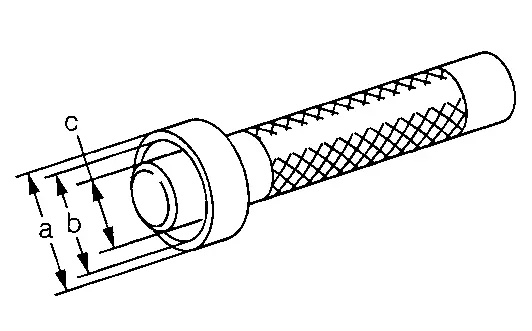

ST33230000

(NI-25805-01)

Drift

a: 51 mm (2.01 in) dia.

b: 41 mm (1.61 in) dia.

c: 28.5 mm (1.122 in) dia.

Installing pinion front bearing outer race

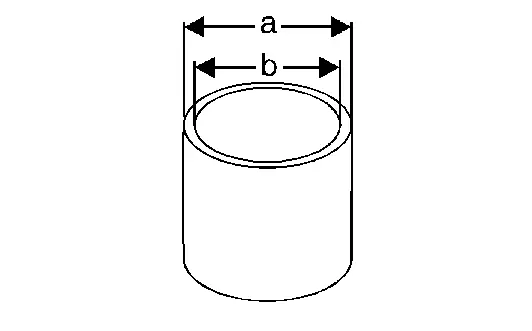

ST23860000

(  —  )

Drift

a: 38 mm (1.50 in) dia.

b: 33 mm (1.30 in) dia.

  • Installing pinion rear bearing inner race

  • Installing pinion front bearing inner race

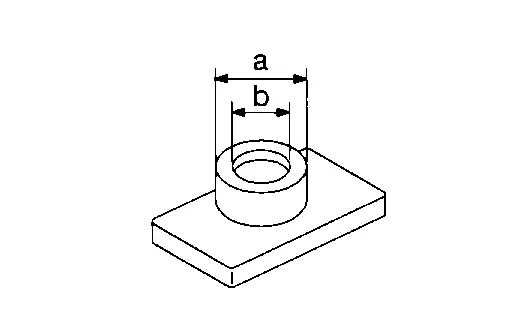

ST38220000

(  —  )

Press stand

a: 75 mm (2.95 in) dia.

b: 63 mm (2.48 in) dia.

Installing pinion front bearing inner race

Commercial Service Tools

Tool name Description
Flange wrench

Removing and installing companion flange lock nut
Oil seal remover

  • Removing electro-hydraulic coupling oil seal

  • Removing side oil seal

  • Removing drive pinion oil seal

Drift

a: 58 mm (2.28 in) dia. or less

b: 47 mm (1.85 in) dia. or more

Installing electro-hydraulic coupling oil seal
Separator

  • Removing side bearing inner race

  • Removing pinion rear bearing inner race
Puller

  • Removing side bearing inner race

  • Removing pinion rear bearing inner race

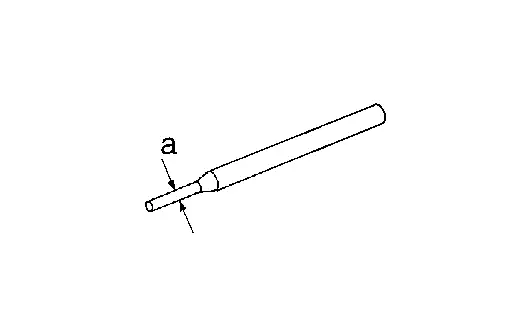

Pin punch

a: 4.5 mm (0.177 in) dia.

Removing and installing lock pin

Drift

a: 63 mm (2.48 in) dia.

b: 49 mm (1.93 in) dia.

Installing side oil seal

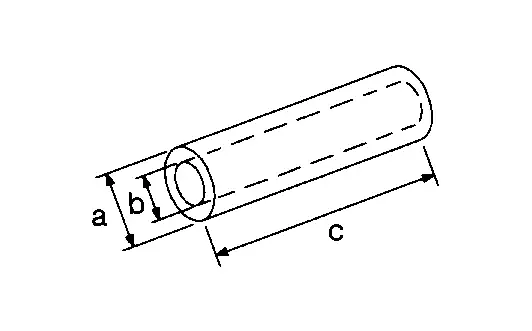

Drift

a: 60 – 73 mm (2.36 – 2.87 in) dia.

b: 24 – 53 mm (0.94 – 2.09 in) dia.

c: 68 mm (2.68 in) or more

Installing drive pinion oil seal
Power tool

Loosening bolts and nuts

Lubricant or/and Sealant

Item Use
Electro-hydraulic coupling oil (LSC Transmission Fluid 12-301 or equivalent) Filling when the parts of electro-hydraulic coupling assembly and/or rear final drive assembly is disassembled
Red lead or equivalent Checking tooth contact
