Nissan Rogue (T33) 2021-Present Service Manual: Preparation

Nissan Rogue (T33) 2021-Present Service Manual / Suspension :: Road Wheels & Tires / Preparation

Special Service Tool

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Tool number

(TechMate No.)

Tool name 		Description

—

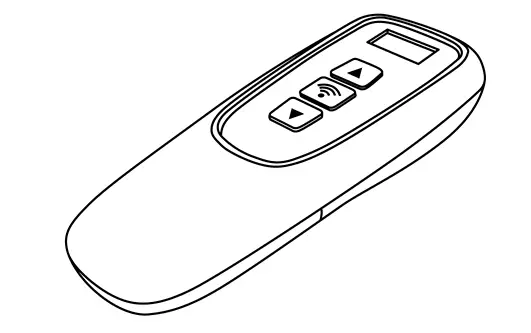

(NI-50190)

Signal tech II

  • Activate and display TPMS tire pressure sensor IDs

  • Display tire pressure reported by the TPMS tire pressure sensor

  • Read TPMS DTCs

  • Register TPMS tire pressure sensor IDs

  • Test remote keyless entry keyfob relative signal strength

  • Compatible with future sensors

  • Equipped with a display

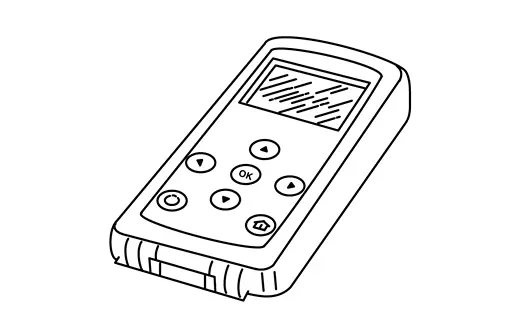

KV48105501

(NI-45295-A)

Tire pressure sensor activation tool

  • Activate TPMS tire pressure sensor IDs

  • Compatible with future sensors

  • Equipped with a display (KV48105501 only)

Commercial Service Tool

Tool name Description
Power tool

Loosening bolts and nuts

Always Replace with New Parts

Never Reuse These Parts Part Code For additional information:
Cap-tire pressure sensor 40703 Exploded View
Core-tire pressure sensor 40704 Exploded View
Screw — Exploded View
Valve — Exploded View
