Nissan Rogue (T33) 2021-Present Service Manual: Preparation

Special Service Tools

Tool number

Tool name
Description

KV991040S1

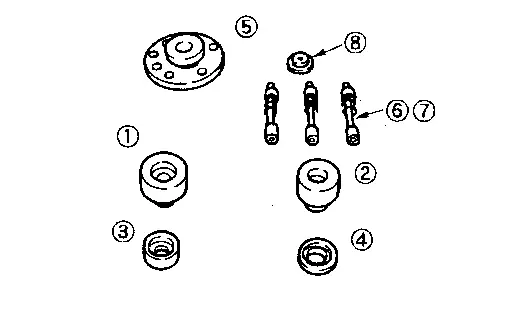

CCK gauge attachment

KV99104020 Adapter A

KV99104030 Adapter B

KV99104040 Adapter C

KV99104050 Adapter D

KV99104060 Plate

KV99104070 Guide bolt

KV99104080 Spring

KV99104090 Center plate

Measuring wheel alignment

ST35652000

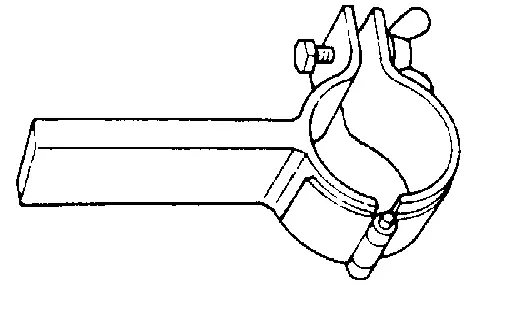

Strut attachment

Disassembling and assembling strut

Commercial Service Tools

Tool name Description

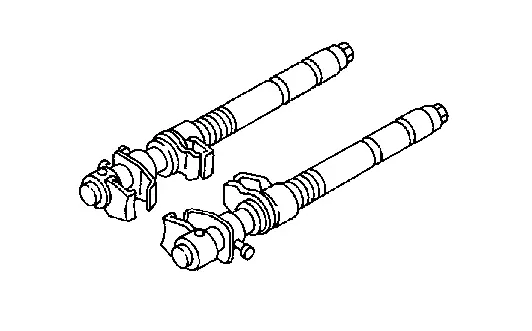

Spring compressor

Removing and installing coil spring
Chisel

Removing and installing steering knuckle and strut assembly

A: 16 – 32 mm (0.63 – 1.26 in)

B: 10 mm (0.39 in) or more

C: 40 – 70 mm (1.57 – 2.76 in)

L: 220 mm (7.87 in) or less

S: 14 mm (0.55 in) or more
    Precaution. Precautions
    Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER" The Supplemental Restraint System such as “AIR BAG� and “SEAT BELT PRE-TENSIONER...
