Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Passenger compartment

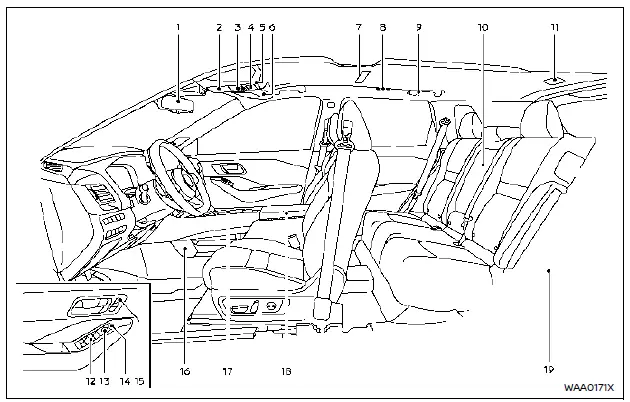

Nissan Rogue. Passenger compartment

  1. Inside mirror — interior rearview mirror providing visibility behind the Nissan Rogue.
  2. Sunglasses holder — overhead compartment for storing eyewear.
  3. Map lights
    • Microphone** — built-in microphone used for NissanConnect voice functions.**
  4. Moonroof switch* — control switch for operating the available moonroof.*
  5. Emergency Call (SOS) button* — allows contacting emergency services if equipped.*
  6. Sun visors — front visors with mirrors that help reduce glare.
  7. Room light* — interior illumination for the passenger cabin.*
  8. Rear personal lights* — individual reading lights for rear passengers.*
  9. Assist grips/Coat hooks* — handles for support and hooks for hanging garments.*
  10. Rear cup holders — holders located for rear passenger convenience.
  11. Cargo light — illumination in the rear cargo area of the Nissan Rogue.
  12. Power window switch — controls for raising and lowering windows.
  13. Outside mirror control switch (driver's side) — adjustment controls for exterior mirrors.
  14. Power door lock switches — controls to lock or unlock the vehicle doors.
  15. Memory seat switches (driver's side)* — buttons to save and recall driver seat position settings.*
  16. Lower console tray — storage tray located beneath the center console.
  17. Front cup holders — beverage holders for the front occupants.
  18. Console box
    • USB (Universal Serial Bus) charging connector* — rear-seat USB charging port.*
    • Heated rear seat switches* — controls for the heated rear seats.*
    • Rear temperature control* — allows rear passengers to adjust airflow or temperature.*
  19. Cargo area
    • Power outlet* — auxiliary power source located in the cargo area.*
    • Adjustable luggage floor* — configurable cargo floor for added versatility.*
    • Single luggage board* — removable cargo board for organizing storage.*
    • Luggage hooks — hooks for securing bags or cargo.
    • Cargo cover* — retractable cover to conceal items in the cargo area.*
    • Spare tire — emergency-use replacement tire located under the cargo floor.

*: if so equipped
**: Refer to the separate NissanConnect Owner's Manual.
