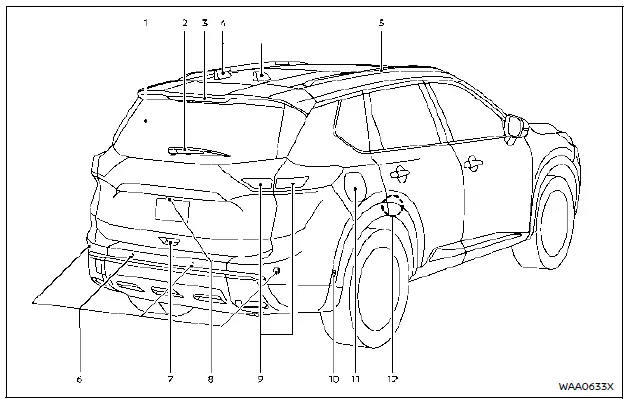

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Exterior rear
- Rear window defroster — helps clear frost and fog from the Nissan Rogue’s rear window for better visibility.
- Rear window wiper and washer
- Switch operation — controls for activating the rear wiper system.
- Window washer fluid — spray system used to clean the rear glass.
- High-mounted stop light — elevated brake light that improves visibility to drivers behind.
- Antenna** — roof-mounted antenna used for radio and navigation functions in the Nissan Rogue.
- Roof rack* — available roof-mounted rails for carrying cargo or accessories.*
- Sonar sensors (center and corner)
- Sonar system* — assists with obstacle detection when parking.*
- Rear Sonar System (RSS)* — alerts the driver to objects behind the vehicle.*
- Rear Automatic Braking (RAB) — system that can automatically apply brakes to help avoid collisions.
- ProPILOT Assist 2.1* — advanced driver-assist technology available on certain Nissan Rogue models.*
- Liftgate
- Intelligent Key system* — allows hands-free or remote liftgate access.*
- Rear view camera* — provides a rearward image to assist with reversing.*
- Rear combination light — includes brake lights, tail lights, and turn signals.
- Sonar sensors (side)*
- Rear Automatic Braking (RAB) — additional assistance to avoid rear obstacles.
- Sonar system — helps detect objects around the rear sides.
- ProPILOT Assist 2.1* — integrates side sensors for enhanced driver assistance.*
- Fuel-filler door
- Fuel information — details regarding the recommended fuel type for the Nissan Rogue.
- Child safety rear door locks — locks designed to prevent rear doors from being opened from the inside.
*: if so equipped
**: For ProPILOT Assist 2.1 models, the Nissan Rogue uses two roof antennas (left: GNSS antenna, right: radio antenna).
For ProPILOT Assist and ProPILOT Assist 1.1 models, there is one antenna.
