Nissan Rogue (T33) 2021-Present Service Manual: P219a Air Fuel Ratio

DTC Description

DTC DETECTION LOGIC

POSSIBLE CAUSE

• Direct fuel injector

• Exhaust gas leaks

• Incorrect fuel pressure

• Mass air flow sensor

• Intake air leaks

• Lack of fuel

• Incorrect PCV hose connection

• Improper spark plug

• Insufficient compression

• The direct fuel injector circuit is open or shorted

• ignition coil

• The ignition signal circuit is open or shorted

FAIL-SAFE

Not applicable

DTC Confirmation Procedure

CHECK DTC PRIORITY

If DTC P219A is displayed with other DTC, first perform the trouble diagnosis for the other DTC.

Is applicable DTC detected?

Perform diagnosis of applicable. Refer to DTC Index.

GO TO 2.

PRECONDITIONING-1

If DTC Confirmation Procedure has been previously conducted, always perform the following before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

NOTE:

Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

GO TO 3.

PRECONDITIONING-2

1. Turn ignition switch ON.

2. Clear the mixture ratio self-learning value. Refer to Work Procedure.

Will CONSULT be used?

GO TO 4.

GO TO 7.

PERFORM DTC CONFIRMATION PROCEDURE-1

1. Turn ignition switch ON.

2. Select “COOLANT TEMP/S” in “DATA MONITOR” mode of “ENGINE” using CONSULT.

3. Start engine.

4. Make sure that “COOLANT TEMP/S” indicates more than 80°C (176°F).

GO TO 5.

PERFORM DTC CONFIRMATION PROCEDURE-2

With CONSULT

1. Select “SYSTEM 1 DIAGNOSIS B B1” and “SYSTEM 1 DIAGNOSIS A B1” in “DATA MONITOR” mode of “ENGINE” using CONSULT.

2. Drive Nissan Ariya vehicle under the following conditions for at least 5 consecutive seconds.

   CAUTION:

   • Always drive Nissan Ariya vehicle at a safe speed.

   ENG SPEED	1,000 – 1,250rpm
   COOLANT TEMP/S	More than 80°C (176°F)
   B/FUEL SCHDL	4 – 7 ms
   Selector lever	D position
   SYSTEM 1 DIAGNOSIS B B1	PRSENT

   NOTE:

   • Drive the Nissan Ariya vehicle at approximately 88 km/h (55MPH) allows easy diagnosis.

   • Keep the accelerator pedal as possible during cruising.

3. Check “SYSTEM 1 DIAGNOSIS A B1” indication.

Is “CMPLT” displayed?

GO TO 6.

GO TO 3.

PERFORM DTC CONFIRMATION PROCEDURE-3

Check 1st trip DTC.

Is 1st trip DTC detected?

Refer to DTC Diagnosis Procedure.

INSPECTION END

PERFORM DTC CONFIRMATION PROCEDURE-4

Without CONSULT

1. Start the engine and warm it up to normal operating temperature.

2. Drive Nissan Ariya vehicle under the following conditions for at least 5 consecutive seconds.

   CAUTION:

   • Always drive Nissan Ariya vehicle at a safe speed.

   Engine speed	1,000 – 1,250 rpm
   Calculated load value	26 – 35 %
   Selector lever	D position

   NOTE:

   • Drive the Nissan Ariya vehicle at approximately 88 km/h (55MPH) allows easy diagnosis.

   • Keep the accelerator pedal as possible during cruising.

3. Check 1st trip DTC.

Is 1st trip DTC detected?

Proceed to DTC Diagnosis Procedure.

To check malfunction symptom before repair: Refer to Intermittent Incident.

Confirmation after repair: INSPECTION END

DTC Diagnosis Procedure

NOTE:

Do not replace A/F sensor when DTC P219A is detected.

CHECK DTC PRIORITY

If DTC P219A is displayed with other DTC, first perform the trouble diagnosis for the other DTC.

Is applicable DTC detected?

Perform diagnosis of applicable. Refer to DTC Index.

GO TO 2.

CHECK FOR INTAKE AIR LEAK

1. Stop engine and check the following for connection.

   • Air duct

   • Vacuum hoses

   • PCV hose

   • Intake air passage between air duct to intake manifold

2. Start engine and let it idle.

3. Listen for an intake air leak after the mass air flow sensor.

Is the inspection result normal?

GO TO 3.

Repair or replace error-detected parts.

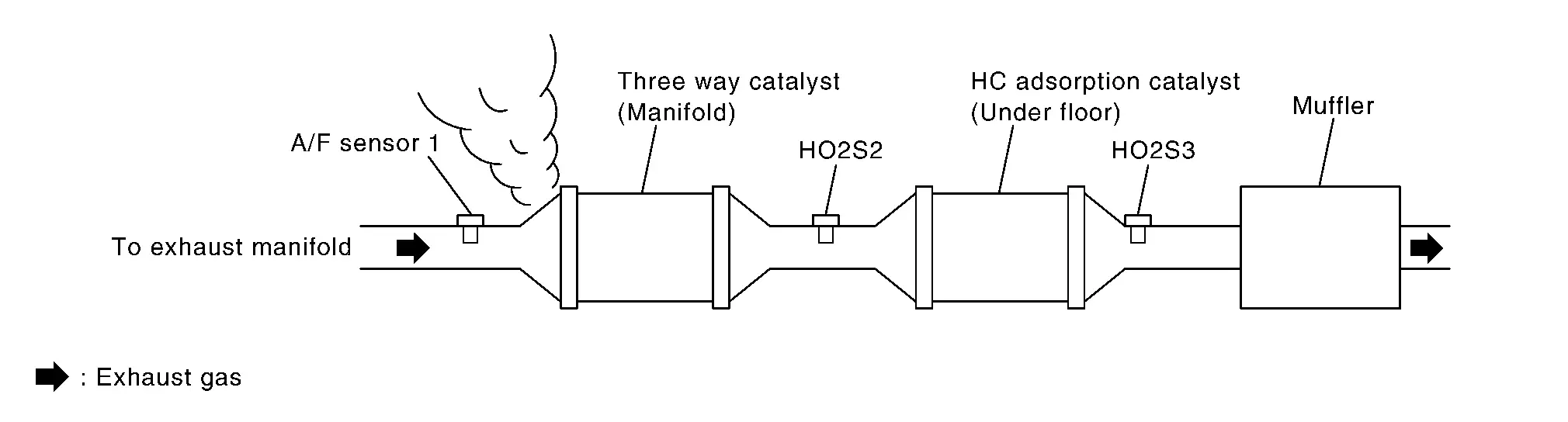

CHECK EXHAUST GAS LEAK

1. Stop engine and visually check exhaust tube, three way catalyst and muffler for dents connection.

2. Start engine and let it idle.

3. Listen for an exhaust gas leak before three way catalyst (manifold).



Is the inspection result normal?

GO TO 4.

Repair or replace error-detected parts.

CHECK FUEL PRESSURE

Check fuel pressure. Refer to Work Procedure.

Is the inspection result normal?

GO TO 5.

GO TO 9.

CHECK MASS AIR FLOW SENSOR

With CONSULT

Check “MASS AIR FLOW” in “DATA MONITOR” mode of “ENGINE” using CONSULT.

For specification, Refer to Component Inspection.

With GST

Check mass air flow sensor signal in Service $01 using GST.

For specification, Refer to MASS AIR FLOW SENSOR : Service Data.

Is the inspection result normal?

GO TO 6.

Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or grounds. Refer to DTC Diagnosis Procedure.

CHECK FUNCTION OF FUEL INJECTOR-1

With CONSULT

1. Start engine.

2. Perform “POWER BALANCE” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

3. Check that each circuit produces a momentary engine speed drop.

Without CONSULT

1. Let engine idle.

2. Listen to each fuel injector operating sound.



   Clicking noise should be heard.

Is the inspection result normal?

GO TO 7.

Perform trouble diagnosis for fuel injector, Refer to Component Function Check.

CHECK FUNCTION OF IGNITION COIL-1

CAUTION:

Perform the following steps in a well-ventilated area with no combustibles.

1. Turn ignition switch OFF.

2. Remove fuel pump fuse from IPDM E/R to release fuel pressure.

   NOTE:

   CONSULT must not be used to release fuel pressure. It develops again during the following steps, if released by using CONSULT.

3. Start the engine.

4. After an engine stall, crank the engine two or three times to release all the fuel pressure.

5. Turn ignition switch OFF.

6. Disconnect all the harness connectors of ignition coil to prevent electric discharge from occurring in ignition coil.

7. Remove ignition coil assembly and spark plug of cylinder. Refer to Removal and Installation.

8. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.

9. Connect spark plug and harness connector to ignition coil.

10. Allow a 13-17mm (0.52-0.66 in) spacing between spark plug and grounded metal portion as shown in the figure to fix the ignition coil with a rope or an equivalent.



11. Crank the engine for approximately 3 seconds to see if sparking occurs between spark plug and the grounded metal portion.

    Spark should be generated.

    CAUTION:

    • The discharge voltage becomes 20 kV or higher. Therefore, always stay away from the spark plug and ignition coil at least 50 cm (19.7 in) during the inspection.

    • Leaving a space of more than 17mm (0.66 in) may damage the ignition coil.

    NOTE:

    When the gap is less than 13 mm (0.52 in), a the spark might be generated even if the coil is malfunctioning.

Is the inspection result normal?

GO TO 8.

GO TO 10.

CHECK COMPRESSION PRESSURE

Check compression pressure. Refer to Inspection.

Is the inspection result normal?

Check intermittent incident. Refer to Intermittent Incident.

Check pistons, piston rings, valves, valve seats and cylinder head gaskets.

DETECT MALFUNCTIONING PART

Check fuel hoses and fuel tubes for clogging.

Is the inspection result normal?

Replace fuel filter and fuel pump assembly. Refer to Exploded View.

Repair or replace error-detected parts.

CHECK FUNCTION OF IGNITION COIL-2

1. Turn ignition switch OFF.

2. Disconnect spark plug and connect a non-malfunctioning spark plug.

3. Crank engine for approximately 3 seconds, and recheck whether spark is generated between the spark plug and the grounded metal portion.

   Spark should be generated.

Is the inspection result normal?

GO TO 11.

Check ignition coil, power transistor and their circuits. Refer to Component Function Check.

CHECK SPARK PLUG-1

Check the initial spark plug for fouling, etc.

Is the inspection result normal?

1. Repair or clean spark plug. Refer to Removal and Installation.

2. GO TO 12.

Replace spark plug(s) with standard type one(s). For spark plug type, Refer to Spark Plug.

CHECK SPARK PLUG-2

Check spark plug. Refer to Component Inspection.

Is the inspection result normal?

GO TO 13.

Repair or replace error-detected parts.

CHECK FUNCTION OF IGNITION COIL-3

1. Reconnect the initial spark plugs.

2. Crank engine for approximately 3 seconds, and recheck whether spark is generated between the spark plug and the grounded portion.

   Spark should be generated.

Is the inspection result normal?

Check intermittent incident. Refer to Intermittent Incident.

Replace spark plug(s) with standard type one(s). For spark plug type, Refer to Spark Plug.
