Nissan Rogue (T33) 2021-Present Service Manual: P0365 Exhaust Camshaft Position Sensor

Nissan Rogue (T33) 2021-Present Service Manual / Engine :: Engine Control System / Kr15ddt :: Dtc/circuit Diagnosis / P0365 Exhaust Camshaft Position Sensor

DTC Description

DTC DETECTION LOGIC

  1. Exhaust camshaft position sensor signal is not sent to ECM during engine running.

  2. The pulse signal sent from the exhaust camshaft position sensor to ECM is not in the normal pattern during engine running.

DTC

CONSULT screen terms

(Trouble diagnosis content) 		DTC detection condition
P0365 00

CMP SEN/CIRC-B1

(Camshaft position sensor circuit bank 1) 		1 Diagnosis condition —
Signal (terminal) Exhaust camshaft position sensor signal
Threshold Exhaust camshaft position sensor signal is not sent to ECM during engine running
Diagnosis delay time —
2 Diagnosis condition —
Signal (terminal) Exhaust camshaft position sensor pulse signal
Threshold The pulse signal sent from the Exhaust camshaft position sensor to ECM is not in the normal pattern during engine running
Diagnosis delay time —

POSSIBLE CAUSE

  • Harness or connectors

    • Exhaust camshaft position sensor circuit is open or shorted.

    • Sensor power supply 1 circuit is shorted.

  • Exhaust camshaft position sensor

  • Exhaust camshaft

  • Sensor power supply 1 circuit sensors

FAIL-SAFE

Engine Control System

Fail safe mode Nissan Ariya Vehicle behavior
Device fix mode

  • This mode fixes the electric IVT control actuator and the EVT control solenoid valve in the reference position.

  • A control signals is not transmitted to the EGR volume control valve and the EGR volume control is deactivated.

Stop/Start System

When a DTC is detected, the stop/start indicator lamp blinks slowly and the stop/start system operation is prohibited. When ECM detects error while operating the stop/start system, ECM restarts the engine.

DTC Confirmation Procedure

CHECK DTC PRIORITY

If DTC P0365 is displayed with DTC P06B0, first perform the trouble diagnosis for DTC P06B0.

Is applicable DTC detected?

YES>>

Perform diagnosis of applicable. Refer to DTC Description.

NO>>

GO TO 2.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure before conducting the next test.

  1. Turn ignition switch OFF and wait at least 10 seconds.

  2. Turn ignition switch ON.

  3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10.5 V at idling.

>>

GO TO 3.

PERFORM DTC CONFIRMATION PROCEDURE

  1. Keep the engine speed at more than 800 rpm for at least 5 seconds.

  2. Check 1st trip DTC.

Is 1st trip DTC detected?

YES>>

Refer to DTC Diagnosis Procedure.

NO-1>>

To check malfunction symptom before repair: Refer to Intermittent Incident.

NO-2>>

Confirmation after repair: INSPECTION END 

DTC Diagnosis Procedure

CHECK DTC PRIORITY

If DTC P0365 is displayed with DTC P06B0, first perform the trouble diagnosis for DTC P06B0.

Is applicable DTC detected?

YES>>

Perform diagnosis of applicable. Refer to DTC Description.

NO>>

GO TO 2.

CHECK EXHAUST CAMSHAFT POSITION SENSOR POWER SUPPLY CIRCUIT-1

  1. Turn ignition switch OFF.

  2. Disconnect exhaust camshaft position sensor harness connector.

  3. Turn ignition switch ON.

  4. Check the voltage between exhaust camshaft position sensor harness connector terminals.

    Exhaust camshaft position sensor

    Voltage

    (Approx.)
    Connector + −
    Terminals
    F45 1 2 5 V

Is the inspection result normal?

YES>>

GO TO 7.

NO>>

GO TO 3.

CHECK EXHAUST CAMSHAFT POSITION SENSOR POWER SUPPLY CIRCUIT-2

Check the voltage between exhaust camshaft position sensor harness connector and ground.

+ −

Voltage

(Approx.)
Exhaust camshaft position sensor
Connector Terminal
F45 1 Ground 5 V

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

GO TO 4.

CHECK EXHAUST CAMSHAFT POSITION SENSOR POWER SUPPLY CIRCUIT-3

  1. Turn ignition switch OFF.

  2. Disconnect ECM harness connector.

  3. Check the continuity between exhaust camshaft position sensor harness connector and ECM harness connector.

    + − Continuity
    Exhaust camshaft position sensor ECM
    Connector Terminal Connector Terminal
    F45 1 F71 94 Existed

Is the inspection result normal?

YES>>

GO TO 5.

NO>>

Repair or replace error-detected parts.

CHECK EXHAUST CAMSHAFT POSITION SENSOR GROUND CIRCUIT

  1. Turn ignition switch OFF.

  2. Disconnect ECM harness connector.

  3. Check the continuity between exhaust camshaft position sensor harness connector and ECM harness connector.

    + − Continuity
    Exhaust camshaft position sensor ECM
    Connector Terminal Connector Terminal
    F45 2 F71 110 Existed

    Also check harness for short to power.

Is the inspection result normal?

YES>>

GO TO 6.

NO>>

Repair or replace error-detected parts.

CHECK ECM GROUND CIRCUIT

Check the continuity between ECM harness connector and ground.

ECM Ground Continuity
Connector Terminal
F72 4 Ground Existed
E21 156
157
160

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Repair or replace error-detected parts.

CHECK EXHAUST CAMSHAFT POSITION SENSOR INPUT SIGNAL CIRCUIT

  1. Check the continuity between exhaust camshaft position sensor harness connector and ECM harness connector.

    + − Continuity
    Exhaust camshaft position sensor ECM
    Connector Terminal Connector Terminal
    F45 3 F71 90 Existed

  2. Also check harness for short to power.

Is the inspection result normal?

YES>>

GO TO 8.

NO>>

Repair or replace error-detected parts.

CHECK EXHAUST CAMSHAFT POSITION SENSOR

Refer to Component Inspection.

Is the inspection result normal?

YES>>

GO TO 9.

NO>>

Replace exhaust camshaft position sensor. Refer to Exploded View.

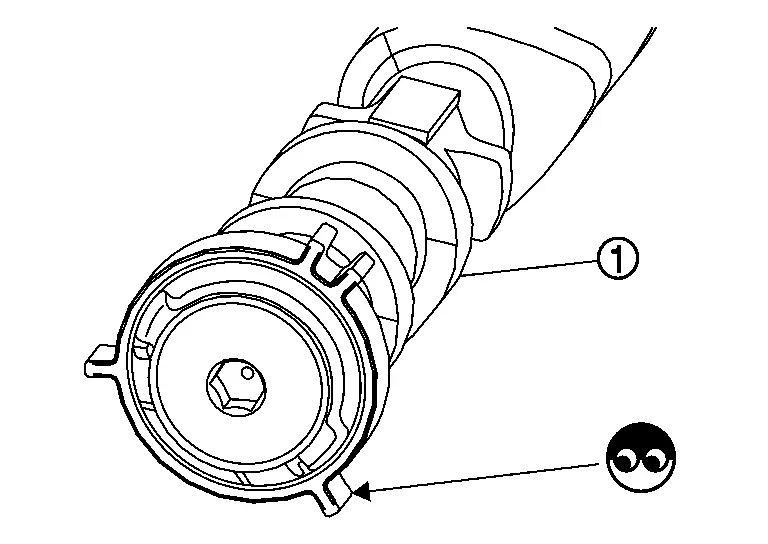

CHECK CAMSHAFT (EXT)

Check the following.

  • Accumulation of debris to the signal plate of camshaft rear end

  • Chipping signal plate of camshaft rear end

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Remove debris and clean the signal plate of camshaft rear end or replace camshaft. Refer to Exploded View.
