Automatic Speed Control Device (ascd)

Operation

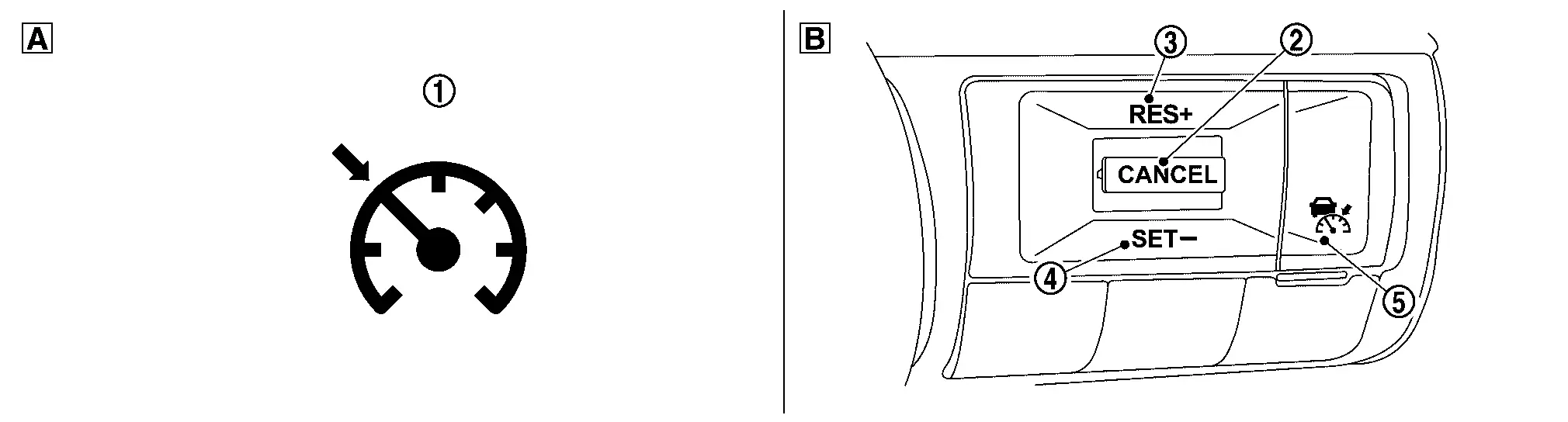

SWITCHES AND INDICATORS

ASCD indicator CANCEL switch RES+ switch
SET- switch MAIN switch
On the combination meter On the steering wheel

SET SPEED RANGE

ASCD system can be set the following vehicle speed.

Minimum speed (Approx.) Maximum speed (Approx.)
40 km/h (25 MPH) 144 km/h (89 MPH)

SWITCH OPERATION

Item Function
CANCEL switch Cancels the cruise control driving.

RES+ switch

RESUME/ACCELERATE

  • Resumes the set speed.

  • Increases speed incrementally during cruise control driving.

SET− switch

SET/COAST

  • Sets desired cruise speed.

  • Decreases speed incrementally during cruise control driving.
MAIN switch Master switch to activate the ASCD system.

Refer to System Description. for ASCD operating instructions.

Stop/start System

Switch Name and Function

SWITCHES AND INDICATORS

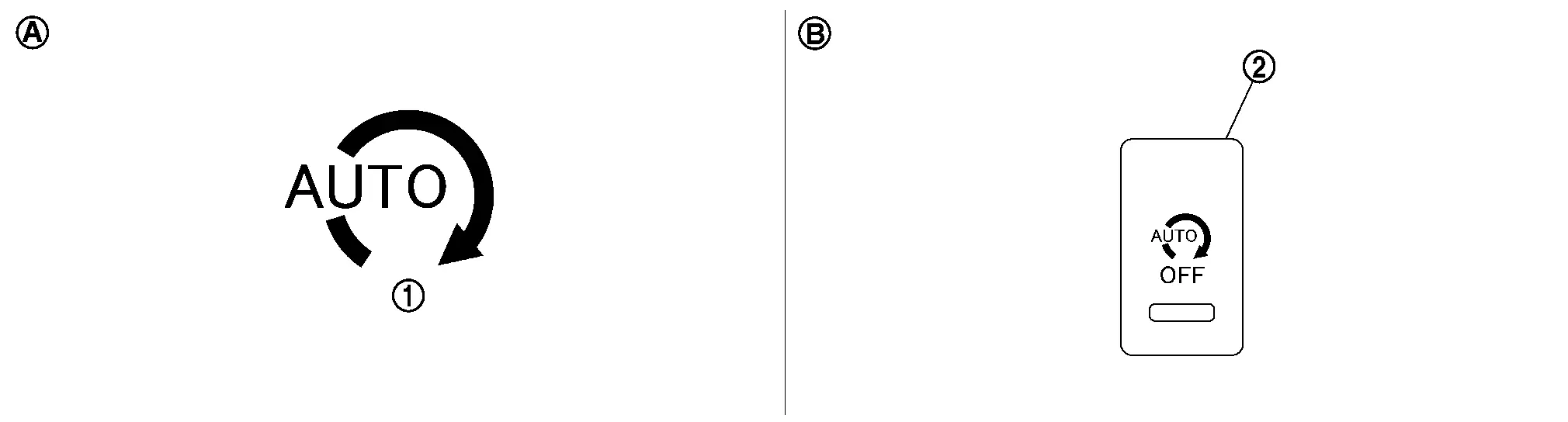

1. Stop/start indicator 2. Stop/start OFF switch
A. On the information display B. Lower instrument panel (driver side)

SYSTEM CONTROL CONDITION DISPLAY

Stop/start Indicator Status (Information Display)

System condition Nissan Ariya Vehicle condition Warning chime Stop/start indicator

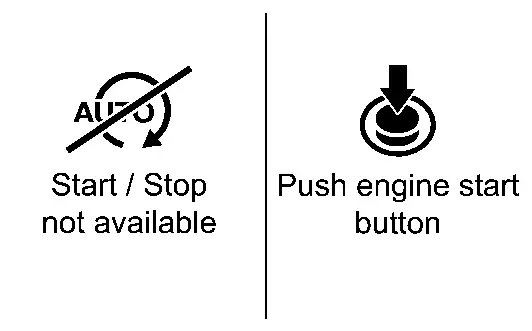

The engine does not restart With intelligent key system Hood open*1 Sound

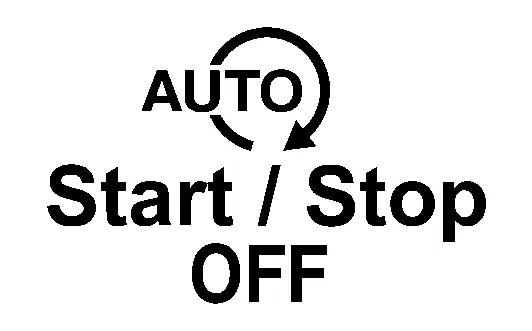

The stop/start system is OFF When the stop/start OFF switch is ON.*2 —

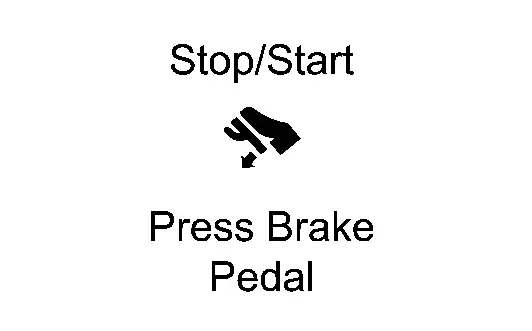

When the brake pedal is not enough pressure. — 　

　

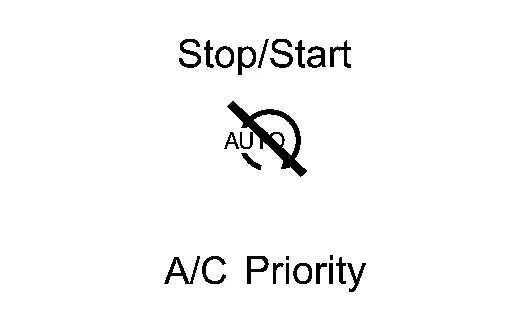

When A/C is prioritized. —

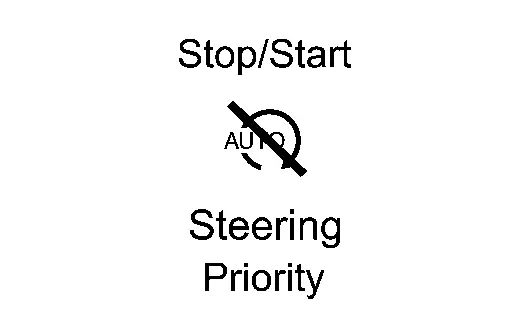

When the steering wheel is being operated. —

Others — —

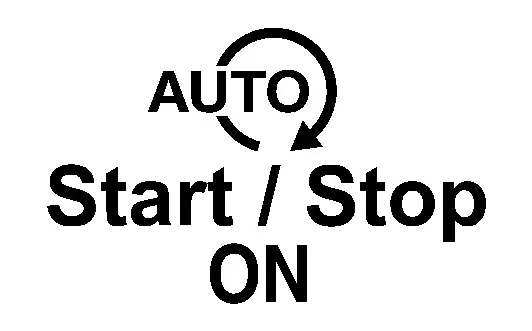

The stop/start system is ON. When the stop/start OFF switch is OFF.*3 —

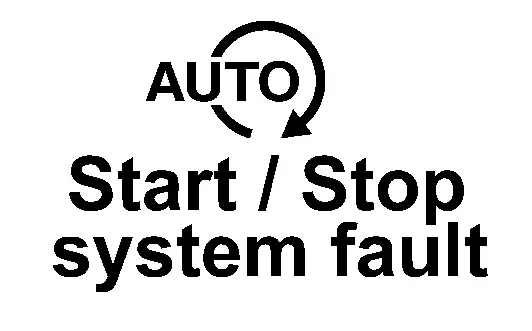

Fail-Safe Malfunction of stop/start system —

*1: Engine is stalled after alert for 1.5 seconds.

*2: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from OFF to ON.

*3: This is indicated only for 1.5 seconds after the stop/start OFF switch is turned from ON to OFF.
