Preparation

Special Service Tools

Tool number

Tool name 		— Description

KV101207S0

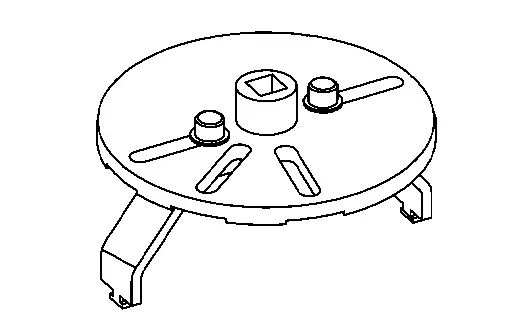

Unified fuel lock ring wrench

Removing and installing lock ring

(NI-45747)

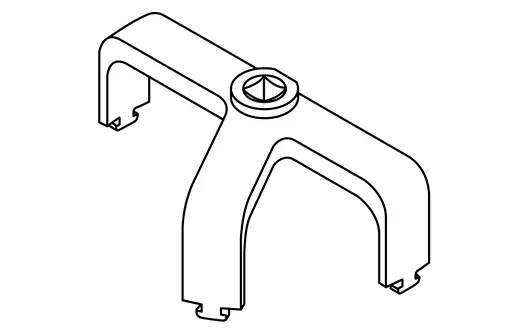

Fuel tank lock ring wrench

Always Replace With New Parts

Never Reuse These Parts Part Code For additional information
Plate-lock, fuel guage 17343 Exploded View
Packing-fuel guage 17342Q Exploded View
Evap control system pressure sensor 22365 Exploded View
Evap canister vent control valve 14935 Exploded View
