Engine Control System

ENGINE CONTROL SYSTEM : Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name 		  Description

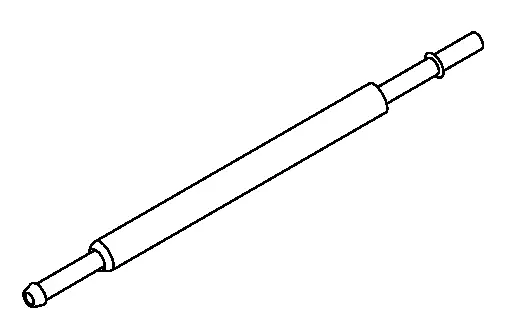

KV10120000

( — )

Fuel tube adapter

Measures fuel pressure

ENGINE CONTROL SYSTEM : Commercial Service Tools or/and Repair Part

Tool name

(TechMate No.) 		Description

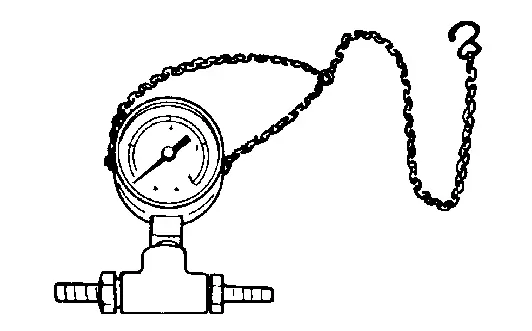

Fuel pressure gauge

( — )

Measuring fuel pressure

NOTE:

Use the pressure gauge which can measure 690 kpa (6.9 bar, 7.0kg/cm2, 100 psi) or more.

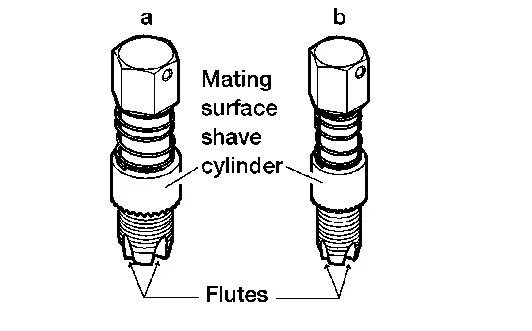

Oxygen sensor thread cleaner

i.e.: (NI-43897-18)

(NI-43897-12)

Reconditioning the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below.

a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor

b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor

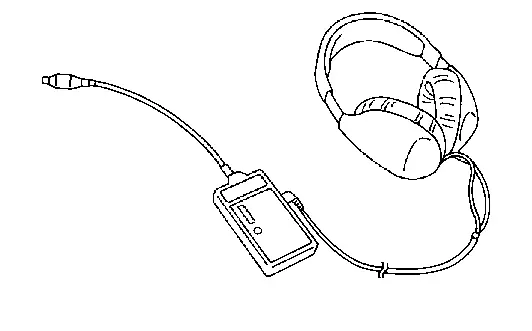

Leak detector

i.e.: (NI-41416)

Locates the EVAP leak

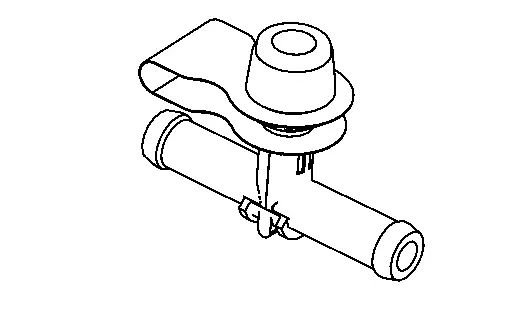

EVAP service port adapter

i.e.: (NI-41413-OBD)

Applies positive pressure through EVAP service port

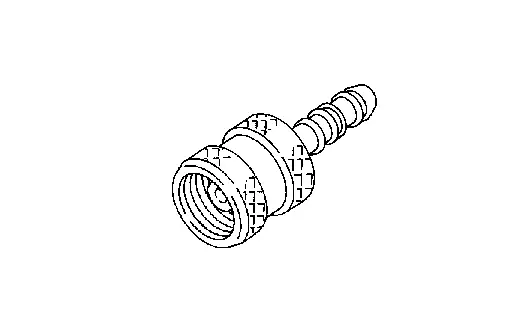

EVAP service port

Connects pressure pump to EVAP line

(Par No. 149393S500)

NOTE:

This tool is used if the vacuum delay valve does not have EVAP service port.

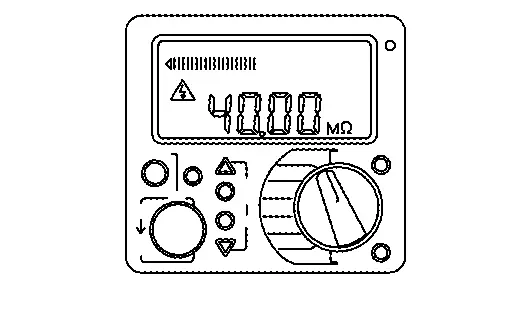

Insulation resistance tester (Multi tester)

Measuring insulation resistance, voltage, and resistance
