System Description

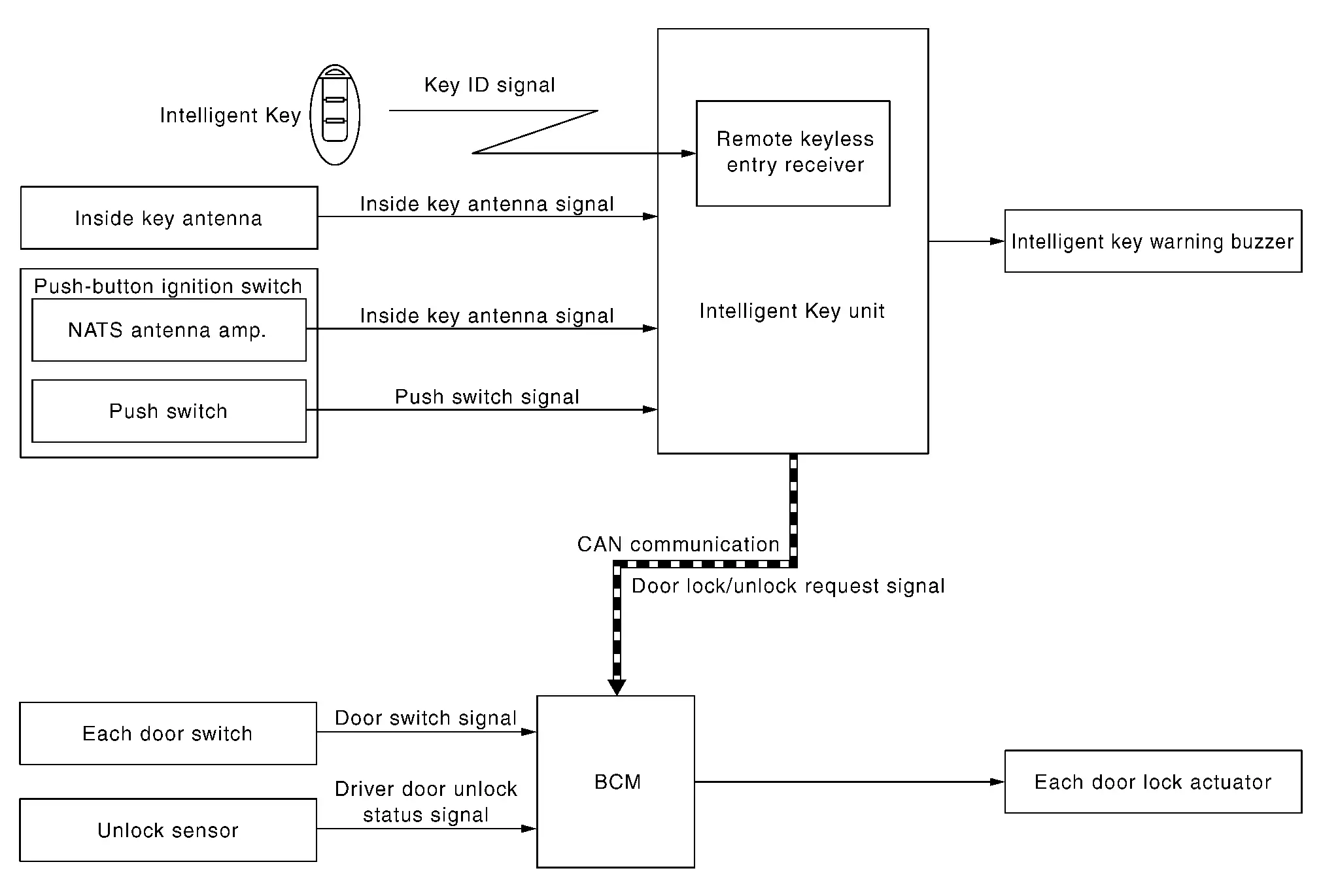

SYSTEM DIAGRAM

BASIC OPERATION

Key reminder is the function that prevents the key from being left in the vehicle.

Key reminder has the following 2 functions.

Key remainder function Operation condition Operation
Front door LH closed* When all doors other than front door LH are locked, front door LH locks within 0.3 seconds after front door LH is closed All doors unlock
Door is open to closed

When all of the following conditions are satisfied

  • Locked all doors with door lock/unlock switch

  • [Any door: open] → [all doors: closed]

  • Registered Intelligent Key is inside the Nissan Ariya vehicle

  • All doors unlock

  • Honk Intelligent Key warning buzzer

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks accidentally but unlock operation is perform in these cases.

NOTE:

The above function operates when the Intelligent Key is inside the Nissan Ariya vehicle. However, there may be times when the Intelligent Key cannot be detected, and this function does not operate when the Intelligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system sometimes does not operate if the Intelligent Key is in the door pocket for the open door.
