Nissan Rogue (T33) 2021-Present Service Manual: Intelligent Key System/engine Start Function

System Description

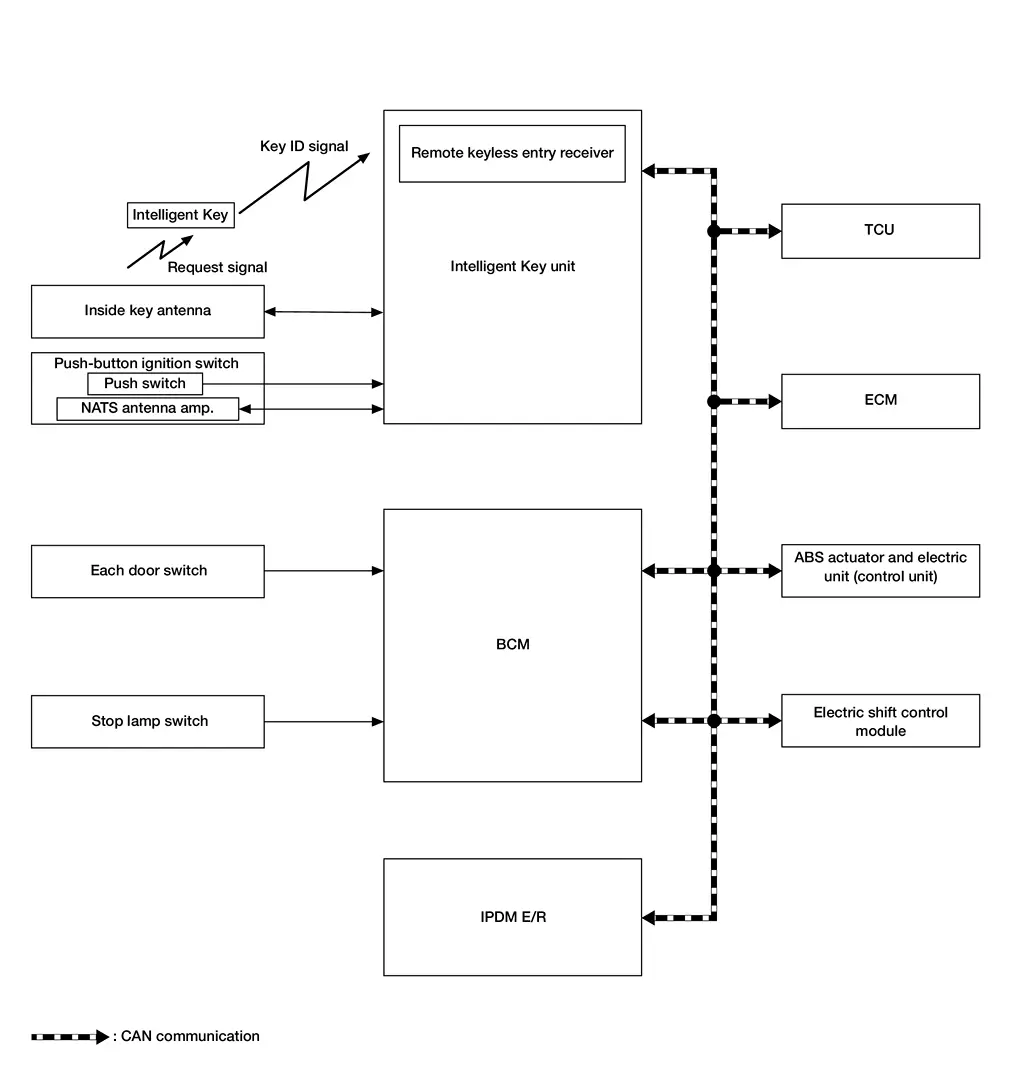

SYSTEM DIAGRAM

BCM INPUT/OUTPUT SIGNAL CHART

Input Signal Item

Output Signal Item

INTELLIGENT KEY UNIT INPUT/OUTPUT SIGNAL CHART

Input Signal Item

Output Signal Item

SYSTEM DESCRIPTION

• The engine start function of Intelligent Key system makes it possible to start and stop the engine without using the key, based on the electronic ID verification. The electronic ID verification is performed between Intelligent Key unit and Intelligent Key when the push-button ignition switch is pressed while the Intelligent Key is within the detection area of inside key antenna.

  NOTE:

  The driver should carry the Intelligent Key at all times.

• Intelligent Key have ID (Key ID). It can perform the door lock/unlock operation and the push-button ignition switch operation when the registered Intelligent Key is carried.

• If the ID is successfully verified, when push-button ignition switch is pressed, engine can be started.

• Up to 4 Intelligent Keys can be registered (Including the standard Intelligent Key) upon request from the customer.

  NOTE:

  For any functions other than engine start function of Intelligent Key system. Refer to System Description.

PRECAUTIONS FOR INTELLIGENT KEY SYSTEM

The transponder (the chip for NATS ID verification) is integrated into the Intelligent Key. It is integrated into the mechanical key. Therefore, ID verification cannot be performed by mechanical key only.

In that case, NATS ID verification can be performed when Intelligent Key backside is contacted to push-button ignition switch while brake pedal is depressed. If verification result is OK, engine can be started.

OPERATION WHEN INTELLIGENT KEY IS CARRIED

1. When the push-button ignition switch is pressed, the Intelligent Key unit activates the inside key antenna and transmits the request signal to the Intelligent Key.

2. The Intelligent Key receives the request signal and transmits the NATS ID signal to the Intelligent Key unit.

3. Intelligent Key unit receives the NATS ID signal verifies it with the registered ID.

4. When the ignition switch is turned to ON, Intelligent Key unit performs ID verification with the ECM. When the result is OK, engine start is permitted.

5. When ECM detects that the start engine conditions* are satisfied, it transmits a starter cut relay request signal to BCM.

6. When BCM receives a starter cut relay request signal from ECM, the starter cut relay is turned ON.

7. When starter cut relay is turned ON, IPDM E/R turns ON the starter relay and drives the starter motor.

8. When BCM receives an engine status signal from ECM, it turns the starter relay and starter cut relay OFF and stops cranking.

   CAUTION:

   When the Intelligent Key is carried outside of the Nissan Ariya vehicle (outside key antenna detection area) while the power supply is in the ON position, even if the engine start condition* is satisfied, the engine cannot be started.

*: For the engine start condition, refer to “IGNITION SWITCH POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION”.

OPERATION RANGE

Engine can be started when Intelligent Key is inside the vehicle. However, sometimes engine may not start when Intelligent Key is on instrument panel or in glove box.

IGNITION SWITCH POSITION CHANGE TABLE BY PUSH-BUTTON IGNITION SWITCH OPERATION

The ignition switch position can be changed by the following operations.

NOTE:

• When an Intelligent Key is within the detection area of inside key antenna or when Intelligent Key backside is contacted to push-button ignition switch, it is equivalent to the operations below.

• When starting the engine, the BCM monitors under the engine start conditions.

  • Brake pedal operation condition

  • Selector lever position

  • Nissan Ariya Vehicle speed

Vehicle speed: less than 2.5 MPH (4 km/h)

NOTE:

If the Intelligent Key unit cannot detect that the Intelligent Key is in the Nissan Ariya vehicle, ignition switch cannot be turned OFF.

Vehicle speed: 2.5 MPH (4 km/h) or more

Emergency stop operation

• Press and hold the push-button ignition switch for 2 seconds or more.

• Press the push-button ignition switch 3 times or more within 1.5 seconds.

REMOTE ENGINE START FUNCTION

Remote engine start function enables engine to be started from vehicle outside by operating remote engine start button of Intelligent Key or cellular phone.

In the same way as the Intelligent Key, the engine can be started by operating a cellular phone using the Telematics system function.

Engine Start Procedures

The following operation enables the engine to be started.

• Press LOCK button of Intelligent Key, and then within 5 seconds, press and hold remote engine start button of Intelligent Key for 2 seconds or more.

• Perform engine start operation using a cellular phone.

Engine does not start while the vehicle is in the following status.

• All doors are UNLOCK or any door is open.

• Hood is open.

• A registered Intelligent Key is in passenger room.

• Shift position is other than P.

• Nissan Ariya Vehicle security alarm is in operation.

• Hazard lamp is in operation.

Engine Stop Procedures

The following operation enables the engine to be stopped.

• Press remote engine start button of Intelligent Key.

• Perform engine stop operation using a cellular phone.

• Push-button ignition switch is operated.

Engine stops when the vehicle status changes to the following status.

• 10 minutes are passed since engine start.

• Hood is open.

• Shift position is shifted to a position other than P.

• Nissan Ariya Vehicle security alarm starts to operate.

NOTE:

While engine is in operation by Intelligent Key, engine operation time can be extended for 10 minutes. To extend engine operation time, press LOCK button of Intelligent Key, and then within 5 seconds, press and hold remote engine start button of Intelligent Key for 2 seconds or more.

Operation Area

The engine can be started when the vehicle is under the following conditions.

• The remote engine start operating range is approximately 60 m (197 ft.) from the vehicle.

• The Nissan Ariya vehicle is within the communication range of the Infiniti Connection™ data center.
