Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: How to enable/disable the I-LI system

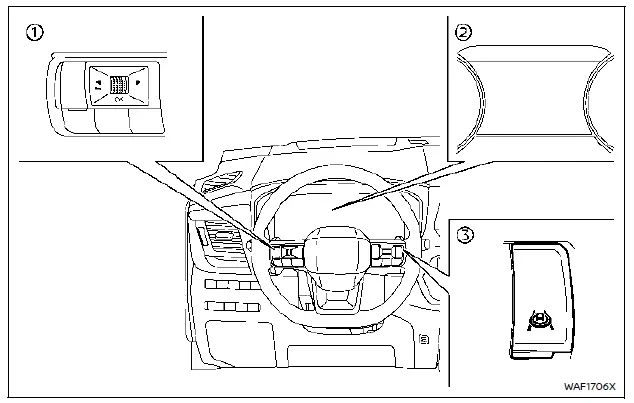

- Use steering-wheel controls
- Open vehicle information display
- Use the ProPILOT Assist switch for activation
To adjust I-LI settings on the Nissan Rogue:
- Push the
button until “Settings” appears. - Select “Driver Assistance”.
- Select “Lane Assist”.
- Select “Intervention” to enable or disable I-LI.
NOTE:
- Turning on ProPILOT Assist enables I-LI and I-BSI automatically unless disabled manually.
- Your selected settings are stored even after restarting the engine.
I-LI system operation
I-LI ON indicator
I-LI intervention indicator
Vehicle information display
ProPILOT Assist switch
When the Nissan Rogue approaches a lane boundary, the steering wheel vibrates and the I-LI i ...
Setting lane sensitivity
Lane sensitivity controls how quickly the Nissan Rogue reacts to lane drift:
Go to “Settings” → “Driver Assistance”.
Select “Lane Assist”.
Choose “Lane Sensitivity”.
Strong
...
