Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Engine compartment check locations

Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide / Do-it-yourself / Engine compartment check locations

KR15DDT engine model

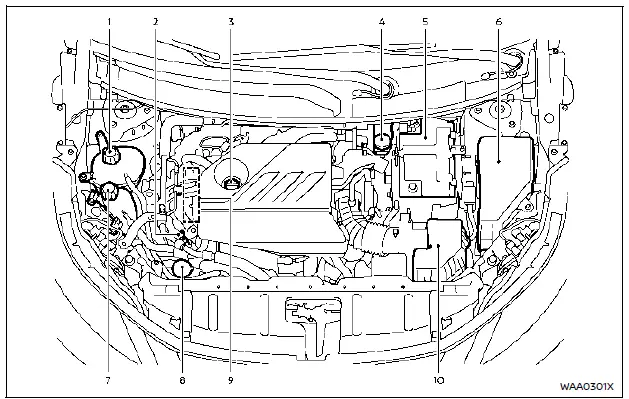

Nissan Rogue. Engine compartment check locations

  1. Engine coolant reservoir
  2. Engine oil dipstick
  3. Engine oil filler cap
  4. Brake fluid reservoir
  5. Battery
  6. Fuse/fusible link box
  7. Intercooler coolant reservoir
  8. Window washer fluid reservoir
  9. Drive belt
  10. Air cleaner

NOTE:

Your Nissan Rogue may not be equipped with an engine cover.

    Maintenance precautions
    When working on the Nissan Rogue, follow these precautions to avoid personal injury or vehicle damage. WARNING Park on level ground, apply the parking brake and block the wheels...
    Engine cooling system
    Basic information The cooling system is factory-filled with a pre-mixed 50/50 ratio of Genuine NISSAN Long Life Antifreeze/Coolant (blue) and water. This mixture protects the Ni...
