Nissan Rogue (T33) 2021-Present Service Manual: Can Gateway :: Removal and Installation. 8ch Can Gateway

Nissan Rogue (T33) 2021-Present Service Manual / Electrical & Power Control :: Lan System / Can Gateway :: Removal and Installation. 8ch Can Gateway

8ch Can Gateway

Removal and Installation

NOTE:

Perform ADDITIONAL SERVICE WHEN REPLACING 8CH CAN GATEWAY. Refer to Work Procedure.

REMOVAL

Remove combination meter. Refer to the following.

  • Full TFT meter: Removal and Installation

  • 7 inch information display: Removal and Installation

Remove instrument lower panel LH. Refer to Removal and Installation.

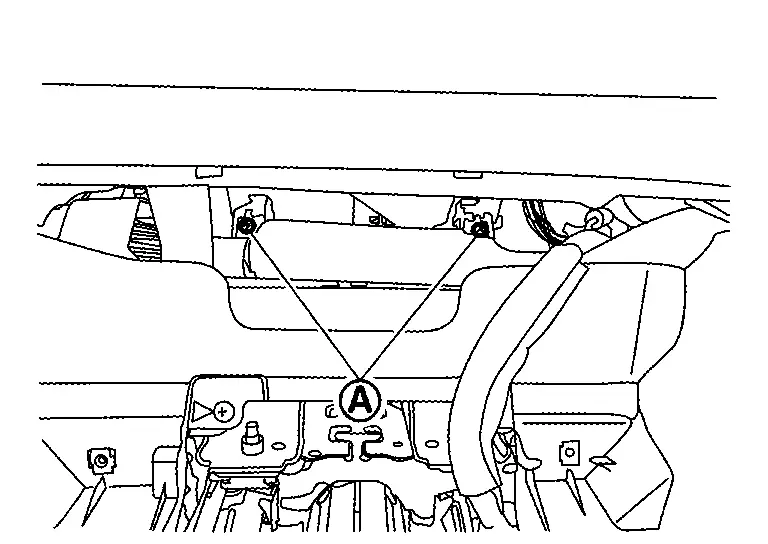

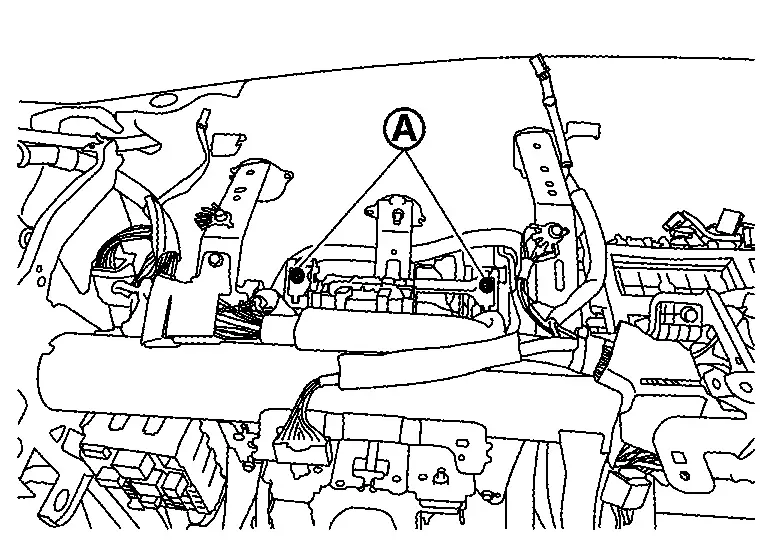

Remove mounting screw (A).

  • Without ethernet harness connector

  • With ethernet harness connector

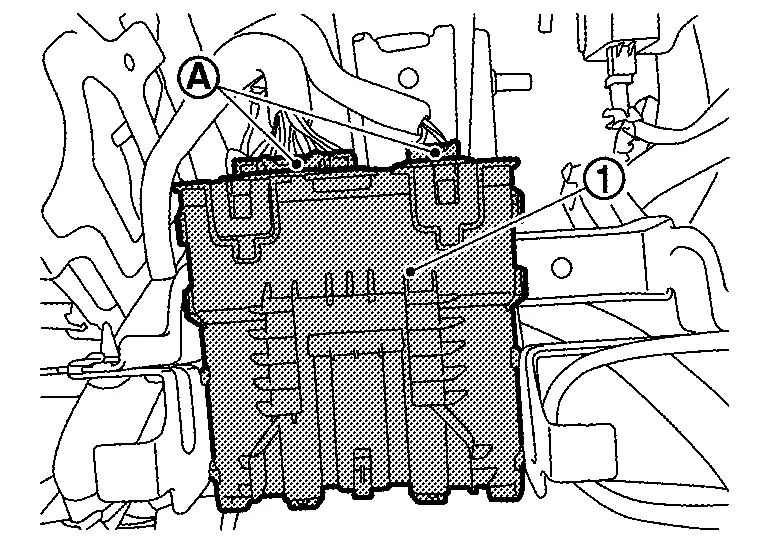

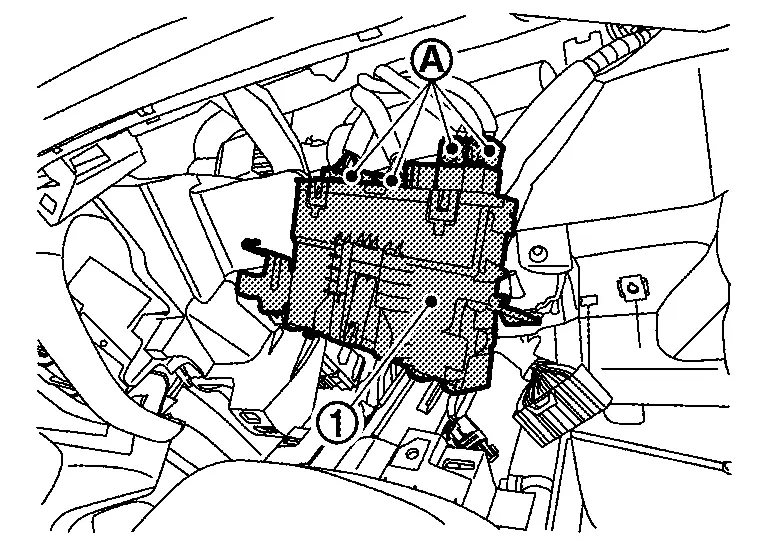

Remove harness connector (A) to remove 8CH CAN gateway (1).

  • Without ethernet harness connector

  • With ethernet harness connector

INSTALLATION

Install in the reverse order of removal.

    Can Gateway. Wiring Diagram. Can Gateway System
    Can Gateway System Wiring Diagram CAN GATEWAY SYSTEM - WITH TYPE A METERRefer to Wiring Diagram.CAN GATEWAY SYSTEM - WITH TYPE B METERRefer to Wiring Diagram.
