Exploded View

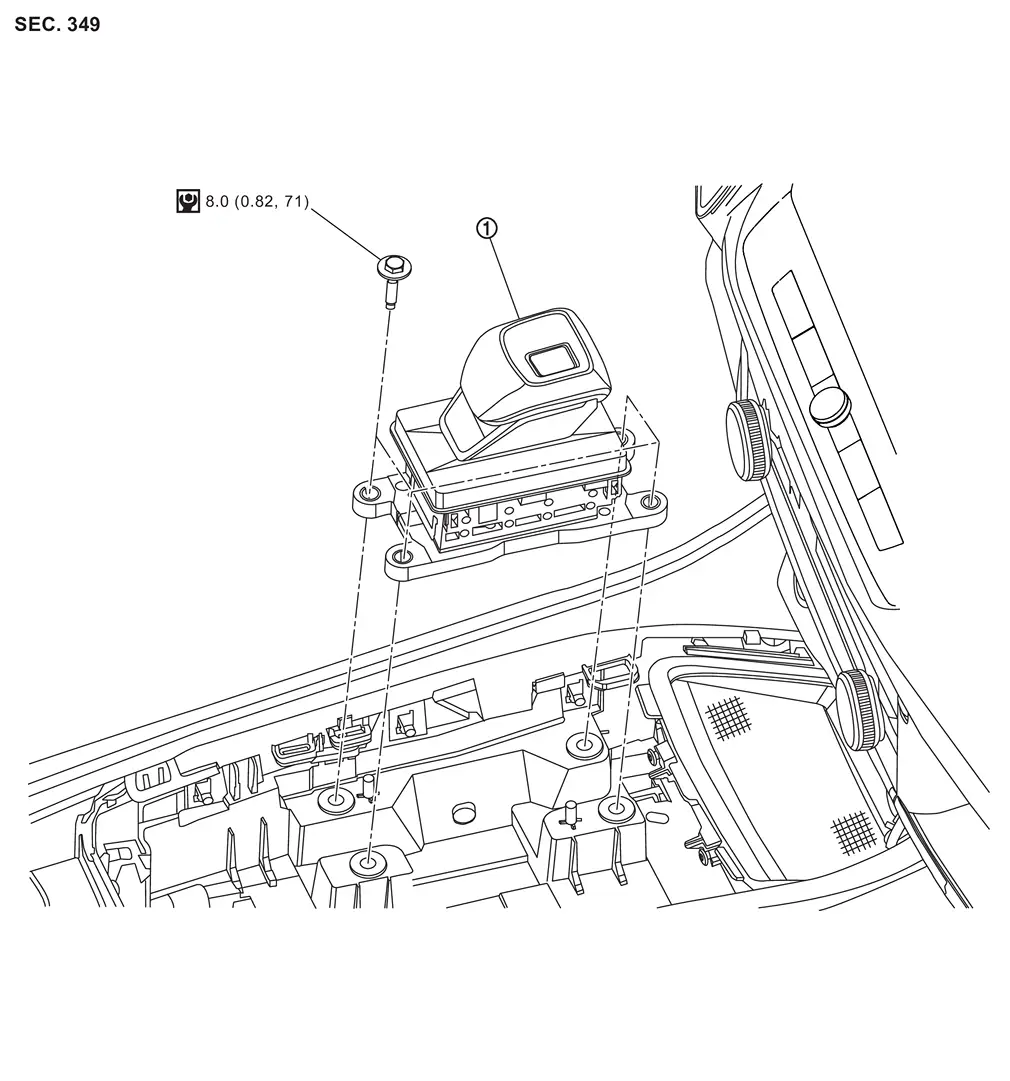

1. Electric shift selector assembly

: N·m (kg-m, in-lb)

Removal and Installation

CAUTION:

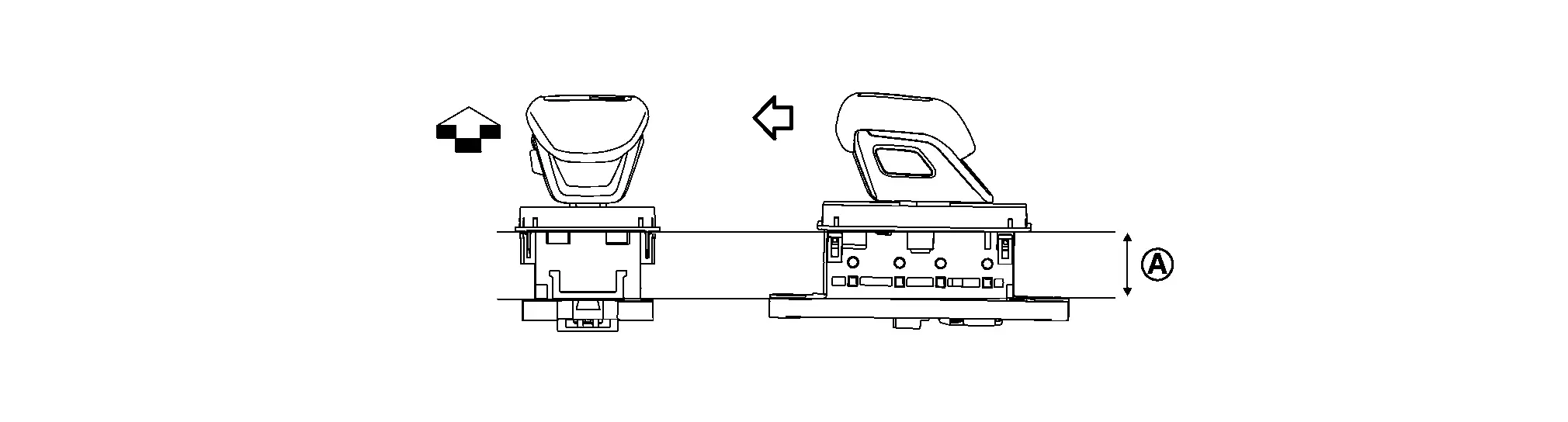

  • As part in the figure contains a strong magnet, persons with an electro-medical apparatus should keep it away from his/her body. Otherwise it may cause the electro-medical apparatus to malfunction.

    : Nissan Ariya Vehicle front

  • Keep it away from magnetic objects such as magnetic cards and metal products (e.g. watches).

  • Never subject the electric shift selector to impact by dropping or hitting, water splash or high humidity.

REMOVAL

Disconnect the negative battery terminal. Refer to Exploded View.

Remove console finisher assembly. Refer to Removal and Installation.

Remove four bolts and remove electric shift selector.

Disconnect the harness connector from the electric shift selector.

INSTALLATION

Note the following, and install in the reverse order of removal.

  • When installing electric shift selector, check that the locating pin is correctly aligned with the shift selector bracket.

  • Perform inspection after installation. Refer to Inspection.

Inspection

  • Check the CVT position. Refer to Inspection.
