Nissan Rogue (T33) 2021-Present Service Manual: Cvt: Ge0f14a :: Periodic Maintenance. Cvt Fluid

Cvt Fluid

Inspection

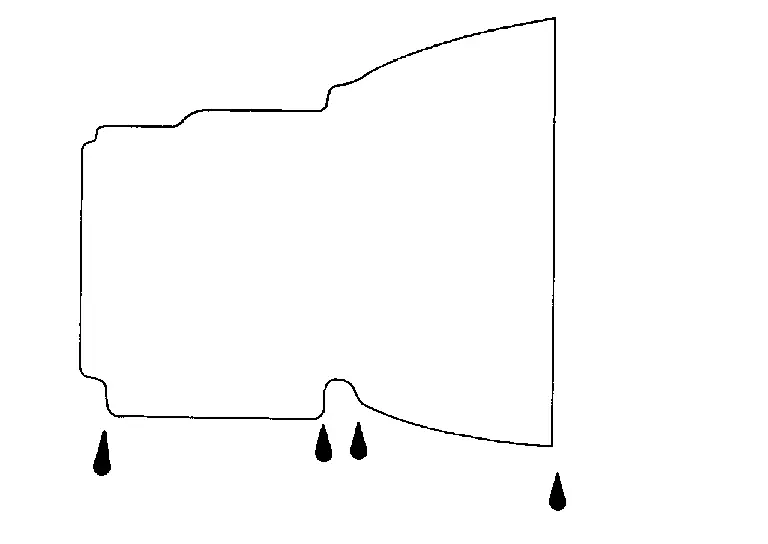

• Check transaxle surrounding area (oil seal and plug etc.) for fluid leakage.

• If transaxle appears to have oil seepage or a leak, follow the steps below to assist in a correct diagnosis.



Thoroughly clean off the area of the suspected leak.

Insert 1 fluid ounce of fluorescent oil dye into CVT.

• When removing CVT fluid charging pipe cap, use CVT charge pipe cap release tool [SST: — (NI-52611)].

CAUTION:

Never reuse CVT fluid charging pipe cap.

Drive Nissan Ariya vehicle for a minimum of 10 minutes.

Inspect for leaks with A/C Dye Kit (Refrigerant dye leak detection kit).

NOTE:

• Corrosion protection chemicals or assembly lubricants may cause dust to accumulate (gather) on the transaxle and have the appearance of an oil leak. Neither of these requires corrective action.

• If no fluorescent oil trace/leak is found, no action is necessary.

• If fluorescent oil trace/leak is found repair or replace damaged parts and adjust CVT fluid level. Refer to Adjustment.

Replacement

CAUTION:

• Always use shop paper. Never use shop cloth.

• Replace a drain plug gasket with new ones at the final stage of the operation when installing.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.

• After replacement, always perform CVT fluid leakage check.

Select “Data Monitor” in “TRANSMISSION” using CONSULT.

Select “FLUID TEMP” and confirm that the CVT fluid temperature is 40°C (104°F) or less.

Check that the shift position is in the “P” position, then completely engage the parking brake.

Lift up the Nissan Ariya vehicle.

Remove the drain plug and drain the CVT fluid from the oil pan. Refer to Exploded View.

Install the drain plug to oil pan.

CAUTION:

Drain plug gasket use the old one.

Remove the overflow plug from converter housing.

: Nissan Ariya Vehicle front

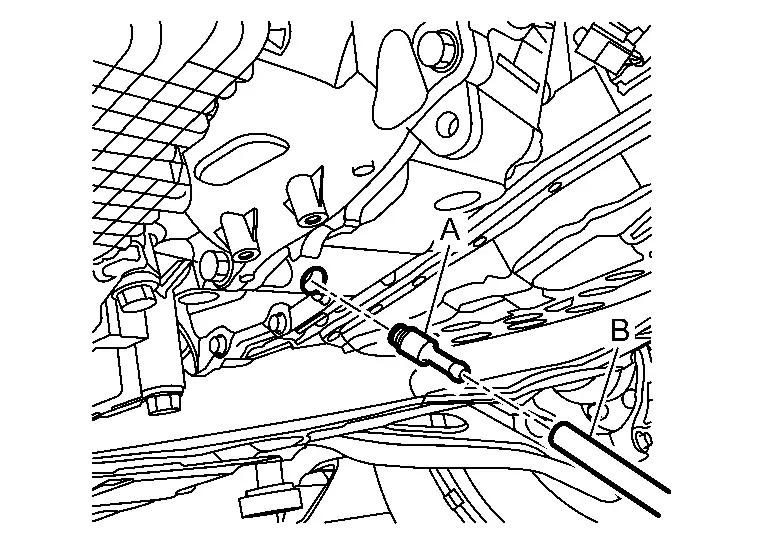

Install the charging pipe set [SST: KV311039S0 (—)] with CVT stand pipe adapter kit [SST: — (NI-52584)](A) into the overflow plug hole.

CAUTION:

Tighten the charging pipe by hand.

Install the ATF changer hose to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging pipe until it stops.

Fill approximately 3 liter (3-1/8 US qt, 2-5/8 lmp qt) of the CVT fluid.

Remove the ATF changer hose and charging pipe, then install the overflow plug.

NOTE:

Perform this work quickly because CVT fluid leaks.

Lower the Nissan Ariya vehicle.

Start the engine.

While depressing the brake pedal, shift to the entire position from “P” to “D”, and shift to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35°C (95°F) to 45°C (113°F).

Stop the engine.

Lift up the Nissan Ariya vehicle.

Remove the drain plug, and then drain CVT fluid from oil pan.

Repeat steps 8 to 18 (one time).

Tighten the drain plug to the specified torque. Refer to Exploded View.

Remove the overflow plug.

Install the charging pipe set [SST: KV311039S0 (—)] with CVT stand pipe adapter kit [SST: — (NI-52584)] into the overflow plug hole.

CAUTION:

Tighten the charging pipe by hand.

Install the ATF changer hose to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging pipe until it stops.

Fill approximately 3.5 litter (3-3/4 US qt, 3-1/8 lmp qt) of the CVT fluid.

Remove the ATF changer hose and charging pipe, then install the overflow plug.

NOTE:

Perform this work quickly because CVT fluid leaks.

Lower the Nissan Ariya vehicle.

Start the engine.

While depressing the brake pedal, shift to the entire position from “P” to “D”, and shift to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35°C (95°F) to 45°C (113°F).

Lift up the Nissan Ariya vehicle.

Remove the overflow plug and confirm that the CVT fluid is drained from the overflow plug hole.

CAUTION:

Perform this work with the Nissan Ariya vehicle idling.

NOTE:

If the CVT fluid is not drained, refer to “Adjustment” and refill with the CVT fluid. Refer to Adjustment.

When the flow of CVT fluid slows to a drip, tighten the overflow plug to the specified torque. Refer to Exploded View.

CAUTION:

Never reuse O-ring.

Lower the Nissan Ariya vehicle.

Select “Data Monitor” in “TRANSMISSION” using CONSULT.

Select “CONFORM CVTF DETERIORTN”.

Select “Erase”.

Stop the engine.

Adjustment

CAUTION:

• During adjustment of the CVT fluid level, check CONSULT so that the oil temperature may be maintained from 35 to 45°C (95 to 113°F).

• Maintain specified engine idle speed during CVT fluid level adjustment. Refer to IDLE SPEED : Service Data.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.

Check that the shift position is in the “P” position, then completely engage the parking brake.

Start the engine.

Adjust the CVT fluid temperature to be approximately 40°C (104°F).

NOTE:

The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the “FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.

While depressing the brake pedal, shift to the entire position from “P” to “D”, and shift to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

Lift up the Nissan Ariya vehicle.

Check that there is no CVT fluid leakage.

Remove the overflow plug from converter housing.

: Nissan Ariya Vehicle front

Install the charging pipe set [SST: KV311039S0 (—)] with CVT stand pipe adapter kit [SST: — (NI-52584)] (A) into the overflow plug hole.

CAUTION:

Tighten the charging pipe by hand.

Install the ATF changer hose to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging pipe until it stops.

Fill approximately 0.5 liter (1/2 US qt, 1/2 lmp qt) of the CVT fluid.

Remove the ATF changer hose from the charging pipe, and check that the CVT fluid drains out from the charging pipe. If it does not drain out, perform charging again.

CAUTION:

Perform this work with the Nissan Ariya vehicle idling.

When the flow of CVT fluid slows to a drip, remove the charging pipe from the converter housing.

Tighten the overflow plug to the specified torque. Refer to Exploded View.

CAUTION:

Never reuse O-ring.

Lower the Nissan Ariya vehicle.

Stop the engine.

Refilling

CAUTION:

• Always use shop paper. Never use shop cloth.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.

• After replacement, always perform CVT fluid leakage check.

• Use only Genuine CVT fluid. Using transmission fluid other than Genuine CVT fluid will damage the CVT, which is not covered by the warranty.

Check that the shift position is in the “P” position, then completely engage the parking brake.

Lift up the Nissan Ariya vehicle.

Remove the overflow plug from converter housing.

: Nissan Ariya Vehicle front

Install the charging pipe set [SST: KV311039S0 (—)] with CVT stand pipe adapter kit [SST: — (NI-52584)] (A) into the overflow plug hole.

CAUTION:

Tighten the charging pipe by hand.

Install the ATF changer hose to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging pipe until it stops.

Fill the CVT fluid. For the amount of CVT fluid to refill, refer to the following table.

Remove the ATF changer hose and charging pipe, then install the overflow plug.

NOTE:

Perform this work quickly because CVT fluid leaks.

Lower the Nissan Ariya vehicle.

Start the engine and let it idle for 2 minutes.

While depressing the brake pedal, shift to each position from “P” to “D (or L or Ds)”, and then shift to “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35°C (95°F) to 45°C (113°F).

Lift up the Nissan Ariya vehicle.

Remove the overflow plug and confirm that the CVT fluid is drained from the overflow plug hole.

CAUTION:

Perform this work with the Nissan Ariya vehicle idling.

NOTE:

If the CVT fluid is not drained, refer to “Adjustment” and refill with the CVT fluid. Refer to Adjustment.

When the flow of CVT fluid slows to a drip, tighten the overflow plug to the specified torque. Refer to Exploded View.

CAUTION:

Never reuse O-ring.

Lower the Nissan Ariya vehicle.

Select “Work Support” in “TRANSMISSION” using CONSULT.

Select “CONFORM CVTF DETERIORTN”.

Select “Erase”.

Stop the engine.
