Nissan Rogue (T33) 2021-Present Service Manual: Component Parts

Nissan Rogue (T33) 2021-Present Service Manual / Driver Information & Multimedia :: Meter, Warning Lamp & Indicator / Type B :: System Description / Component Parts

Meter System

Component Parts Location

2WD MODELS

A. View with rear seat removed B. View with engine assembly removed
No. Component Function
1. Washer fluid level switch (if so equipped)

Transmits the washer fluid level switch signal to the combination meter.

Refer to Component Parts Location for detailed component location.
2. Ambient sensor Refer to Ambient Sensor.
3. TCM (Transmission Control Module)

Transmits each signal to the combination meter via CAN communication.

Refer to Component Parts Location for detailed component location.
4. Brake fluid level switch

Transmits the brake fluid level switch signal to the combination meter.

Refer to Component Parts Location for detailed component location.
5. ECM (Engine Control Module)

Transmits each signal to the combination meter via CAN communication.

Refer to Component Parts Location for detailed component location.
6. Meter speaker Refer to Meter Speaker.
7. BCM (Body Control Module)

Based on the signals received from various units and switches, transmits the buzzer output signal to the combination meter via CAN communication.

Refer to Component Parts Location for detailed component location.
8. Combination meter Refer to Combination Meter.
9. Illumination control switch Refer to Illumination Control Switch.
10. Steering switches Refer to Steering Switches.
11. Fuel level sensor unit, fuel pump and FPCM (Fuel Pump Control Module) (fuel level sensor) (main) Refer to Fuel Level Sensor Unit, Fuel Pump and FPCM (Fuel Level Sensor) (Main) - 2WD Models.
12. Oil level sensor Refer to Oil Level Sensor.

AWD MODELS

A. View with rear seat removed B. View with engine assembly removed
No. Component Function
1. Washer fluid level switch (if so equipped)

Transmits the washer fluid level switch signal to the combination meter.

Refer to Component Parts Location for detailed component location.
2. Ambient sensor Refer to Ambient Sensor.
3. TCM (Transmission Control Module)

Transmits each signal to the combination meter via CAN communication.

Refer to Component Parts Location for detailed component location.
4. Brake fluid level switch

Transmits the brake fluid level switch signal to the combination meter.

Refer to Component Parts Location for detailed component location.
5. ECM (Engine Control Module)

Transmits each signal to the combination meter via CAN communication.

Refer to Component Parts Location for detailed component location.
6. Meter speaker Refer to Meter Speaker.
7. BCM (Body Control Module)

Based on the signals received from various units and switches, transmits the buzzer output signal to the combination meter via CAN communication.

Refer to Component Parts Location for detailed component location.
8. Combination meter Refer to Combination Meter.
9. Illumination control switch Refer to Illumination Control Switch.
10. Steering switches Refer to Steering Switch.
11. Fuel level sensor unit, fuel pump and FPCM (Fuel Pump Control Module) (fuel level sensor) (main) Refer to Fuel Level Sensor Unit, Fuel Pump and FPCM (Fuel Level Sensor) (Main) and Fuel Level Sensor Unit (Sub) - AWD Models.
12. Fuel level sensor unit (sub) (if so equipped) Refer to Fuel Level Sensor Unit, Fuel Pump and FPCM (Fuel Level Sensor) (Main) and Fuel Level Sensor Unit (Sub) - AWD Models.
13. Oil level sensor Refer to Oil Level Sensor.

Design

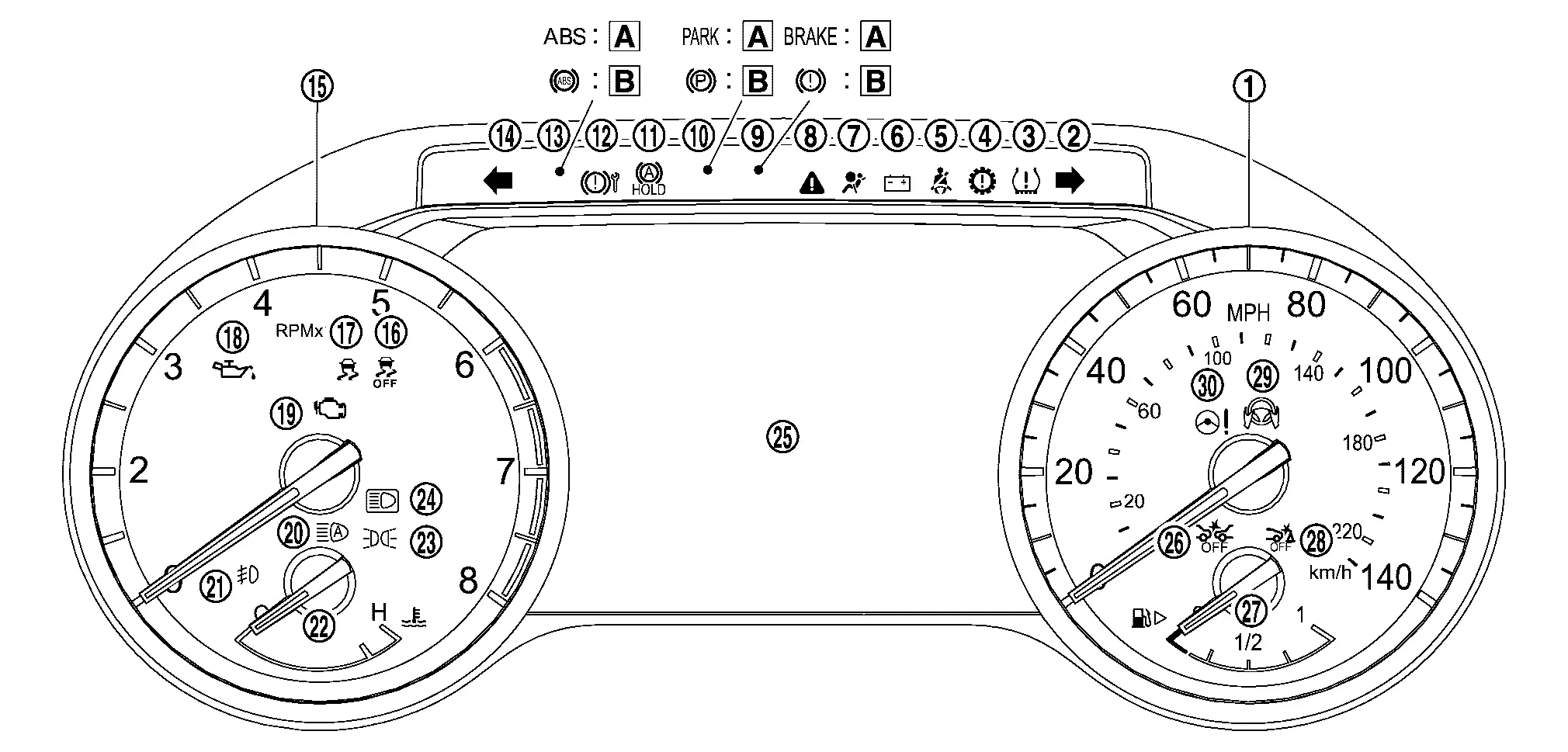

ARRANGEMENT OF COMBINATION METER

For U.S.A. Except for U.S.A.
No. Indicator lamp/Warning lamp Color Function
Speedometer − Refer to System Description.
Turn signal indicator lamp (RH) Green Refer to Turn Signal Indicator Lamp.
Low tire pressure warning lamp Yellow Refer to Low Tire Pressure Warning Lamp.
Electric shift warning lamp Red Refer to Electric Shift Warning Lamp.
Seat belt warning lamp Red Refer to Seat Belt Warning Lamp.
12V Battery Charge warning lamp Red Refer to 12V Battery Charge Warning Lamp.
SRS air bag warning lamp Red Refer to SRS Air Bag Warning Lamp.
Master warning lamp Yellow/Red Refer to Master Warning Lamp.
Brake warning lamp Red Refer to Brake Warning Lamp.
Electric parking brake indicator lamp Red Refer to Electric Parking Brake Indicator Lamp.
Automatic brake hold indicator lamp White/ Green Refer to Automatic Brake Hold Indicator Lamp.
Electric parking brake warning lamp Yellow Refer to Electric Parking Brake Warning Lamp.
ABS warning lamp Yellow Refer to ABS Warning Lamp.
Turn signal indicator lamp (LH) Green Refer to Turn Signal Indicator Lamp.
Tachometer − Refer to System Description.
VDC OFF indicator lamp Yellow Refer to VDC OFF Indicator Lamp.
VDC warning lamp Yellow Refer to VDC Warning Lamp.
Engine oil pressure warning lamp Red Refer to Engine Oil Pressure Warning Lamp.
Malfunction indicator lamp (MIL) Yellow Refer to Malfunction Indicator Lamp (MIL).
High beam assist indicator lamp Green Refer to High Beam Assist Indicator Lamp.
Front fog lamp indicator lamp Green Refer to Front Fog Lamp Indicator Lamp .
Engine coolant temperature gauge − Refer to System Description.
Position lamp indicator lamp Green Refer to Position Lamp Indicator Lamp.
High beam indicator lamp Blue Refer to High Beam Indicator Lamp.
Information display − Refer to System Description.
AEB warning lamp Yellow Refer to AEB Warning Lamp.
Fuel gauge − Refer to System Description.
RAB warning lamp Yellow Refer to RAB Warning Lamp.
Hands OFF warning lamp Red Refer to Hands OFF Warning Lamp.
Power steering warning lamp Yellow Refer to Power Steering Warning Lamp.

Combination Meter

Component Function Within The System

The combination meter controls the following items according to the signals received from each unit via CAN communication and the signals from switches and sensors.

  • Measuring instruments

    • Speedometer

    • Tachometer

    • Engine coolant temperature gauge

    • Fuel gauge

  • Indicator lamps

  • Warning lamps

  • Meter illumination control

  • Meter effect function

  • Information display

CLOCK SPECIFICATIONS

Operating voltage (V) 11 - 16
Accuracy (sec./day) Approx. ± 6

NOTE:

The time is displayed on the information display. When a time lag of more than the above described accuracy occurs, the combination meter battery power supply voltage may be low. In this case, check 12 V battery for malfunction causing low power supply voltage. Models with the navigation system are free of time lag resulted from low power supply voltage because of the synchronization with GPS signals.

Individual Component Function

Combination meter indicates the condition of the vehicle.

Component Operation

Refer to System Description.

Component Parts Location

Combination meter is installed to the cluster lid A.

Refer to Component Parts Location.

Meter Speaker

Component Function Within The System

  • Output meter sound by meter speaker signal from combination meter.

Individual Component Function

Sound signals generated by the combination meter output sounds.

SPECIFICATIONS
Size (Φ) 4.6 cm (1.8 in)
Rated input (W) 1.5
MAX input (W) 3
Impedance (Ω) 8

Component Operation

Meter speaker signals are input to the speaker, and sound is output.

Component Parts Location

  • The meter speaker is located on the instrument panel. Refer to Component Parts Location.

Steering Switches

Component Function Within The System

Screen of information display can be switched by operating the steering switch.

No. Switch name Operation Description
RIGHT switch Press Switches the screen shown on the information display.
LEFT/BACK switch Press

  • Switches the screen shown on the information display.

  • Switches the screen shown on the information display to the previous screen.
OK switch Press Switches the screen shown on the information display.
Jog dial Up

  • Moves up the item selected on the information display.

  • Increases the set value displayed on the settings screen of the information display.
Down

  • Moves down the item selected on the information display.

  • Decreases the set value displayed on the settings screen of the information display.
Control switch Press Switches the screen shown on the information display to the short cut menu screen.

Individual Component Function

Steering switch inputs a switch status to the combination meter.

Component Operation

  • The steering switch consists of combination of normally open switches and resistors.

  • When each switch is pressed, the voltage from the combination meter is displaced according to the resistance value set for each switch, and the combination meter reads which switch is pressed.

  • Combination meter reads a switch state by an electric potential change.

Component Parts Location

Steering switch for the combination meter is installed to the left side of steering wheel. Refer to Component Parts Location.

Illumination Control Switch

Component Function Within The System

The brightness of combination meter and information display can be adjusted by pressing the illumination control switch (+/−)

No. Switch name Operation Description
Illumination control switch (+) Press The brightness of combination meter and information display can be adjusted.
Illumination control switch (−)

Individual Component Function

Transmits the illumination control switch signal to the combination meter.

Component Operation

  • Adopted momentary switch.

    NOTE:

    Momentary switch: While push the switch, it becomes ON and returns to an OFF state when release the switch.

  • Change switch operation into ON (0 V) / OFF (10 V) of the voltage.

  • Combination meter reads a switch state by an electric potential change.

Component Parts Location

The illumination control switch is located on the instrument lower panel LH. Refer to Component Parts Location.

Ambient Sensor

Component Function Within The System

  • Ambient sensor measures ambient air temperature.

  • Ambient sensor transmits the ambient sensor signal to the combination meter.

Individual Component Function

Ambient sensor measures ambient air temperature.

Component Operation

Ambient sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

Component Parts Location

Ambient sensor is installed to back side of the front bumper. Refer to Component Parts Location.

Oil Level Sensor

Component Function Within The System

Oil level sensor transmits the low oil level sensor signal to the combination meter.

Individual Component Function

Oil level sensor detects low engine oil level.

Component Parts Location

The oil level sensor is installed to the cylinder block. Refer to Component Parts Location.

Fuel Level Sensor Unit, Fuel Pump and FPCM (Fuel Level Sensor) (Main) - 2WD Models

Component Function Within The System

Fuel level sensor unit (main) measures the fuel level in the fuel tank by a float.

Individual Component Function

Fuel level sensor unit (main) measures the fuel level in the fuel tank by a float.

Component Operation

The fuel level sensor transmits the fuel level sensor signal to the combination meter as the fuel level increases or decreases in the fuel tank.

Component Parts Location

Fuel level sensor (main) is located in the fuel tank. Refer to Component Parts Location.

Fuel Level Sensor Unit, Fuel Pump and FPCM (Fuel Level Sensor) (Main) and Fuel Level Sensor Unit (Sub) - AWD Models

Component Function Within The System

Fuel level sensor unit (main) and fuel level sensor (sub) transmits the fuel level sensor signal to the combination meter.

Fuel level sensor unit (main)

Fuel level sensor unit (sub)

Individual Component Function

  • Fuel level sensor unit (main) measures the fuel level in the fuel tank (left side of the Nissan Ariya vehicle) by a float.

  • Fuel level sensor unit (sub) measures the fuel level in the fuel tank (right side of the Nissan Ariya vehicle) by a float.

Component Operation

The fuel level sensor transmits the fuel level sensor signal to the combination meter as the fuel level increases or decreases in the fuel tank.

Component Parts Location

Fuel level sensor (main) and fuel level sensor unit (sub) are located in the fuel tank. Refer to Component Parts Location.

    Type B. System Description
    System
    Meter System System Description SYSTEM DIAGRAM Parts name Description Ambient sensor Refer to Ambient Sensor. BCM Transmits the BCM status to the combination meter via CAN commu...
