Nissan Rogue (T33) 2021-Present Service Manual: Component Parts

Nissan Rogue (T33) 2021-Present Service Manual / Electrical & Power Control :: Lan System / Can :: System Description / Component Parts

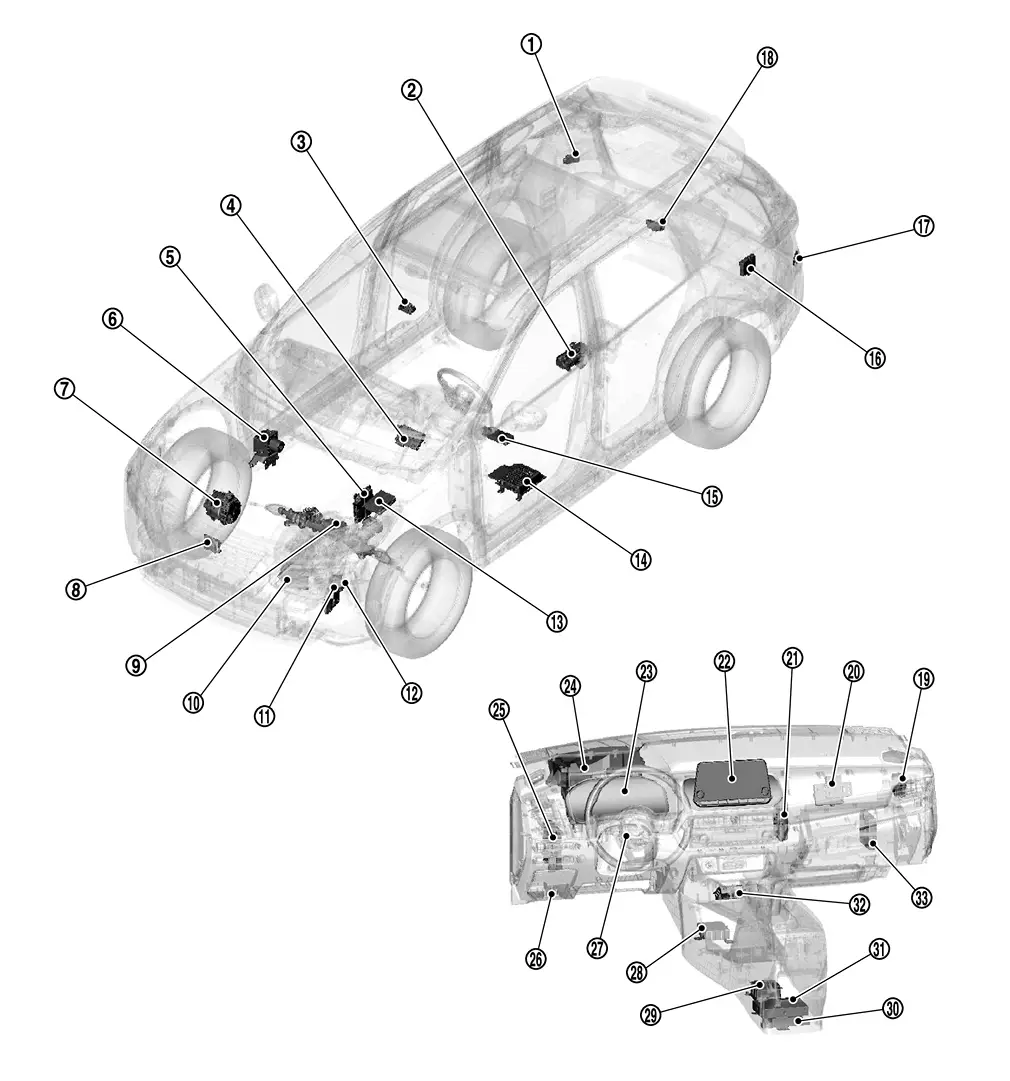

Component Parts Location

1. Side radar rear RH 2. AWD control unit 3. Front camera unit
4. 8CH CAN gateway 5. ECM 6. ABS actuator and electric unit (control unit)
7. Sub starter & generator 8. Distance sensor 9. Power steering control module
10. TCM 11. Electric intake valve timing control module 12. VCR control module
13. IPDM E/R 14.

  • BOSE speaker amp.*1

  • Active noise control unit*2

 15. Driver seat control unit
16. Automatic back door control unit 17. Side radar rear LH 18. Sonar control unit
19. Chassis control module 20. Intelligent Key unit 21. TCU
22. AV control unit 23. Combination meter 24. Head Up Display unit
25. BCM 26. Data link connector 27. Steering angle sensor
28. Electric shift control module 29. Air bag diagnosis sensor unit 30. ADAS control unit 2
31. Around view monitor control unit 32. Wireless charger unit 33. A/C amp.

*1: With BOSE audio system

*2: Without BOSE audio system
