Nissan Rogue (T33) 2021-Present Service Manual: Charge Air Cooler Electric Water Pump Relay

Nissan Rogue (T33) 2021-Present Service Manual / Engine :: Engine Control System / Kr15ddt :: Dtc/circuit Diagnosis / Charge Air Cooler Electric Water Pump Relay

Component Inspection

CHECK ELECTRIC WATER PUMP RELAY

  1. Turn ignition switch OFF.

  2. Remove electric water pump relay.

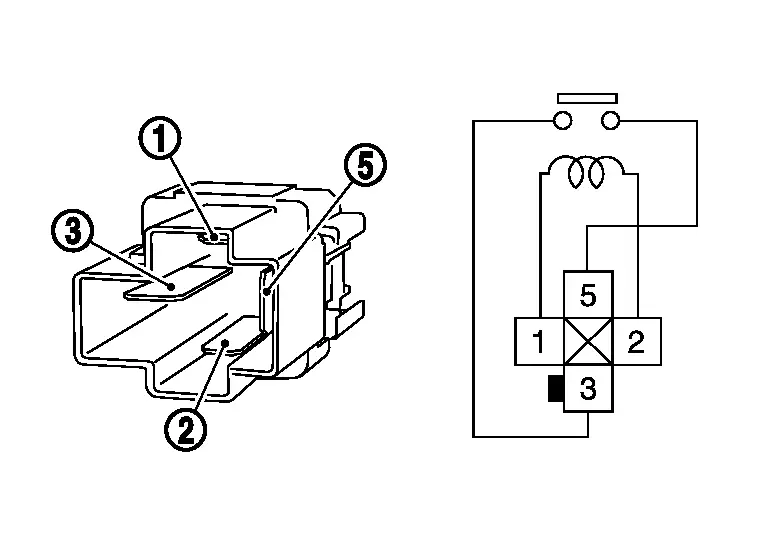

  3. Check the continuity between electric water pump relay terminals under the following conditions.

    Terminals Conditions Continuity
    and 12 V direct current supply between terminals and Existed
    No current supply Not existed

Is the inspection result normal?

YES>>

INSPECTION END

NO>>

Replace electric water pump relay.
