Component Parts

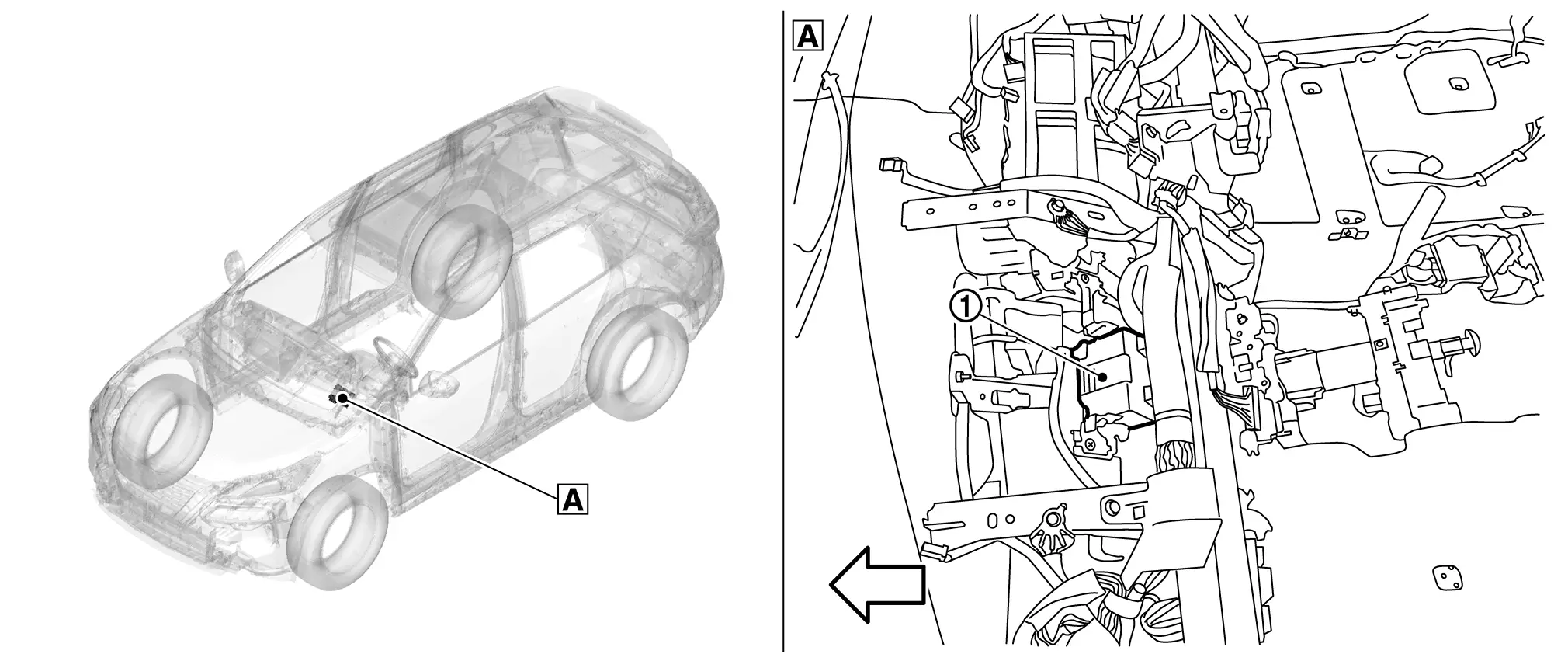

Component Parts Location

Instrument panel assembly removed condition Nissan Ariya Vehicle front
No. Component Reference
1. 8CH CAN gateway 8CH CAN Gateway

8CH CAN Gateway

EXPLANATIONS OF COMPONENT PARTS

Component Function Within The System

—

Individual Component Function

8CH CAN gateway transmits CAN signals from each network.

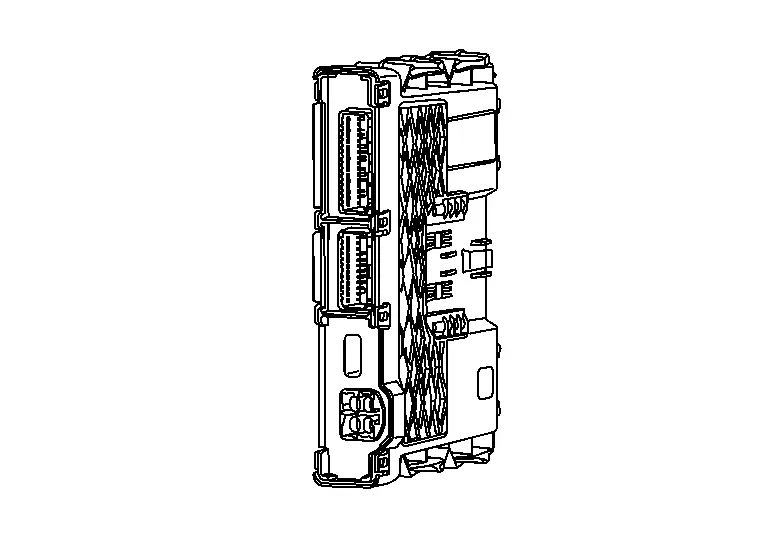

  • With type B meter

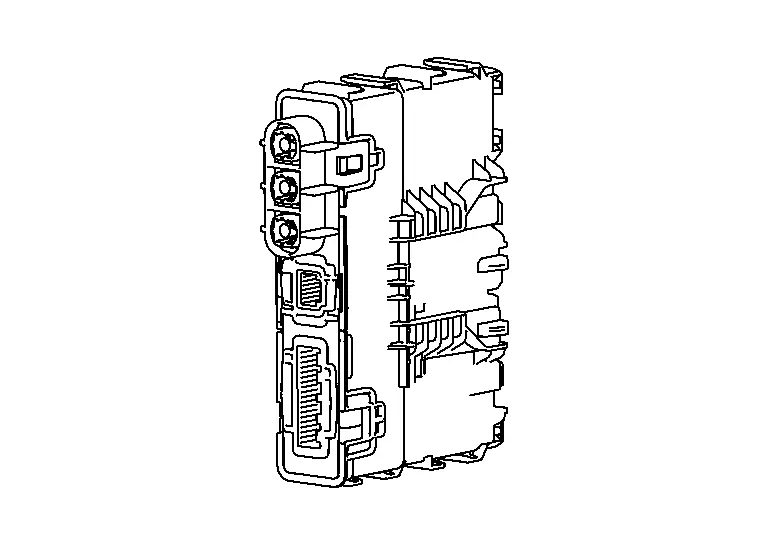

  • With type A meter

Component Operation

Refer to System Description.

Component Parts Location

8CH CAN gateway is installed at behind the instrument panel. Refer to Component Parts Location.

System

8ch Can Gateway

System Description

8CH CAN GATEWAY

System Diagram

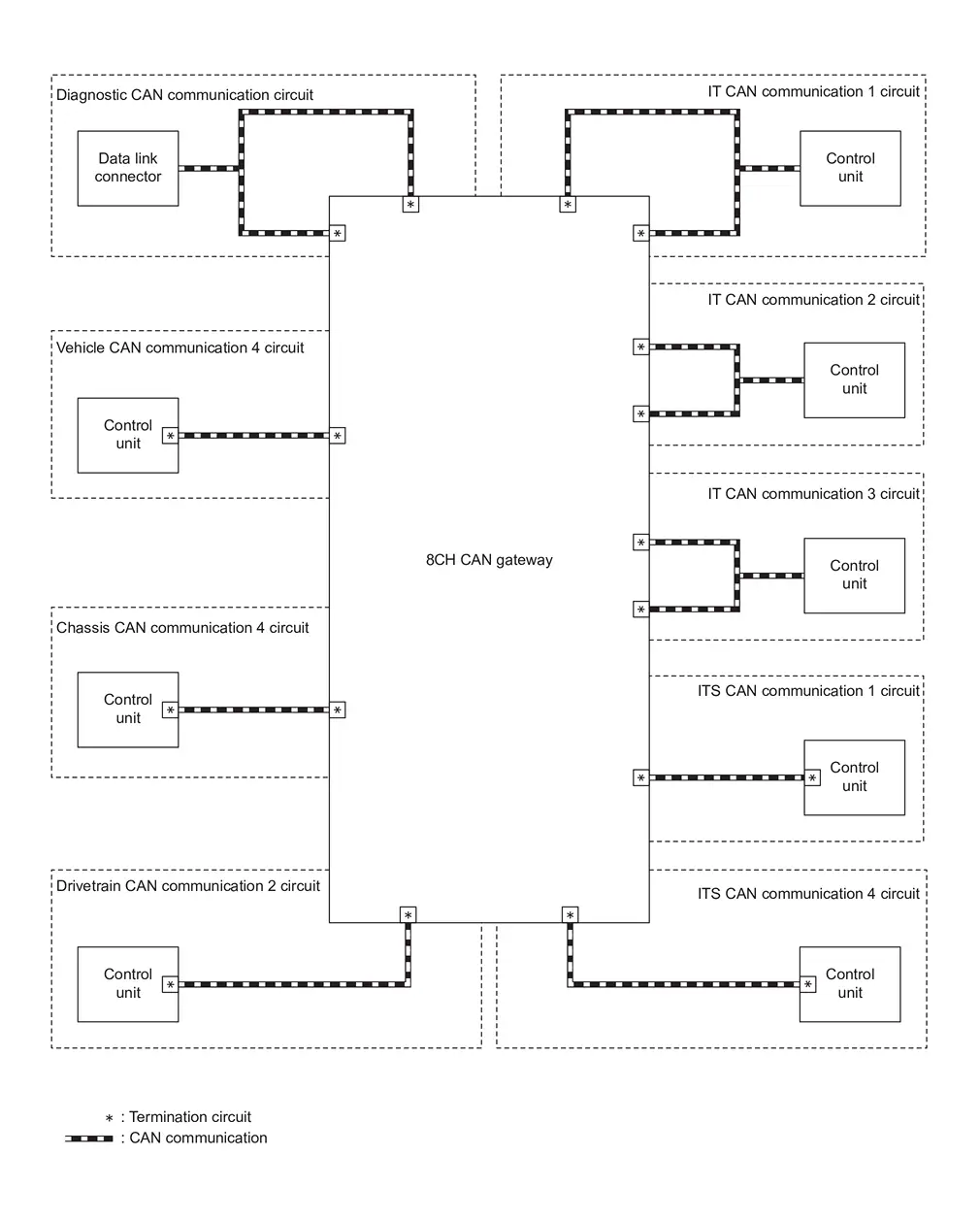

  • With Type B Meter

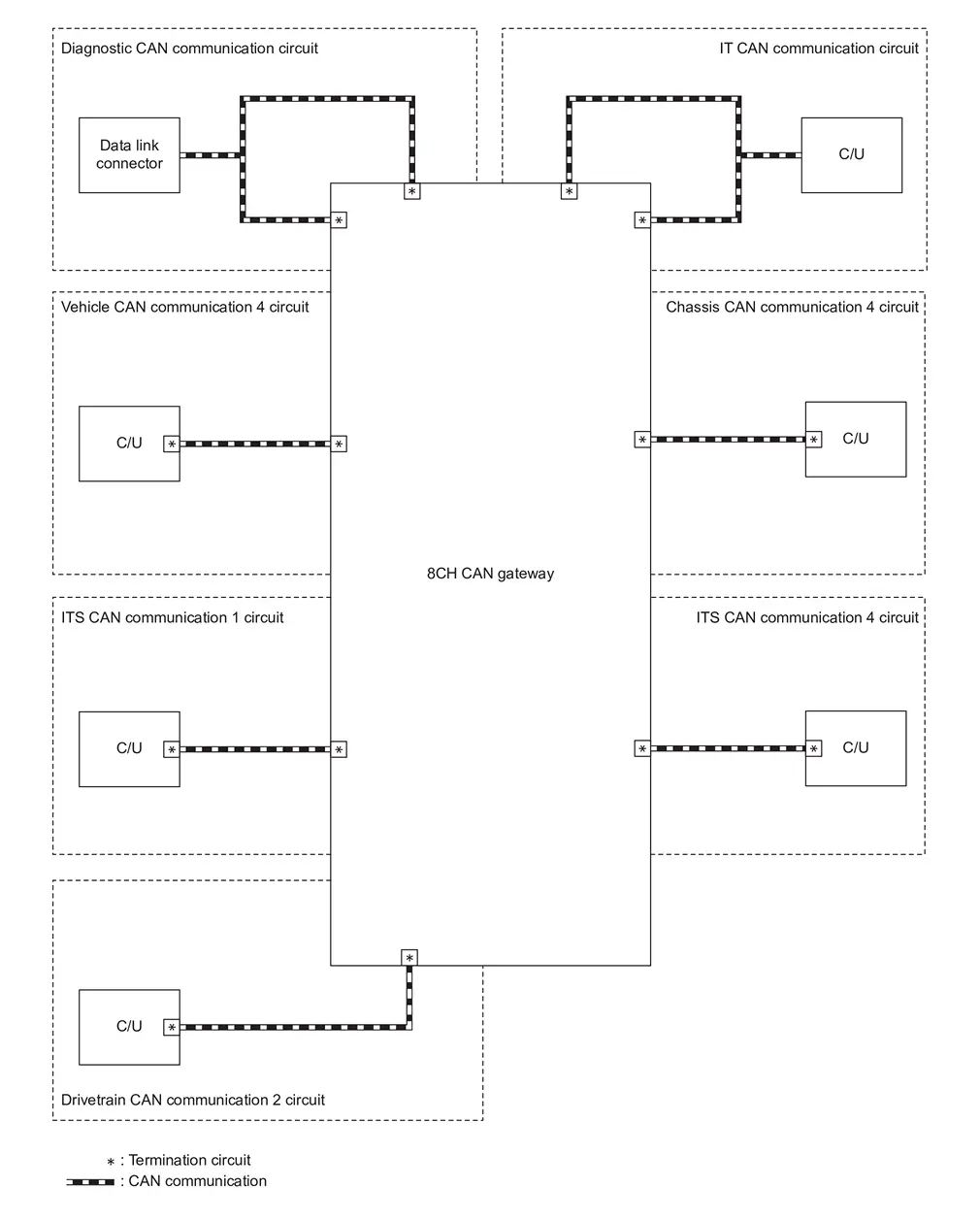

  • With Type A Meter Without ProPILOT Assist 2.1

  • With Type A Meter With ProPILOT Assist 2.1

System Description

  • The 8CH CAN gateway system communicates between vehicle CAN communication circuits, ITS CAN communication circuits, chassis CAN communication circuits, IT CAN communication circuits, Drivetrain CAN communication circuit, and diagnostic CAN communication circuit.

  • This system selects and transmits only necessary information.

Diagnosis System (8ch Can Gateway)

CONSULT Function

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with 8CH CAN gateway.

Diagnosis mode Function Description
Self Diagnostic Result Display DTC which 8CH CAN gateway memorizes.
Work support Performs VIN data saving/writing, network initial settings and automatic report prevention release.
Data monitor

NOTE:

This item is displayed, but cannot be monitored.
ECU Identification The 8CH CAN gateway part number is displayed.
Replace ECU Write the Nissan Ariya vehicle specification when replacing 8CH CAN gateway

SELF DIAGNOSTIC RESULT

Refer to DTC Index.

  • When “CRNT” is displayed on “Self Diagnostic Result”

    • The system is presently malfunctioning.

  • When “PAST” is displayed on “Self Diagnostic Result”

    • System malfunction in the past is detected, but the system is presently normal.

Freeze Frame Data (FFD)

When DTC is detected, a vehicle state shown below is recorded and displayed on CONSULT.

Item name Display item

ODO/TRIP METER

(km) 		Displays the total mileage when a DTC detected.
DTC count Records the number of times DTC was detected.

WORK SUPPORT

Item name Description
VIN registration Register of the Nissan Ariya vehicle identification number.
OTA status reset

NOTE:

This item is displayed, but cannot be used.

ECU IDENTIFICATION

The part number of 8CH CAN gateway is displayed.
