Nissan Rogue (T33) 2021-Present Owner’s Manual & User Guide: Basic information

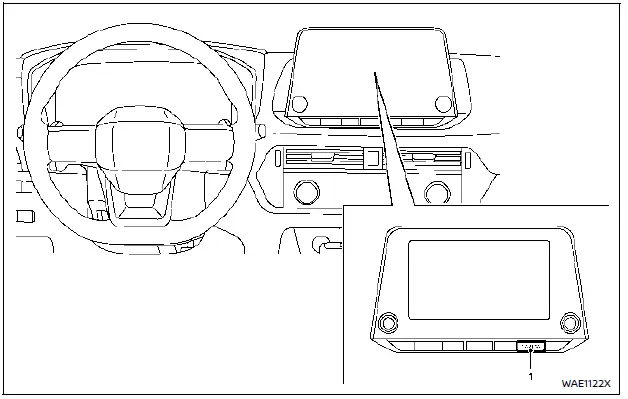

- CAMERA button
WARNING
- Failure to follow the warnings and usage instructions for the RearView Monitor in your Nissan Rogue can result in serious injury or death.
- The RearView Monitor is a driver-assist tool, not a replacement for safe driving habits. Always turn your head, check mirrors and surroundings, and reverse slowly.
- The system helps identify large stationary objects directly behind the vehicle to prevent damage.
- Guide lines on the display should be used only as a visual reference on level paved surfaces.
- The distance shown on the monitor may differ from the actual distance to objects.
CAUTION
Do not scratch or apply excessive pressure to the camera lens when removing dirt, snow or debris.
The RearView Monitor system automatically activates and displays a rear view when the shift lever is placed in the R (Reverse) position on the Nissan Rogue.
The radio and audio system continue to operate normally while the RearView Monitor is displayed.
RearView Monitor
...
RearView Monitor system operation
On the Nissan Rogue, the RearView Monitor displays the rear camera view using the camera 1 mounted just above the license plate. This system activates automatically when the ignition is ON and the s ...
