Preparation

Special Service Tool

Tool number

Tool name 		Description

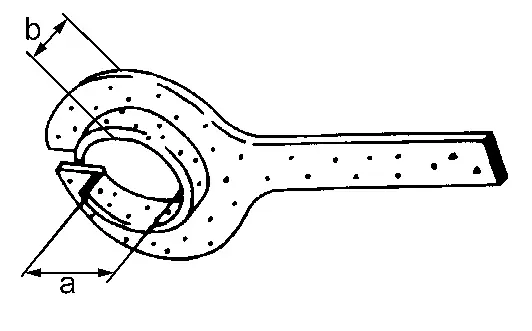

KV40104000

Hub lock nut wrench

a: 85 mm (3.35 in)

b: 65 mm (2.56 in)

Removing and Installing wheel hub lock nut.

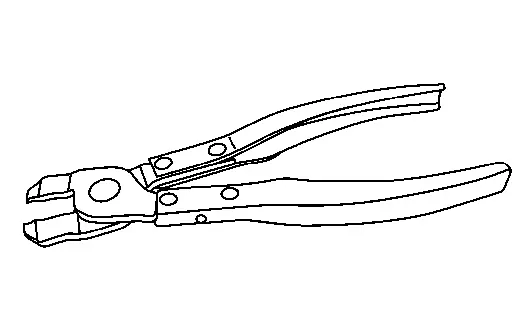

KV40107310

Boot band crimping tool

Installing boot band

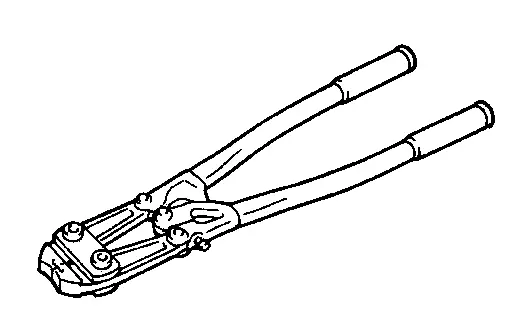

KV40107300

Boot band crimping tool

Installing boot band

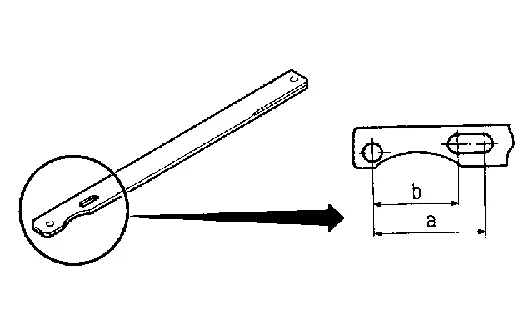

KV38107900

( – )

Installing drive shaft

Protector

a: 32 mm (1.26 in) dia.

b: 25 mm (0.98 in)

Commercial Service Tool

Tool name Description

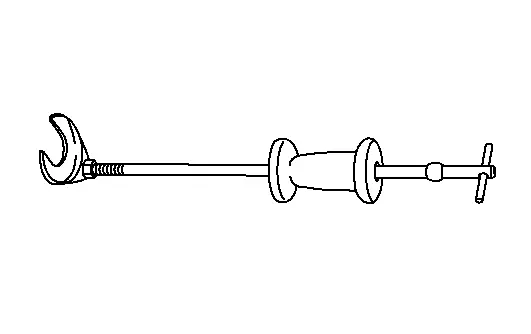

Drive shaft puller

Removing drive shaft joint sub assembly

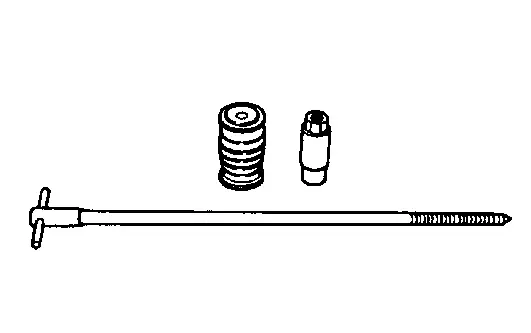

Drive shaft joint puller

Removing drive shaft
Ball joint remover

Removing hub bolt

Lubricant or/and Sealant

Name Description
NISSAN Genuine grease or equivalent

  • Joint sub-assembly inside

  • Housing inside

Always Replace with New Parts

Never Reuse These Parts Part CodeFor additional information
Bush - Radius, Axle 43052H Exploded View
Bush - LWR Link, FR Axle 43052D Exploded View
Bush - LWR Link, RR Axle 43052E Exploded View
Bolt - Hub 43222 Exploded View
Circlip - Drive SFT 39634 Exploded View
Circlip - Drive SFT 39600F Exploded View
Shield - Dust 39752X Exploded View
Band - Boot, HSG (Small) — Exploded View
Band - Boot, SFT (Small) — Exploded View
Band - Boot, HSG (Large) — Exploded View
Band - Boot, SFT (Large) — Exploded View
Boot - Fixed JT, RUB 39641K Exploded View
Boot - Slide JT, RUB 39741K Exploded View
Boot - Fixed JT, RUB 39641K Exploded View
Ring - Snap — Exploded View
    2wd. Service Data and Specifications (sds). Service Data and Specifications (sds)
    Service Data and Specifications (sds) Wheel Bearing Axial end play 0.05 mm (0.002 in) or less
