Nissan Rogue (T33) 2021-Present Service Manual: Air Cleaner and Air Duct

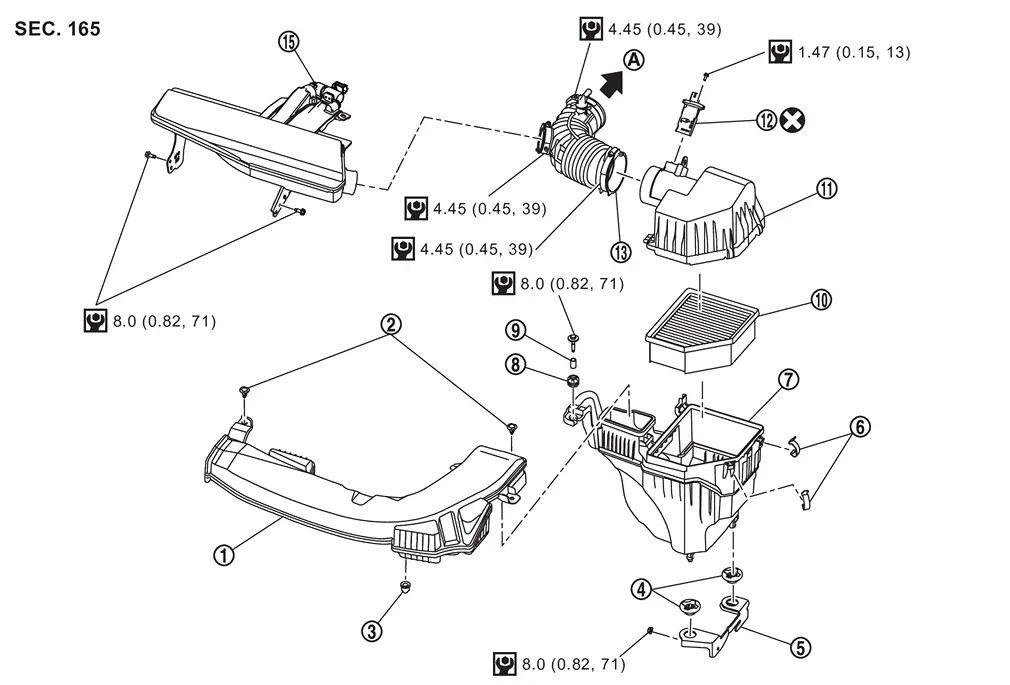

Exploded View

1.	Air duct (Inlet)	2.	Clip	3.	Mounting rubber
4.	Mounting rubber	5.	Bracket	6.	Clip
7.	Air cleaner body	8.	Mounting rubber	9.	Collar
10.	Air cleaner filter	11.	Air cleaner cover	12.	Mass air flow sensor
13.	Air duct	14.	Resonator	15.	Crankcase Vent Actuator
A	To admission valve. Refer to Exploded View.	—		—
	: N·m (kg-m, in-lb)

Removal and Installation

REMOVAL

NOTE:

Mass air flow sensor is removable without removing the air cleaner assembly.

Remove front grill cover. Refer to Removal and Installation.

Remove air duct (inlet) clip and remove air duct (inlet).

Remove engine cover. Refer to Removal and Installation.

Disconnect the hose and the electrical connector and then remove the resonator.

Disconnect purge control valve hose 2 from air duct. Refer to Removal and Installation.

Loosen clamp of air duct and remove air duct.

Disconnect the harness connector from the mass air flow sensor.

Separate the harness clamp for the mass air flow sensor from the air cleaner cover.

Remove mass air flow sensor from air cleaner cover, if necessary.

CAUTION:

Handle the mass air flow sensor with care:

• Do not shock it.

• Do not disassemble it.

• Do not touch the internal sensor.

Remove air cleaner body bolt and remove air cleaner body together with air cleaner cover.

Release the clips (A) of air cleaner cover (1) and separate the air cleaner body and air cleaner cover if necessary.

: Nissan Ariya Vehicle front

INSTALLATION

Note the following, and install in the reverse order of removal.

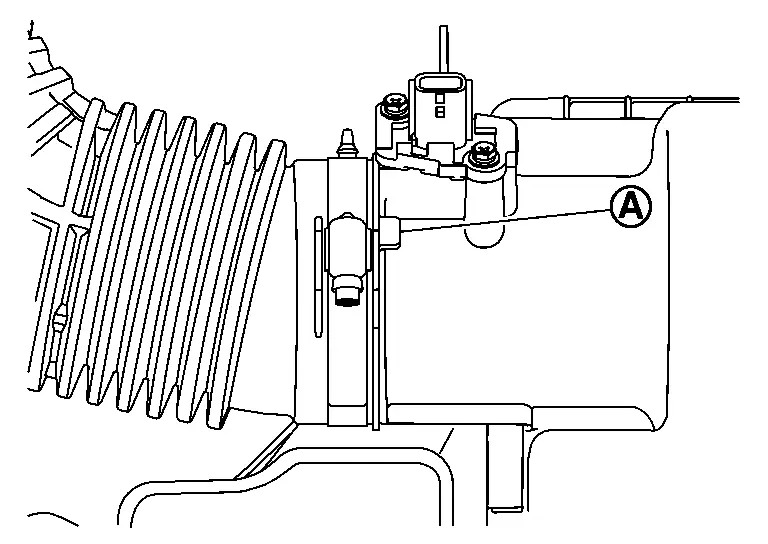

• When installing air cleaner assembly, make sure to align tabs (A) of air duct as shown.

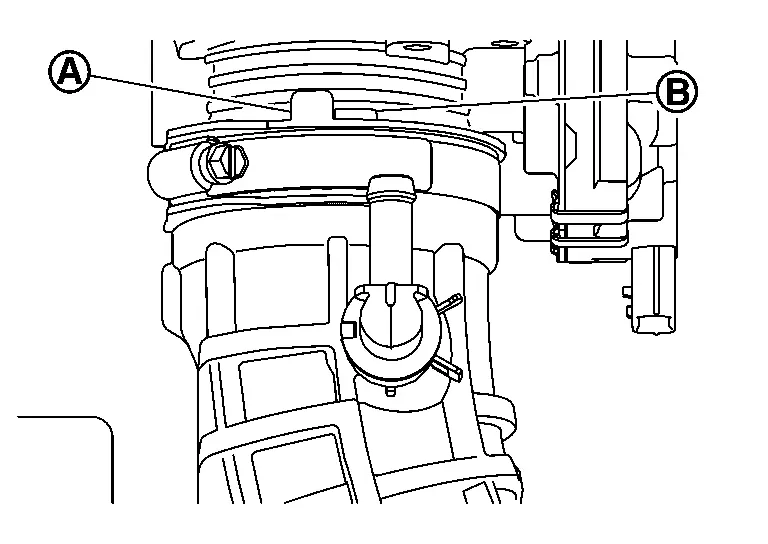

• If removed, align tab (B) of air duct with tab (A) on admission valve.



  CAUTION:

  If mass air flow sensor replaced, perform "AIR FUEL RATIO INITIAL LEARNING". Refer to Description.

Inspection

Inspect air duct assembly for cracks or tears.

If any damage is found, replace air duct assembly.
