Preparation

Special Service Tool

Tool number

(TechMate No.)

Tool name 		Description

KV40104000

( – )

Hub lock nut wrench

a: 85 mm (3.35 in)

b: 65 mm (2.56 in)

Removing and Installing wheel hub lock nut.

KV40107300

( – )

Boot band crimping tool

Installing boot band

KV40107310

( – )

Boot band crimping tool

Installing boot band

KV38107900

( – )

Installing drive shaft

Protector

a: 32 mm (1.26 in) dia.

b: 25 mm (0.98 in)

(NI-52982)

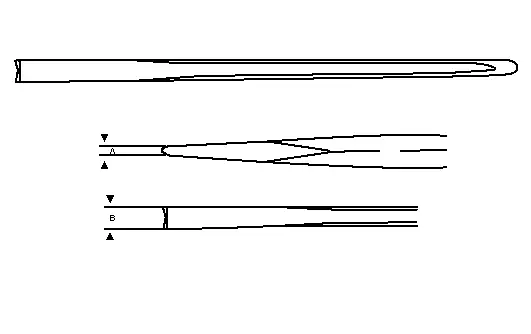

Lock nut chisel (Cape chisel)

Removing wheel hub lock nut

Commercial Service Tool

Tool name Description
Drive shaft joint puller

Removing drive shaft

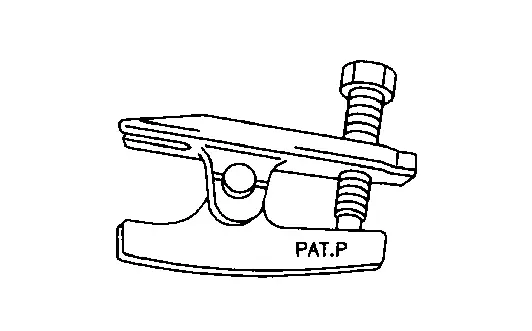

Ball joint remover

  • Removing ball joint for suspension arm

  • Removing hub bolt
Power tool

Loosening nuts, screws and bolts
Lock nut crimp punch (Cold chisel)

Installing wheel hub lock nut

a: 5 mm (0.20 in)

b: 7 mm (0.28 in)

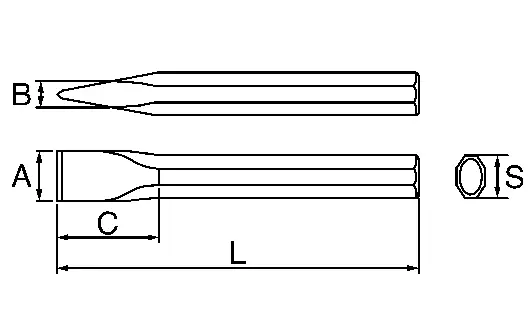

Chisel

Removing and Installing steering knuckle and strut assembly

A: 16 – 32 mm (0.63 – 1.26 in)

B: 10 mm (0.39 in) or more

C: 40 – 70 mm (1.57 – 2.76 in)

L: 220 mm (7.87 in) or less

S: 14 mm (0.55 in) or more

Lubricant or/and Sealant

Name Description
NISSAN Genuine grease or equivalent

  • Joint sub-assembly inside

  • Housing inside
Apply paste [service parts (440037S000)]

  • Joint sub-assembly

Always Replace with New Parts

Never Reuse These Parts Part Code For additional information:
Nut-Lock, Wheel Bearing 40262 Exploded View
Bolt 40030A Exploded View
Bolt - Hub 40222 Exploded View
Nut 40080B Exploded View
Circlip - Side Gear 38225W Exploded View
Shield - Dust 39752+B Exploded View
Ring - Snap — Exploded View
Ring - Stopper — Exploded View
Band Boot - Sld Hsq — Exploded View
Boot - Fixed JT 39156KA Exploded View
Band - Damp — Exploded View
Band - Boot, Hsq — Exploded View
Band - Boot, SFT — Exploded View
Boot - Fixed JT 39155KA Exploded View
Circlip - Drive Sft — Exploded View
Circlip - Drive Sft 39234 Exploded View
Boot - Fixed JT 39155K Exploded View
Boot - Slide JT, Rub 39156K Exploded View
Ring - Snap 39734 Exploded View
Ring - Stopper 39735+A Exploded View
Ring - Snap — Exploded View
Shield - Dust 39752+A Exploded View
Shield - Dust 39752+B Exploded View
Shield - Dust 39752 Exploded View
Shield - Dust 39752 Exploded View
