STARTER MOTOR

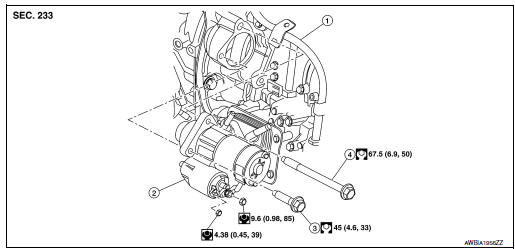

Exploded View

REMOVAL

Exploded View

  1. Transaxle assembly
  2. Starter motor
  3. Lower bolt
  4.  Upper bolt

Removal and Installation

REMOVAL

  1.  Remove battery tray. Refer to PG-77, "Removal and Installation".
  2.  Remove terminal B nut and terminal B harness.
  3.  Remove terminal S nut and terminal S harness.
  4.  Remove starter motor mounting bolts.
  5.  Remove starter motor upward from the vehicle.

INSTALLATION

Installation is in the reverse order of removal. Perform the following: Learning".

Service data and specifications (SDS)

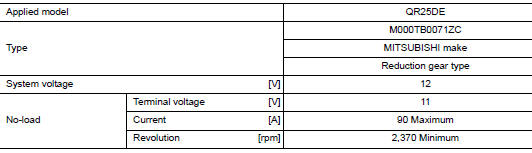

Starter Motor

Starter Motor

S connector circuit
Description The starter motor magnetic switch is supplied with power when the ignition switch is turned to the START position while the selector lever is in the P (Park) or N (Neutral) position. ...
