Special Service Tool
The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name |
Description |
|
— (J-39570) Chassis Ear | Locating the noise | |
— (J-50397) NISSAN Squeak and Rattle Kit | Repairing the cause of noise | |
— (J-46534) Trim Tool Set | Removing trim components |
Commercial Service Tools
(TechMate No.) Tool name |
Description |
|
(J-39565) Engine Ear | Locating the noise | |
( — ) Power tool | Loosening nuts, screws and bolts |

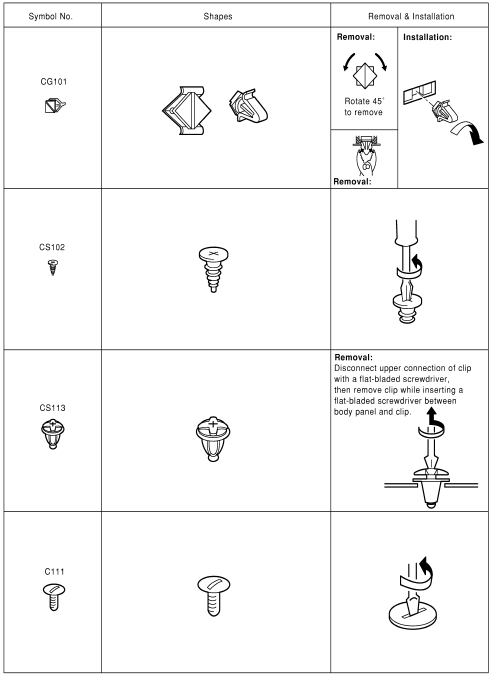

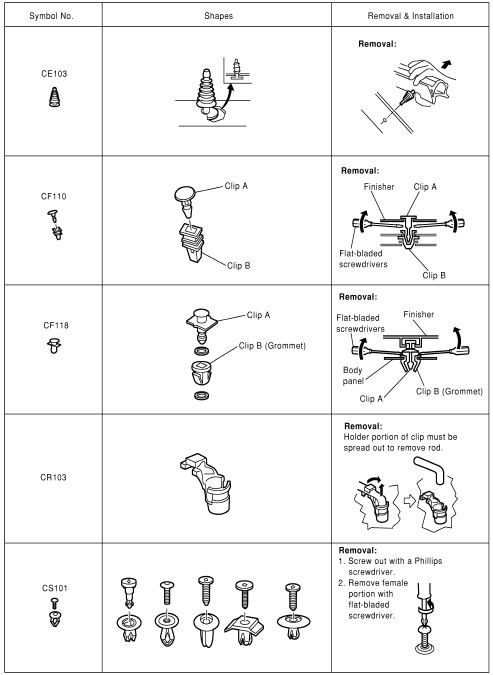

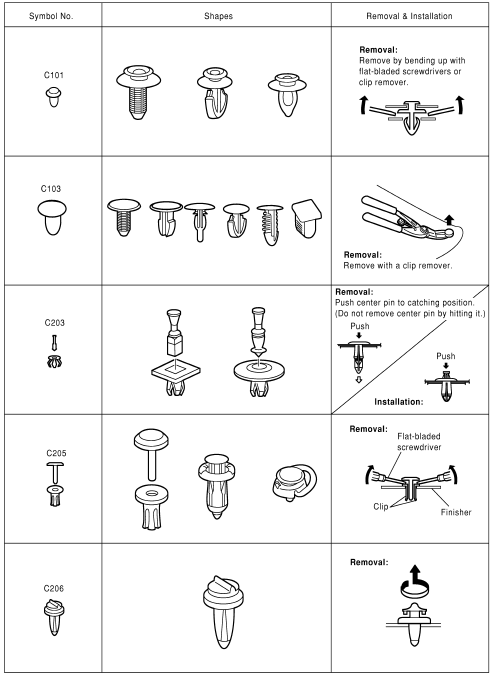

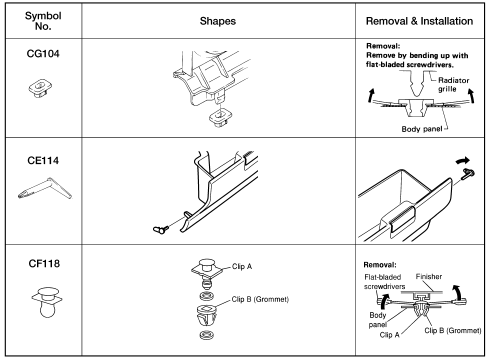

CLIP LIST
Descriptions for Clips
Replace any clips which are damaged during removal or installation.
Harness
Harness Layout
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
Main Harness and Main Sub Harness
Engine Room Harness
Engine Room Harness (Passenger Compartment)
Front End Module Harness
&n ...
Indicator lights
For additional information on warnings and indicators,
refer to “Vehicle information display” in
this section.
All-Wheel Drive
(AWD) AUTO indicator light (if so equipped)
When the ignition switch is in the “ON” position,
the All-Wheel Drive (AWD) AUTO indicator light
illuminates.
...
Power generation voltage variable control system operation
inspection
Diagnosis Procedure
Regarding Wiring Diagram information. Refer to CHG-7, "Wiring Diagram".
CAUTION:
When performing this inspection, always use a charged battery that has completed
the battery inspection.
(When the charging rate of the battery is low, the response speed of the vol ...
