Nissan Rogue Service Manual / Body exterior, doors, roof & vehicle security / Power Window Control System / System description / Component parts

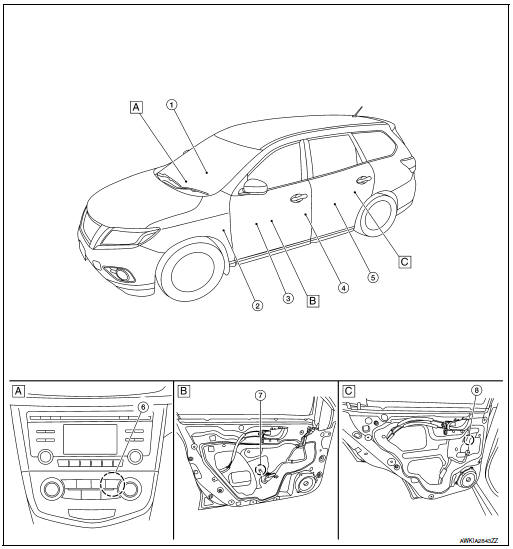

Component Parts Location

Component Parts Location

A/C switch assembly
View with front door finisher removed
View with rear door finisher removed

No.	Component parts	Function
1	Front power window switch	Refer to PWC-7, "Power Window Switch".
2	BCM	Supplies power supply to power window relay. Controls retained power. Refer to BCS-7, "BODY CONTROL SYSTEM : Component Parts Location" for detailed installation location.
3	Main power window and door lock/unlock switch	Refer to PWC-7, "Power Window Main Switch".
4	Front door switch LH (RH similar)	Inputs door open/close condition to BCM. Refer to DLK-24, "Front Door Switch".
5	Rear power window switch LH (RH similar)	Refer to PWC-7, "Power Window Switch".
6	Power window relay	Operates the power window system with the control signal from the BCM.
7	Front power window motor LH (RH similar)	Refer to PWC-7, "Power Window Motor".
8	Rear power window motor LH (RH similar)	Refer to PWC-7, "Power Window Motor".

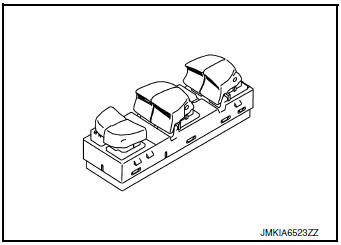

Power Window Main Switch

Main power window and door lock/unlock switch controls all power windows.
Main power window and door lock/unlock switch integrates UP/ DOWN switch, power window lock switch, and door lock/unlock switch.
Main power window and door lock/unlock switch controls power window lock function, AUTO UP/DOWN function, and anti-pinch function.

Power Window Main Switch

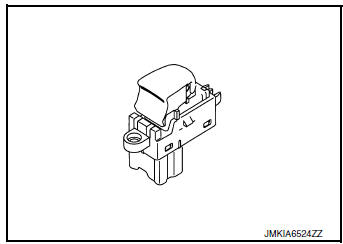

Power Window Switch

Each power window switch transmits UP/DOWN signal to each motor.
Each power window switch transmits UP/DOWN signal from power window main switch to each motor.

Power Window Switch

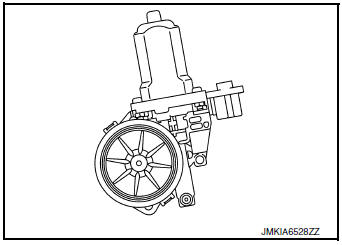

Power Window Motor

Integrates the encoder and power window motor (front driver side).
Starts operation according to signals from main power window and door lock/unlock switch.
Transmits front power window motor (driver side) rotation as a pulse signal to power window main switch.
Excepting power window motor for driver door, starts operation according to signals from main power window and door lock/unlock switch or each power window switches.

Power Window Motor

System

System Description SYSTEM DIAGRAM POWER WINDOW OPERATION Main power window and door lock/unlock switch can open/close all windows. Front and rear power window switches can open/cl ...
