Nissan Rogue Service Manual: Front seat

DRIVER SIDE

DRIVER SIDE : Exploded View

POWER SEAT

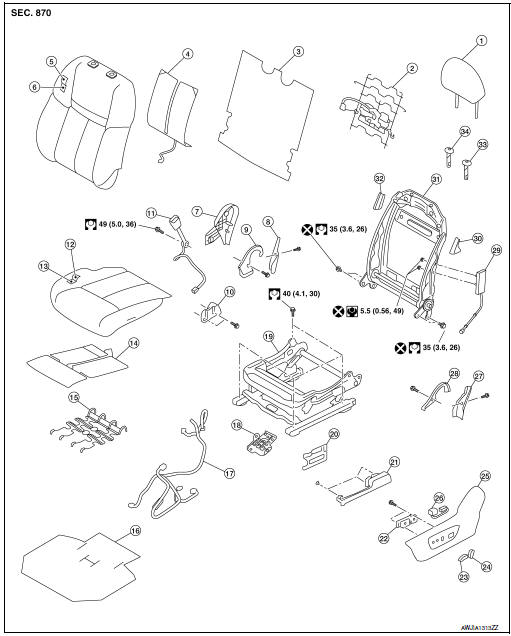

Exploded View

  1. Headrest
  2.  Seatback support
  3.  Seatback board
  4.  Seatback heater (if equipped)
  5.  Seatback trim
  6.  Seatback pad
  7. Seat cushion outer finisher (RH)
  8. Seat cushion rear finisher (RH)
  9. Seat cushion inner finisher (RH)
  10. Seat slide finisher (RH)
  11. Seat belt buckle
  12.  Seat cushion trim
  13.  Seat cushion pad
  14.  Seat cushion heater (if equipped)
  15.  Seat cushion support
  16.  Seat cushion silencer
  17. Seat harness
  18. Seat harness bracket
  19.  Seat cushion frame
  20. Seat slide finisher bracket (LH)
  21.  Seat slide finisher (LH)
  22.  Power seat switch
  23. Seat slide knob
  24.  Side recline knob
  25.  Seat cushion outer finisher (LH)
  26.  Lumbar support switch
  27.  Seat cushion rear finisher (LH)
  28.  Seat cushion inner finisher (LH)
  29.  Side air bag module (not serviceable)
  30.  Seatback bracket (LH)
  31.  Seatback frame
  32.  Seatback bracket (RH)
  33.  Headrest holder (locked)
  34.  Headrest holder (free)

MANUAL SEAT

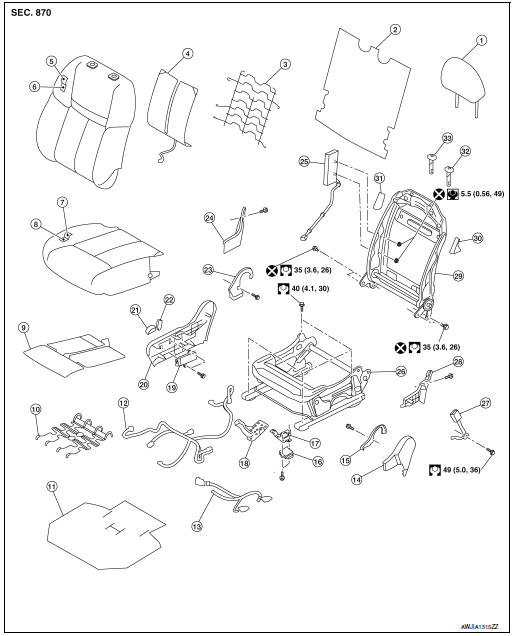

Exploded View

  1. Headrest
  2.  Seatback board
  3. Seatback support
  4.  Seatback trim
  5. Seatback pad
  6. Seat cushion outer finisher
  7.  Seat cushion rear finisher (RH)
  8. Seat cushion inner finisher (RH)
  9.  Seat slide finisher (RH)
  10. Seat belt buckle
  11. Seat cushion trim
  12.  Seat cushion pad
  13. Seat cushion support
  14.  Seat cushion silencer
  15.  Seat harness
  16.  Seat cushion frame
  17.  Recline switch
  18.  Seat slide finisher bracket (LH)
  19.  Seat slide finisher (LH)
  20.  Lift lever
  21.  Recline lever
  22.  Seat cushion outer finisher (LH)
  23. Seat cushion rear finisher (LH)
  24. Seat cushion inner finisher (LH)
  25. Side air bag module (not serviceable)
  26.  Seatback bracket (LH)
  27.  Seatback frame
  28.  Seatback bracket (RH)
  29. Headrest holder (locked)
  30. Headrest holder (free)

DRIVER SIDE : Removal and Installation

REMOVAL

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

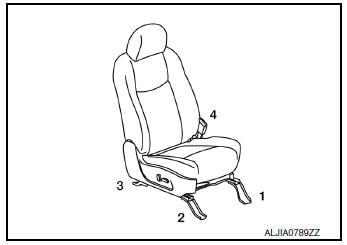

  1.  Slide the seat to the full rearward position.
  2.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
  3.  Disconnect harness connector from side air bag module.
  4.  Remove front bolts.
  5.  Connect negative and positive battery terminals, then slide the seat to the full forward position. Refer to PG-77, "Removal and Installation" (power seat only).
  6.  Slide the seat to the full forward position.
  7.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
  8.  Remove rear bolts.
  9.  Tilt the seat rearward and disconnect the harness connectors from the seat.

    NOTE: Take note of harness routing and attachment locations for correct installation.

  10.  Remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION: Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

Installation

PASSENGER SIDE

PASSENGER SIDE : Exploded View

POWER SEAT

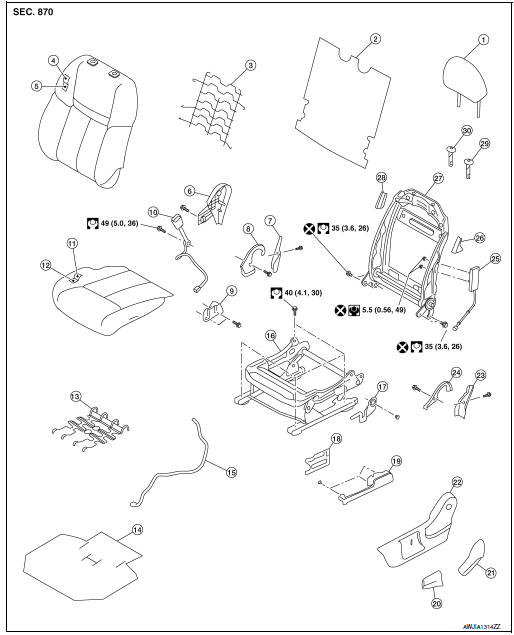

Exploded View

  1. Headrest
  2. Seatback board
  3.  Seatback support
  4.  Seatback heater
  5. Seat cushion trim
  6. Seat cushion pad
  7.  Seat cushion trim
  8. Seat cushion pad
  9. Seat cushion heater
  10. Seat cushion support
  11.  Seat cushion silencer
  12. Seat harness
  13. Occupant classification system harness
  14.  Seat cushion outer finisher (LH)
  15.  Seat cushion inner finisher (LH)
  16. Occupant classification system control unit
  17.  Occupant classification system bracket
  18.  Wiring harness bracket
  19. Power seat switch
  20.  Seat cushion outer finisher (RH)
  21.  Seat slide knob
  22.  Seat recline knob
  23. Seat cushion inner finisher (RH)
  24.  Seat cushion rear finisher (RH)
  25.  Side air bag module (not serviceable)
  26.  Seat cushion frame
  27.  Seat belt buckle
  28.  Seat cushion rear finisher (LH)
  29.  Seatback frame
  30.  Seatback bracket (LH)
  31.  Seatback bracket (RH)
  32.  Headrest holder (locked)
  33. Headrest holder (free)

MANUAL SEAT

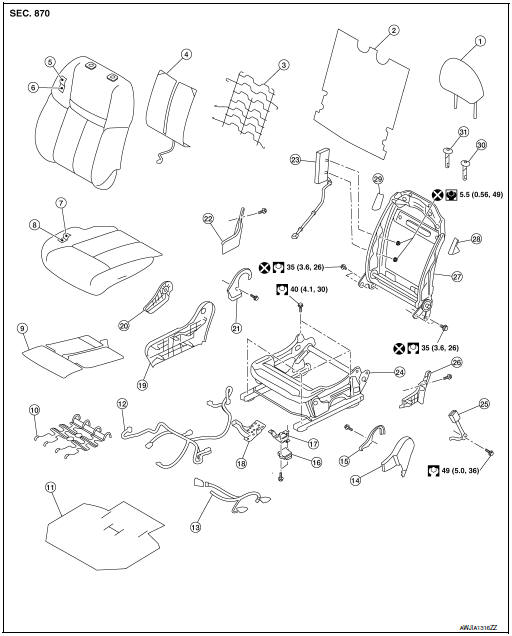

Exploded View

  1. Headrest
  2.  Seatback board
  3. Seatback support
  4. Seatback heater (if equipped)
  5. Seatback trim
  6. Seatback pad
  7. Seat cushion trim
  8. Seat cushion pad
  9. Seat cushion heater (if equipped)
  10.  Seat cushion support
  11. Seat cushion silencer
  12.  Seat harness
  13.  Occupant classification system harness
  14. Seat cushion outer finisher (LH)
  15.  Seat cushion inner finisher (LH)
  16.  Occupant classification system control unit
  17. Occupant classification system control unit bracket
  18.  Wiring harness bracket
  19.  Seat cushion outer finisher
  20. Recline lever
  21.  Seat cushion inner finisher (RH)
  22.  Seat cushion rear finisher (RH)
  23.  Side air bag module (not serviceable)
  24.  Seat cushion frame
  25.  Seat belt buckle
  26.  Seat cushion rear finisher (LH)
  27.  Seatback frame
  28.  Seatback bracket (LH)
  29. Seatback bracket (RH)
  30. Headrest holder (free)
  31.  Headrest holder (locking)

PASSENGER SIDE : Removal and Installation

REMOVAL

WARNING: Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.

CAUTION:

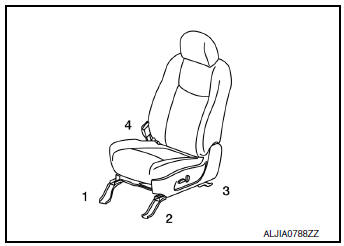

  1.  Slide the seat to the full rearward position.
  2.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
  3.  Disconnect harness connector from side air bag module.
  4.  Remove front bolts.
  5.  Connect negative and positive battery terminals, then slide the seat to the full forward position. Refer to PG-77, "Removal and Installation" (power seat only).
  6.  Slide the seat to the full forward position.
  7.  Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to PG-77, "Removal and Installation" (power seat only).
  8.  Remove rear bolts.
  9.  Tilt the seat rearward and disconnect the harness connectors from the seat.

    NOTE: Take note of harness routing and attachment locations for correct installation.

  10.  Remove the seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

WARNING:

CAUTION: Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

Installation

Removal and installation
...

Second row seats
