Nissan Rogue Service Manual: DTC/circuit diagnosis

U1000 CAN COMM CIRCUIT

Description

Refer to LAN-8, "System Description".

DTC Logic

DTC DETECTION LOGIC

NOTE: U1000 can be set if a module harness was disconnected and reconnected, perhaps during a repair. Confirm that there are actual CAN diagnostic symptoms and a present DTC by performing the Self Diagnostic Result procedure

CONSULT Display

DTC Detection Condition

Possible cause

CAN COMM CIRCUIT [U1000] When any listed module cannot communicate with CAN communication signal continuously for 2 seconds or more with ignition switch ON. In CAN communication system, any item (or items) of the following listed below is malfunctioning.
  •  Transmission
  •  Receiving (ECM)
  •  Receiving (VDC/TCS/ABS)
  •  Receiving (METER/M&A)
  •  Receiving (TCM)
  •  Receiving (IPDM E/R)

Diagnosis Procedure

1. PERFORM SELF DIAGNOSTIC

  1.  Turn ignition switch ON and wait for 2 second or more.
  2.  Check “SELF- DIAG RESULTS”.

Is “CAN COMM CIRCUIT” displayed? YES >> Perform CAN Diagnosis as described in DIAGNOSIS section of CONSULT Operation Manual.

NO >> Refer to GI-41, "Intermittent Incident".

U1010 CONTROL UNIT (CAN)

DTC Logic

DTC DETECTION LOGIC

CONSULT Display

DTC Detection Condition

Possible Cause

CAN COMM CIRCUIT [U1010] CAN COMM CIRCUIT [U1010] BCM

Diagnosis Procedure

1. REPLACE BCM

When DTC U1010 is detected, replace BCM.

>> Replace BCM. Refer to BCS-135, "Removal and Installation".

POWER SUPPLY AND GROUND CIRCUIT

BCM

BCM : Diagnosis Procedure

Regarding Wiring Diagram information, refer to BCS-110, "Wiring Diagram".

1. CHECK FUSE

Check that the following fuse is not blown.

Check fuse

Is the fuse blown? YES >> Replace the blown fuse after repairing the affected circuit.

NO >> GO TO 2.

2. CHECK POWER SUPPLY CIRCUIT

  1.  Disconnect BCM connector M20.
  2.  Check voltage between BCM connector M20 and ground.

Check power supply circuit

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness or connectors.

3. CHECK GROUND CIRCUIT

Check continuity between BCM connector M20 and ground.

Check ground circuit

Is the inspection result normal? YES >> Inspection End.

NO >> Repair or replace harness or connectors.

DOOR SWITCH

Description

Detects door open/close condition.

Component Function Check

1.CHECK FUNCTION

  1.  Select "DOOR LOCK" of BCM using CONSULT.

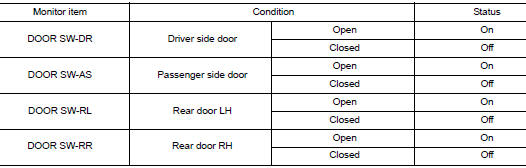

  2.  Select "DOOR SW-DR", "DOOR SW-AS", "DOOR SW-RL", "DOOR SW-RR", in Data Monitor mode.
  3.  Check that the function operates normally according to the following conditions.

Check function

Is the inspection result normal? YES >> Door switch is OK.

NO >> Refer to DLK-319, "Diagnosis Procedure".

Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK DOOR SWITCH INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect malfunctioning door switch connector.

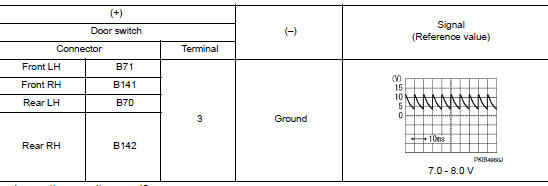

  3.  Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Check door switch input signal

Is the inspection result normal? YES >> GO TO 3.

NO >> GO TO 2.

2.CHECK DOOR SWITCH CIRCUIT

  1.  Disconnect BCM connector.

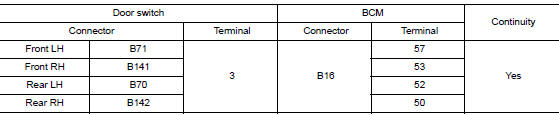

  2. Check continuity between door switch harness connector and BCM harness connector.

Check door switch circuit

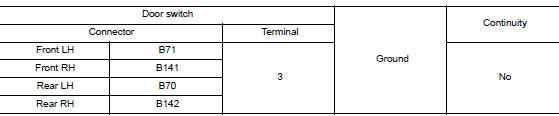

  1. Check continuity between door switch harness connector and ground.

Check door switch circuit

Is the inspection result normal? YES >> Replace BCM. Refer to BCS-135, "Removal and Installation".

NO >> Repair or replace harness.

3.CHECK DOOR SWITCH

Refer to DLK-150, "Component Inspection".

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace malfunctioning door switch. Refer to DLK-385, "Removal and Installation".

4.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

Component Inspection

1.CHECK DOOR SWITCH

  1.  Turn ignition switch OFF.
  2.  Disconnect door switch connector.
  3.  Check door switch.

Check door switch

Is the inspection result normal? YES >> Inspection End.

NO >> Replace malfunctioning door switch. Refer to DLK-385, "Removal and Installation".

DOOR LOCK AND UNLOCK SWITCH

DRIVER SIDE

DRIVER SIDE : Description

Transmits door lock/unlock operation to BCM.

DRIVER SIDE : Component Function Check

1.CHECK FUNCTION

With CONSULT

Check "CDL LOCK SW", "CDL UNLOCK SW" in Data Monitor mode with CONSULT.

Check function

Is the inspection result normal? YES >> Door lock and unlock switch is OK.

NO >> Refer to DLK-321, "DRIVER SIDE : Diagnosis Procedure".

DRIVER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

  1.  Turn ignition switch ON.
  2.  Check voltage at the main power window and door lock/unlock switch connector when the switch (driver side) is turned to “LOCK” or “UNLOCK”.

Check power window switch output signal

Is the inspection result normal? YES >> GO TO 5.

NO >> GO TO 2.

2.CHECK POWER WINDOW SWITCH GROUND

  1.  Turn ignition switch OFF.
  2.  Disconnect main power window and door lock/unlock switch connector.
  3.  Check continuity between main power window and door lock/unlock switch connector and ground.

Check power window switch ground

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK POWER WINDOW SWITCH

Check continuity between main power window and door lock/unlock switch terminals.

Check power window switch

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace main power window and door lock/unlock switch. Refer to PWC-64, "Removal and Installation".

4.CHECK POWER WINDOW SWITCH CIRCUITS

  1.  Disconnect BCM connector.
  2.  Check continuity between BCM connector and main power window and door lock/unlock switch connector.

Check power window switch circuits

  1. Check continuity between BCM connector and ground.

Check power window switch circuits

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace harness.

5.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

PASSENGER SIDE

PASSENGER SIDE : Description

Transmits door lock/unlock operation to BCM.

PASSENGER SIDE : Component Function Check

1.CHECK FUNCTION

With CONSULT

Check "CDL LOCK SW", "CDL UNLOCK SW" in Data Monitor mode with CONSULT.

Check function

Check function

Is the inspection result normal? YES >> Door lock and unlock switch is OK.

NO >> Refer to DLK-323, "PASSENGER SIDE : Diagnosis Procedure".

PASSENGER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

  1.  Turn ignition switch ON.
  2.  Check voltage at the front power window and door lock/unlock switch RH connector when the switch (passenger side) is changed to “LOCK” or “UNLOCK”.

Check power window switch output signal

Is the inspection result normal? YES >> GO TO 5.

NO >> GO TO 2.

2.CHECK POWER WINDOW SWITCH GROUND

  1.  Turn ignition switch OFF.
  2.  Disconnect front power window and door lock/unlock switch RH connector.
  3.  Check continuity between front power window and door lock/unlock switch RH connector and ground.

Check power window switch ground

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK POWER WINDOW SWITCH

Check continuity between front power window and door lock/unlock switch RH terminals.

Check power window switch

Is the inspection result normal? YES >> GO TO 4.

NO >> Replace front power window and door lock/unlock switch RH. Refer to PWC-65, "Removal and Installation".

4.CHECK POWER WINDOW SWITCH CIRCUITS

  1.  Disconnect BCM connector.
  2. Check continuity between BCM connector and front power window and door lock/unlock switch RH connector.

Check power window switch circuits

  1. Check continuity between BCM connector and ground.

Check power window switch circuits

Is the inspection result normal? YES >> GO TO 5.

NO >> Repair or replace harness.

5.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

DOOR KEY CYLINDER SWITCH

Description

When the mechanical key is inserted and turned into the front door lock key cylinder switch LH, the switch transmits the LOCK or UNLOCK signal directly to the BCM.

Component Function Check

1.CHECK FUNCTION

  1.  Select DOOR LOCK of BCM using CONSULT.
  2.  Select "KEY CYL LK-SW", "KEY CYL UN-SW" in Data Monitor mode.
  3.  Check that the function operates normally according to the following conditions.

Check function

Is the inspection result normal? YES >> Door key cylinder switch is OK.

NO >> Refer to DLK-325, "Diagnosis Procedure".

Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK DOOR KEY CYLINDER SWITCH INPUT SIGNAL

  1.  Turn ignition switch ON.

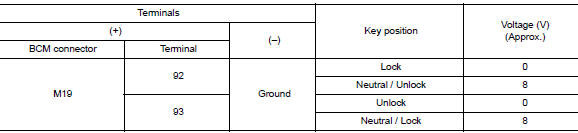

  2.  Check voltage between BCM connector and ground.

Check door key cylinder switch input signal

Is the inspection result normal? YES >> Front door lock key cylinder switch LH is OK.

NO >> GO TO 2.

2.CHECK DOOR KEY CYLINDER SWITCH GROUND CIRCUIT

  1.  Turn ignition switch OFF.
  2.  Disconnect front door lock key assembly LH connector.
  3.  Check continuity between front door lock assembly LH connector and ground.

Check door key cylinder switch ground circuit

Is the inspection result normal?

YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK DOOR KEY CYLINDER SIGNAL CIRCUIT

  1.  Disconnect BCM connector M18.
  2.  Check continuity between front door lock assembly LH connector and BCM connector M18.

Check door key cylinder signal circuit

  1. Check continuity between front door lock assembly LH connector and ground.

Check door key cylinder signal circuit

Is the inspection result normal? YES >> GO TO 4.

NO >> Repair or replace harness.

4.CHECK DOOR KEY CYLINDER SWITCH

Check door key cylinder switch.

Refer to DLK-326, "Component Inspection".

Is the inspection result normal? YES >> Check intermittent incident. Refer to GI-41, "Intermittent Incident".

NO >> Replace front door lock assembly LH. Refer to DLK-373, "DOOR LOCK : Removal and Installation".

Component Inspection

COMPONENT INSPECTION

1.CHECK DOOR KEY CYLINDER SWITCH

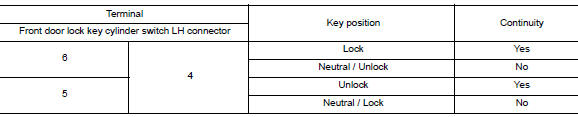

Check front door lock key cylinder switch LH.

Check door key cylinder switch

Is the inspection result normal? YES >> Key cylinder switch is OK.

NO >> Replace front door lock assembly LH. Refer to DLK-373, "DOOR LOCK : Removal and Installation".

KEY SWITCH (BCM INPUT)

Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK KEY SWITCH INPUT SIGNAL

With CONSULT

Check key switch "KEY SW" in "Data Monitor" mode with CONSULT. Refer to BCS-87, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)".

KEY SW : ON

KEY SW : OFF

Without CONSULT

Check voltage between BCM connector M18 terminal 37 and ground.

Check key switch input signal

Is the inspection result normal? YES >> Key switch (insert) circuit is OK.

NO >> GO TO 2.

2.CHECK KEY SWITCH (INSERT)

  1.  Turn ignition switch OFF.
  2.  Disconnect key switch connector.
  3.  Check continuity between key switch terminals.

Check key switch (insert)

Is the inspection result normal? YES >> Repair or replace harness or fuse.

NO >> Replace key switch.

DOOR LOCK ACTUATOR

DRIVER SIDE

DRIVER SIDE : Component Function Check

1.CHECK FUNCTION

  1.  Select "DOOR LOCK" of BCM using CONSULT.
  2.  Select "DOOR LOCK" in Active Test mode.
  3.  Touch ""ALL LOCK" or "ALL UNLK" to check that it works normally.

Is the inspection result normal? YES >> Door lock actuator is OK.

NO >> Refer to DLK-328, "DRIVER SIDE : Diagnosis Procedure".

DRIVER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect front door lock assembly LH connector.

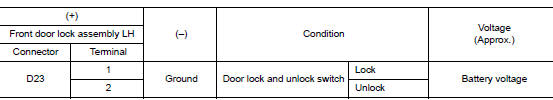

  3.  Check voltage between front door lock assembly LH harness connector and ground.

Check door lock actuator input signal

Is the inspection result normal? YES >> Replace front door lock assembly LH. Refer to DLK-373, "DOOR LOCK : Removal and Installation".

NO >> GO TO 2.

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1.  Disconnect BCM, all door lock actuator connectors.
  2.  Check continuity between BCM harness connector and front door lock assembly LH harness connector.

Check door lock actuator circuit

  1. Check continuity between BCM harness connector and ground.

Check door lock actuator circuit

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK BCM OUTPUT SIGNAL

  1. Connect BCM connector.
  2. Check voltage between BCM harness connector and ground.

Check bcm output signal

Is the inspection result normal? YES >> Replace front door lock assembly LH. Refer to DLK-373, "DOOR LOCK : Removal and Installation".

NO >> Replace BCM. Refer to BCS-135, "Removal and Installation".

PASSENGER SIDE

PASSENGER SIDE : Component Function Check

1.CHECK FUNCTION

  1.  Select "DOOR LOCK" of BCM using CONSULT.
  2.  Select "DOOR LOCK" in Active Test mode.
  3.  Touch "ALL LOCK" or "ALL UNLK" to check that it works normally.

Is the inspection result normal? YES >> Door lock actuator is OK.

NO >> Refer to DLK-329, "PASSENGER SIDE : Diagnosis Procedure".

PASSENGER SIDE : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect front door lock actuator RH connector.
  3.  Check voltage between front door lock actuator RH harness connector and ground.

Check door lock actuator input signal

Is the inspection result normal? YES >> Replace front door lock actuator RH. Refer to DLK-373, "DOOR LOCK : Removal and Installation".

NO >> GO TO 2.

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1.  Disconnect BCM, all door lock actuator connectors.
  2.  Check continuity between BCM harness connector and front door lock actuator RH harness connector.

Check door lock actuator circuit

  1. Check door lock actuator circuit

Check door lock actuator circuit

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK BCM OUTPUT SIGNAL

  1.  Connect BCM connector.
  2.  Check voltage between BCM harness connector and ground.

Check bcm output signal

Is the inspection result normal? YES >> Replace front door lock actuator RH. Refer to DLK-373, "DOOR LOCK : Removal and Installation".

NO >> Replace BCM. Refer to BCS-135, "Removal and Installation".

REAR LH

REAR LH : Component Function Check

1.CHECK FUNCTION

  1.  Select "DOOR LOCK" of BCM using CONSULT.
  2.  Select "DOOR LOCK" in ACTIVE TEST mode.
  3.  Touch "ALL LOCK" or "ALL UNLK" to check that it works normally.

Is the inspection result normal? YES >> Door lock actuator is OK.

NO >> Refer to DLK-330, "REAR LH : Diagnosis Procedure".

REAR LH : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect rear door lock actuator LH connector.
  3.  Check voltage between rear door lock actuator LH harness connector and ground.

Check door lock actuator input signal

Is the inspection result normal? YES >> Replace rear door lock actuator LH. Refer to DLK-377, "DOOR LOCK : Removal and Installation".

NO >> GO TO 2.

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1.  Disconnect BCM, all door lock actuator connectors.
  2.  Check continuity between BCM harness connector and rear door lock actuator LH harness connector.

Check door lock actuator circuit

  1. Check continuity between BCM harness connector and ground.

Check door lock actuator circuit

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK BCM OUTPUT SIGNAL

  1.  Connect BCM connector.
  2.  Check voltage between BCM harness connector and ground.

Check bcm output signal

Is the inspection result normal? YES >> Replace rear door lock actuator LH. Refer to DLK-377, "DOOR LOCK : Removal and Installation".

NO >> Replace BCM. Refer to BCS-135, "Removal and Installation".

REAR RH

REAR RH : Component Function Check

1.CHECK FUNCTION

  1.  Select “DOOR LOCK” of “BCM” using CONSULT.
  2.  Select "DOOR LOCK" in Active Test mode.
  3.  Touch "ALL LOCK" or "ALL UNLK" to check that it works normally.

Is the inspection result normal? YES >> Door lock actuator is OK.

NO >> Refer to DLK-331, "REAR RH : Diagnosis Procedure".

REAR RH : Diagnosis Procedure

Regarding Wiring Diagram information, refer to DLK-293, "Wiring Diagram".

1.CHECK DOOR LOCK ACTUATOR INPUT SIGNAL

  1.  Turn ignition switch OFF.
  2.  Disconnect rear door lock actuator RH connector.
  3. Check voltage between rear door lock actuator RH harness connector and ground.

Check door lock actuator input signal

Is the inspection result normal? YES >> Replace rear door lock actuator RH. Refer to DLK-377, "DOOR LOCK : Removal and Installation".

NO >> GO TO 2.

2.CHECK DOOR LOCK ACTUATOR CIRCUIT

  1.  Disconnect BCM, all door lock actuator connectors.
  2.  Check continuity between BCM harness connector and rear door lock actuator RH harness connector.

Check door lock actuator circuit

  1. Check continuity between BCM harness connector and ground.

Check door lock actuator circuit

Is the inspection result normal? YES >> GO TO 3.

NO >> Repair or replace harness.

3.CHECK BCM OUTPUT SIGNAL

  1.  Connect BCM connector.
  2.  Check voltage between BCM harness connector and ground.

Check bcm output signal

Is the inspection result normal? YES >> Replace rear door lock actuator RH. Refer to DLK-377, "DOOR LOCK : Removal and Installation".

NO >> Replace BCM. Refer to BCS-135, "Removal and Installation".

KEYFOB BATTERY AND FUNCTION

Description

The following functions are available when having and carrying the keyfob.

Remote control entry function and panic alarm function are available when operating the remote buttons.

Component Function Check

NOTE: The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

1.CHECK FUNCTION

With CONSULT

Check remote keyless entry receiver KEYLESS LOCK, KEYLESS UNLOCK, and KEYLESS PANIC in Data Monitor mode with CONSULT.

Check function

Is the inspection result normal? YES >> Keyfob is OK.

NO >> Refer to DLK-333, "Diagnosis Procedure".

Diagnosis Procedure

NOTE: The Signal Tech II Tool [- (J-50190)] can be used to perform the following functions. Refer to the Signal Tech II User Guide for additional information.

1.CHECK KEYFOB FUNCTION

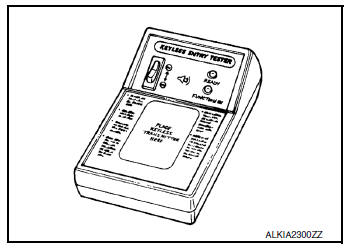

Check keyfob function using Signal Tech II Tool J-50190 or Remote Keyless Entry Tester J-43241 (shown).

Does the test pass? YES >> Keyfob is OK.

NO >> GO TO 2.

Check keyfob function

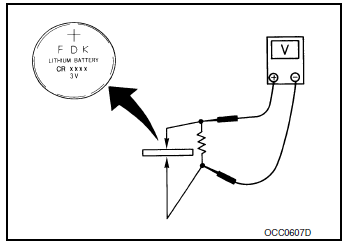

2.CHECK KEYFOB BATTERY

Check by connecting a resistance (approximately 300Ω) so that the current value becomes about 10 mA.

Standard : Approx. 2.5 - 3.0V

Check keyfob battery

Is the measurement value within specification? YES >> Keyfob battery is OK.

NO >> GO TO 3.

3. REPLACE KEYFOB BATTERY

  1.  Replace the keyfob battery with a new one (CR2032 or equivalent).

CAUTION:

  1.  Align the tips of the upper and lower parts, and then push them together until it is securely closed.
  2. After replacing the battery, check that all keyfob functions work properly.

Is the inspection result normal? YES >> Keyfob is OK.

NO >> Check BCM.

HORN FUNCTION

Component Function Check

1.CHECK FUNCTION 1

  1.  Perform "SIREN" in Active Test mode of "THEFT ALM" of BCM using CONSULT.
  2. Check the horn operation.

Check function 1

Is the operation normal? YES >> Inspection End.

NO >> Go to HRN-3, "Wiring Diagram".

Component Inspection

1.CHECK ANTI-THEFT HORN RELAY

  1.  Turn ignition switch OFF.
  2.  Disconnect anti-theft horn relay.
  3.  Check voltage between anti-theft horn relay terminal and ground under the following conditions.

Check anti-theft horn relay

Is the inspection result normal? YES >> Inspection End.

NO >> Replace anti-theft horn relay.

WARNING CHIME FUNCTION

Description

Performs operation method guide and warning with buzzer.

Component Function Check

1.CHECK FUNCTION

With CONSULT

  1.  Check the operation with “BUZZER” in the "Active Test".
  2.  Touch “IGN KEY WARN ALM”, “SEAT BELT WARN TEST”or “LIGHT WARN ALM”on screen.

Is the inspection result normal? YES >> Warning buzzer into combination meter is OK.

NO >> Refer to DLK-336, "Diagnosis Procedure".

Diagnosis Procedure

1.CHECK METER BUZZER CIRCUIT

Operate the hazard lights by turning ON the hazard warning switch.

Is the inspection result normal? YES >> GO TO 2.

NO >> Replace combination meter. Refer to MWI-82, "Removal and Installation".

2.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

HAZARD FUNCTION

Description

Perform answer-back for each operation with number of blinks.

Component Function Check

1.CHECK FUNCTION

Check hazard warning lamp “FLASHER” in "Active Test".

Is the inspection result normal? YES >> Hazard warning lamp circuit is OK.

NO >> Refer to DLK-337, "Diagnosis Procedure".

Diagnosis Procedure

1.CHECK HAZARD SWITCH CIRCUIT

Operate the hazard lights by turning ON the hazard warning switch.

Is the inspection result normal? YES >> GO TO 2.

NO >> Repair or replace hazard warning switch circuit. Refer to EXL-125, "Removal and Installation".

2.CHECK INTERMITTENT INCIDENT

Refer to GI-41, "Intermittent Incident".

>> Inspection End.

KEYFOB ID SET UP WITH CONSULT

ID Code Entry Procedure

KEYFOB ID SET UP WITH CONSULT

NOTE:

  1.  Turn ignition switch ON.
  2.  Select BCM.
  3.  Select MULTI REMOTE ENT.
  4.  Select WORK SUPPORT.
  5.  You can register, erase or confirm a keyfob ID code. To register a new code, select the following option and follow CONSULT instructions:

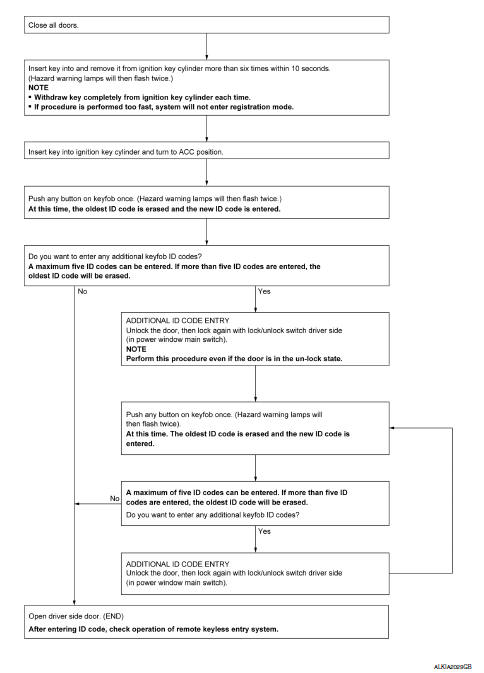

KEYFOB ID SET UP WITHOUT CONSULT

ID Code Entry Procedure

KEYFOB ID SET UP WITHOUT CONSULT

Keyfob id set up without consult

NOTE:

Basic inspection
DIAGNOSIS AND REPAIR WORKFLOW Work Flow OVERALL SEQUENCE DETAILED FLOW 1.GET INFORMATION FOR SYMPTOM Get the detailed information from the customer about the symptom (the condition and the ...

Symptom diagnosis
POWER DOOR LOCK SYSTEM SYMPTOMS Symptom Table DOOR LOCK/UNLOCK FUNCTION MALFUNCTION NOTE:  Before performing the diagnosis in the following table, check “WORK FLOW”. Refer to DLK-31 ...

Other materials:

Parking brake control
Exploded View Parking brake rear cable (RH) Parking brake rear cable (LH) Parking brake front cable  Parking brake control Adjusting nut Parking brake switch Removal and Installation REMOVAL  Remove instrument lower panel LH. Refer to IP-22, "Removal and ...

Diagnosis system (BCM) (with intelligent key system)
COMMON ITEM COMMON ITEM : CONSULT Function (BCM - COMMON ITEM) APPLICATION ITEM CONSULT performs the following functions via CAN communication with BCM. Direct Diagnostic Mode Description Ecu Identification The BCM part number is displayed. Self Diagnostic ...

Service data and specifications (SDS)
BODY ALIGNMENT Body Center Marks mark has been placed on each part of the body to indicate the vehicle center. When repairing parts damaged by an accident which might affect the vehicle frame (members, pillars, etc.), more accurate and effective repair will be possible by using these marks t ...

© 2014-2019 Copyright www.nirogue.com
