Nissan Rogue Service Manual: Wiring diagram

ENGINE CONTROL SYSTEM

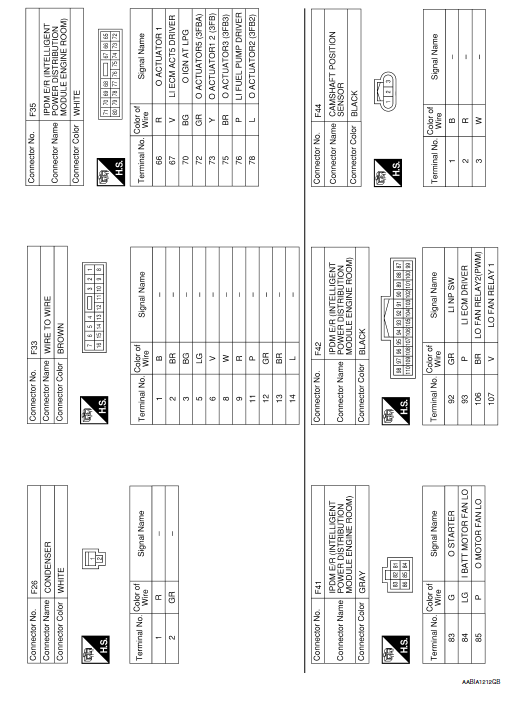

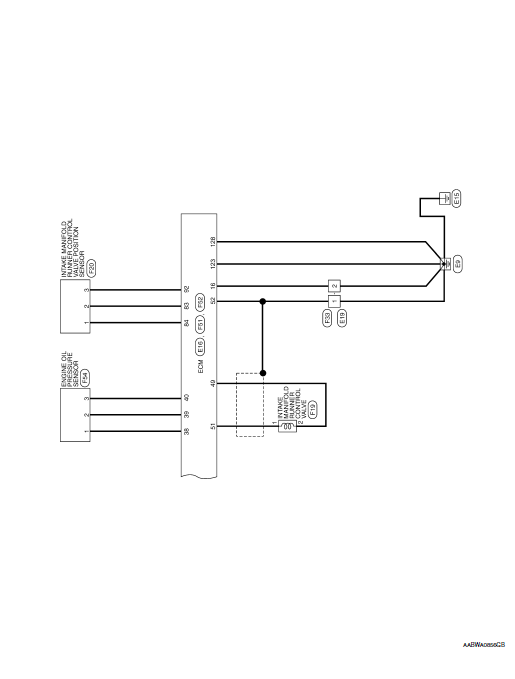

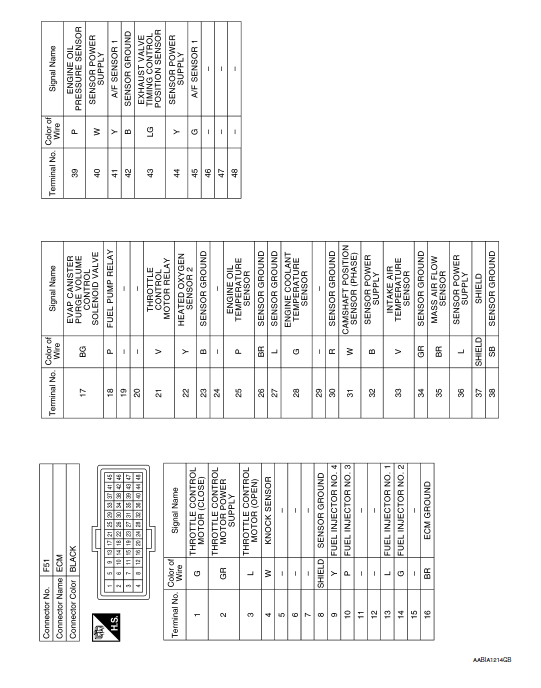

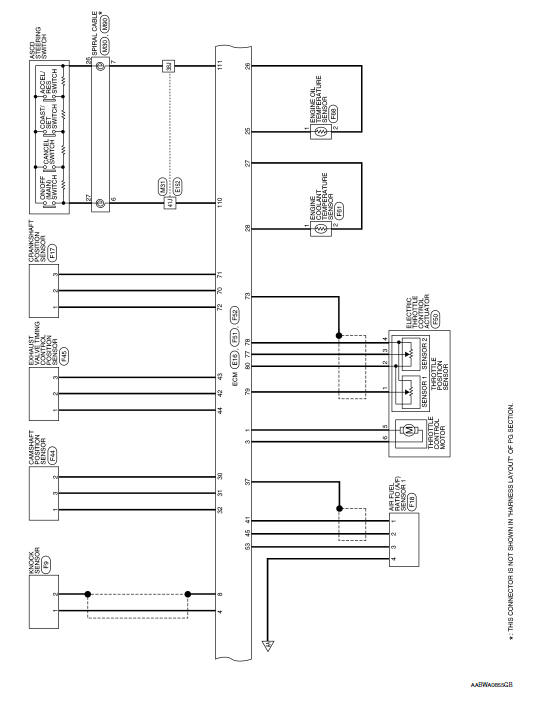

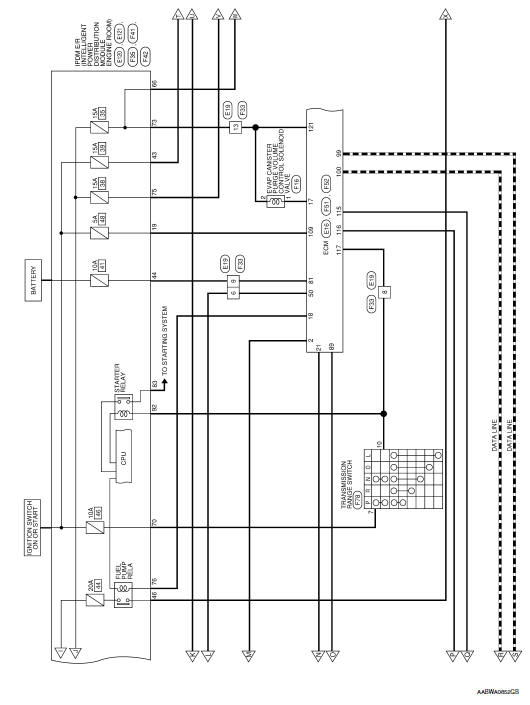

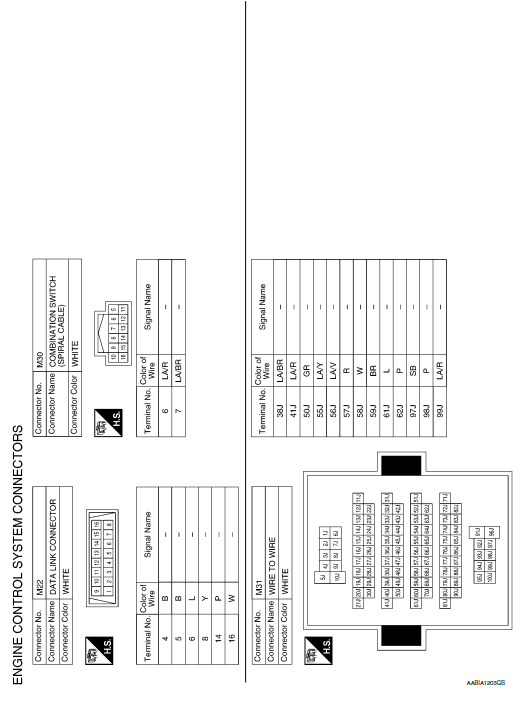

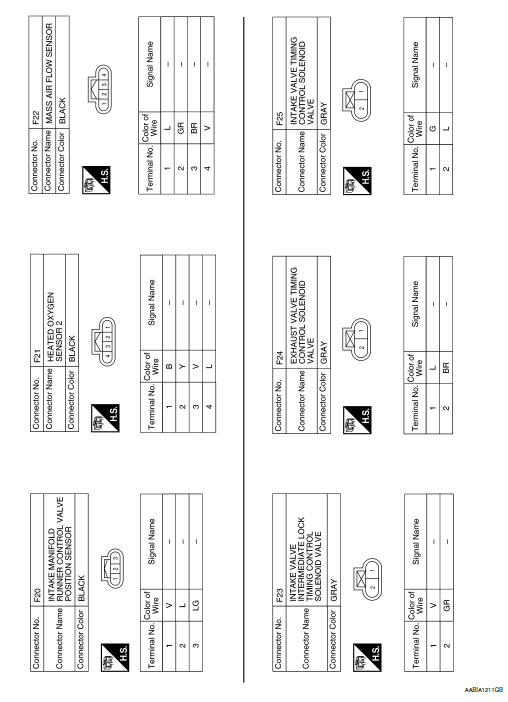

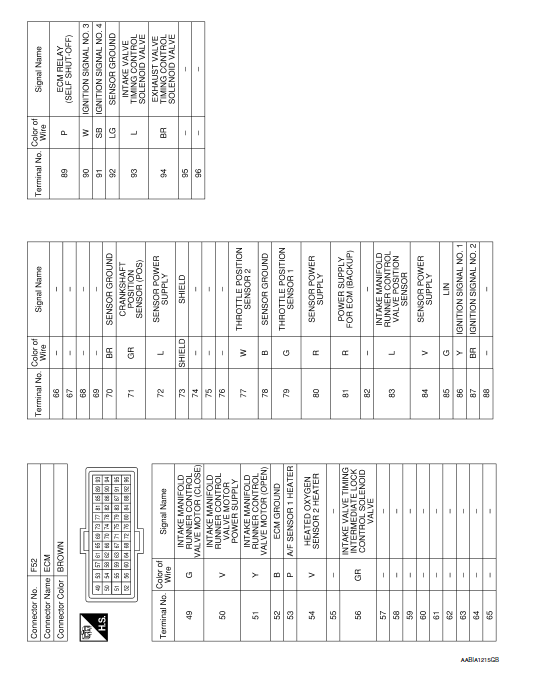

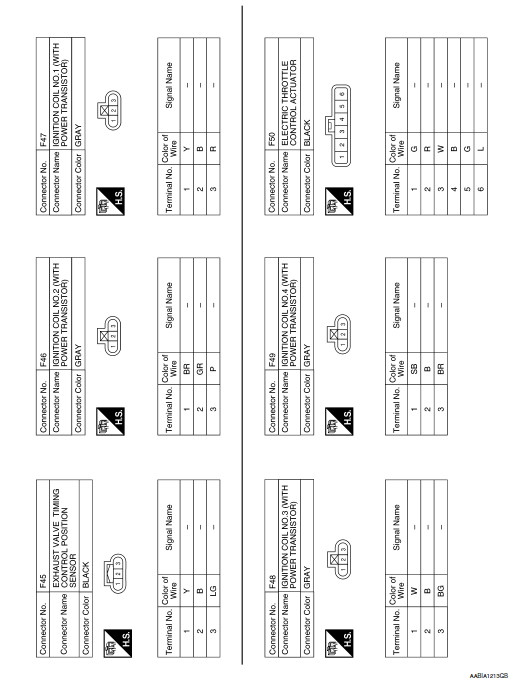

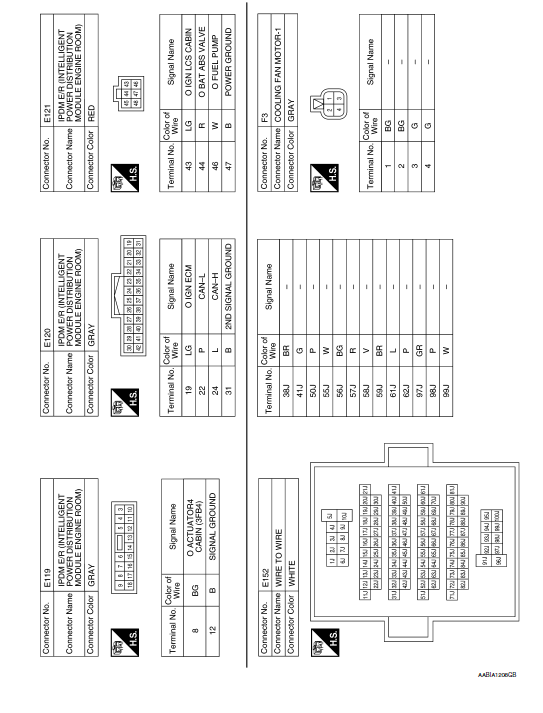

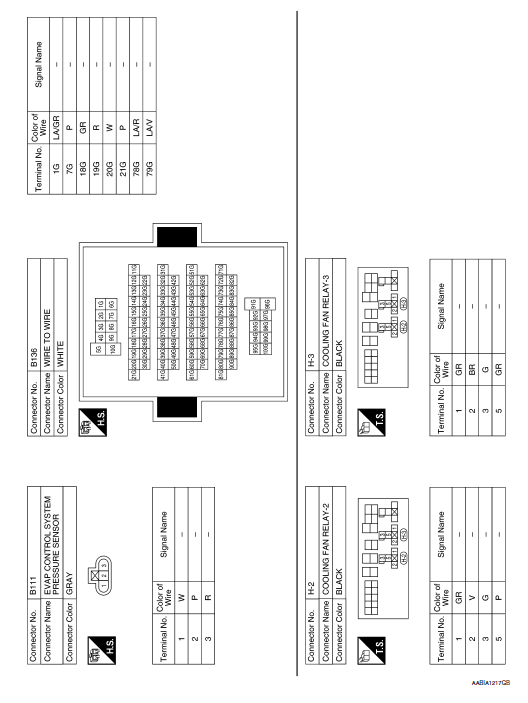

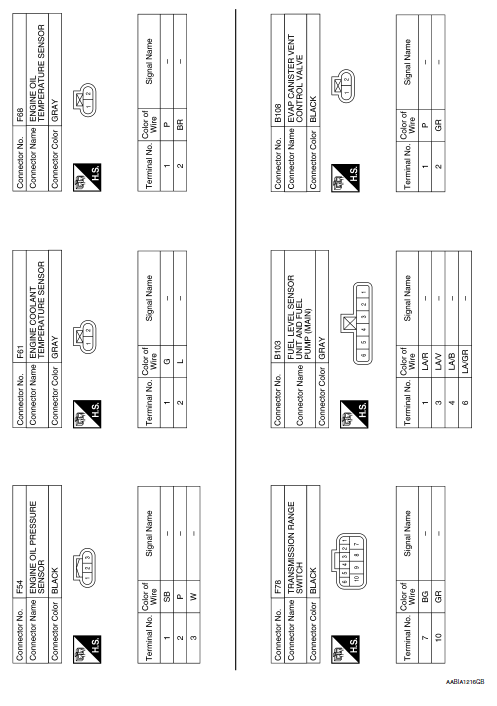

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Wiring Diagram

Ecu diagnosis information
ECM Reference Value VALUES ON THE DIAGNOSIS TOOL NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer t ...
