Nissan Rogue Service Manual: Diagnosis and repair workflow

Work Flow

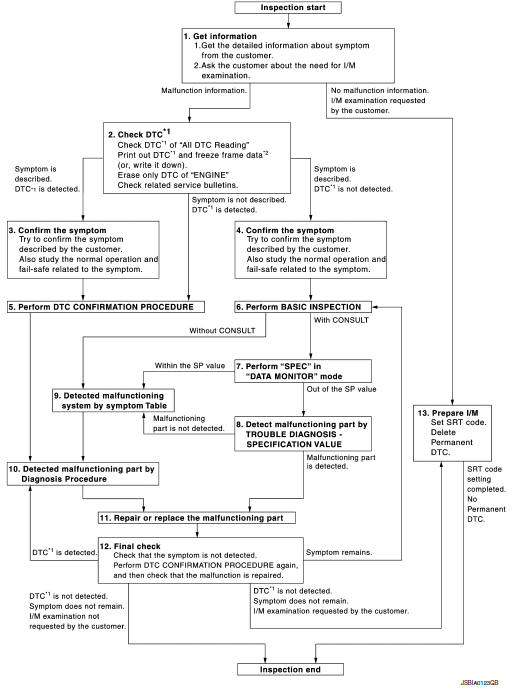

OVERALL SEQUENCE

Overall sequence

DETAILED FLOW

1.GET INFORMATION FOR SYMPTOM

  1. Get the detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to EC-130, "Diagnostic Work Sheet".)
  2.  Ask if the customer requests I/M examination.

Malfunction information, obtained>>GO TO 2.

No malfunction information, but a request for I/M examination>>GO TO 13.

2.CHECK DTC

  1.  Check DTC.
  2.  Perform the following procedure if DTC is displayed.
  1.  Check related service bulletins for information.

Are any symptoms described and any DTCs detected? Symptom is described, DTC is detected>>GO TO 3.

Symptom is described, DTC is not detected>>GO TO 4.

Symptom is not described, DTC is detected>>GO TO 5.

3.CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer (except MIL ON).

Also study the normal operation and fail-safe related to the symptom. Refer to EC-492, "Description" and EC- 89, "Fail Safe".

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

Also study the normal operation and fail-safe related to the symptom. Refer to Refer to EC-492, "Description" and EC-89, "Fail Safe".

Diagnosis Work Sheet is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the displayed DTC, and then check that DTC is detected again.

If two or more DTCs are detected, refer to EC-92, "DTC Inspection Priority Chart" and determine trouble diagnosis order.

NOTE:

Is DTC detected? YES >> GO TO 10.

NO >> Check according to GI-41, "Intermittent Incident".

6.PERFORM BASIC INSPECTION

Perform EC-132, "Work Procedure".

Do you have CONSULT? YES >> GO TO 7.

NO >> GO TO 9.

7.PERFORM SPEC IN DATA MONITOR MODE

With CONSULT

Check that “MASS AIR FLOW SENSOR (Hz)”, “B/FUEL SCHDL”, and “A/F ALPHA-B1” are within the SP value using “SPEC” in “DATA MONITOR” mode with CONSULT. Refer to EC-157, "Component Function Check".

Is the measurement value within the SP value? YES >> GO TO 9.

NO >> GO TO 8.

8.DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Detect malfunctioning part according to EC-158, "Diagnosis Procedure".

Is a malfunctioning part detected? YES >> GO TO 11.

NO >> GO TO 9.

9.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to EC-486, "Symptom Table" based on the confirmed symptom in step 4, and determine the trouble diagnosis order based on possible causes and symptoms.

>> GO TO 10.

10.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE

Inspect according to Diagnosis Procedure of the system.

NOTE: The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection is also required for the circuit check in the Diagnosis Procedure. For details, refer to GI-44, "Circuit Inspection". Is a malfunctioning part detected? YES >> GO TO 11.

NO >> Monitor input data from related sensors or check voltage of related ECM terminals using CONSULT.

Refer to EC-77, "Reference Value".

11.REPAIR OR REPLACE THE MALFUNCTIONING PART

  1.  Repair or replace the malfunctioning part.
  2.  Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replacement.
  3.  Check DTC. If DTC is displayed, erase it.

    >> GO TO 12.

12.FINAL CHECK

When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function Check again, and then check that the malfunction have been completely repaired.

When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that the symptom is not detected.

Is DTC detected and does symptom remain? YES-1 >> DTC is detected: GO TO 10.

YES-2 >> Symptom remains: GO TO 6.

NO-1 >> No request for I/M examination from the customer: Before returning the vehicle to the customer, always erase unnecessary DTC in ECM. If the completion of SRT is needed, drive vehicle under the specific driving pattern. Refer to EC-146, "SRT Set Driving Pattern".

NO-2 >> I/M examination, requested from the customer: GO TO 13.

13.PREPARE FOR I/M EXAMINATION

  1. Set SRT codes. Refer to EC-145, "Description".
  2.  Erase permanent DTCs. Refer to EC-151, "Description".

>> INSPECTION END

Diagnostic Work Sheet

DESCRIPTION

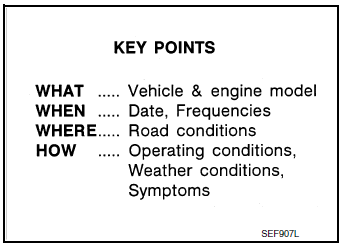

There are many operating conditions that lead to the malfunction of engine components. A good grasp of such conditions can make troubleshooting faster and more accurate.

In general, each customer feels differently about symptoms. It is important to fully understand the symptoms or conditions for a customer complaint.

Utilize a diagnostic worksheet like the WORKSHEET SAMPLE below in order to organize all the information for troubleshooting.

Some conditions may cause the MIL to illuminate or blink, and DTC to be detected. Examples:

Description

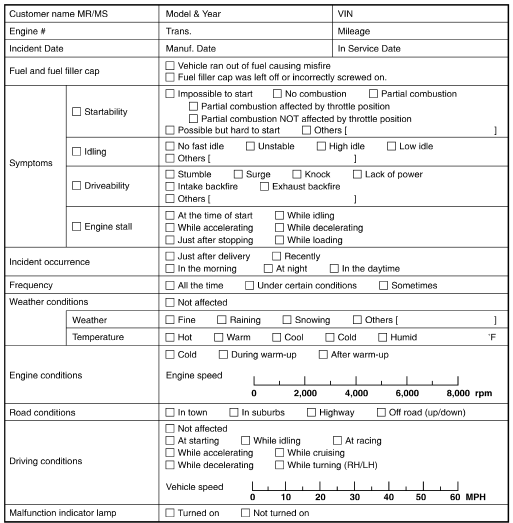

WORKSHEET SAMPLE

Worksheet sample

Basic inspection
...

Basic inspection
Work Procedure 1.INSPECTION START  Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.  Open engine ...
