Nissan Rogue Service Manual: Battery

How to Handle Battery

CAUTION:

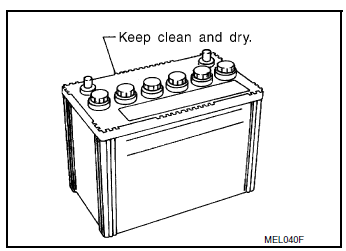

METHODS OF PREVENTING OVER-DISCHARGE

The following precautions must be taken to prevent over-discharging a battery.

Methods of preventing over-discharge

Methods of preventing over-discharge

Work Flow

BATTERY DIAGNOSIS WITH EXP-800 NI OR GR8-1200 NI

To diagnose and confirm the condition of the battery, use the following special service tools:

NOTE: Refer to the applicable Instruction Manual for proper battery diagnosis procedures.

BATTERY DIAGNOSIS WITHOUT EXP-800 NI OR GR8-1200 NI

Checking Electrolyte Level

WARNING: Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces. After touching a battery, never touch or rub your eyes until you have thoroughly washed your hands. If acid contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.

Failure to do this may cause personal injury or damage to clothing or the painted surfaces.

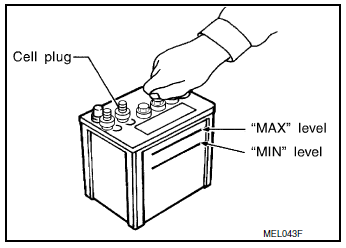

Checking Electrolyte Level

SULFATION

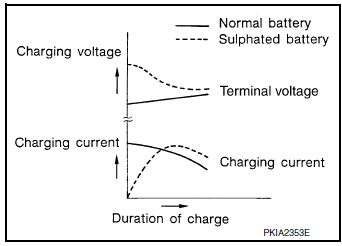

Sulfation

Specific Gravity Check

NOTE: Check the charge condition of the battery. Periodically check the specific gravity of the electrolyte. Keep a close check on charge condition to prevent over-discharge.

  1.  Read hydrometer and thermometer indications at eye level.
  2.  Use the chart below to correct your hydrometer reading according to electrolyte temperature.

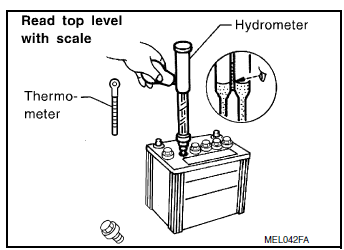

Specific Gravity Check

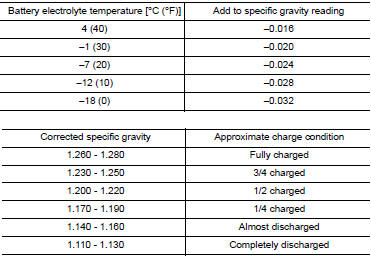

Hydrometer Temperature Correction

Hydrometer Temperature Correction

Hydrometer Temperature Correction

Charging The Battery

CAUTION:

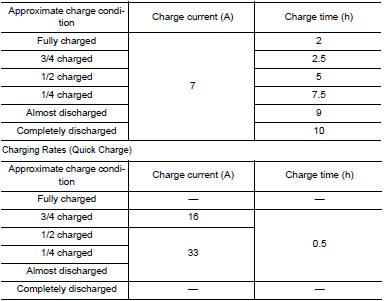

Charging Rates (Standard Charge)

Charging Rates (Standard Charge)

NOTE: The ammeter reading on your battery charger will automatically decrease as the battery charges. This indicates that the voltage of the battery is increasing normally as the state of charge improves. The charging amps indicated above refer to initial charge rate.

Basic inspection
...

Inspection and adjustment

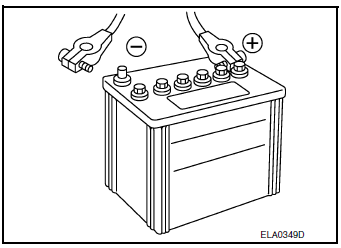

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement Required Procedure After Battery Disconnection ...
